Breakout Board for UBX100 Sub-GHz RF Transceiver

OM-UBX100-001
Active
Expansion Board

Roll over image to zoom in

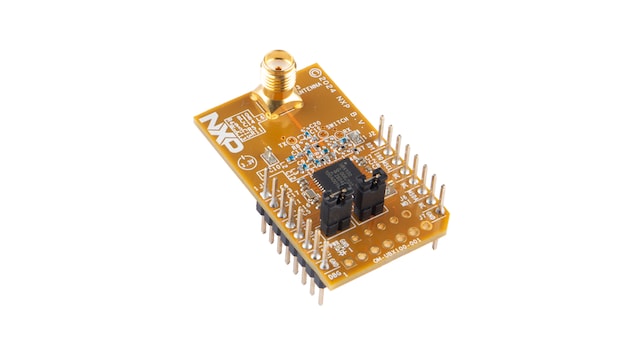

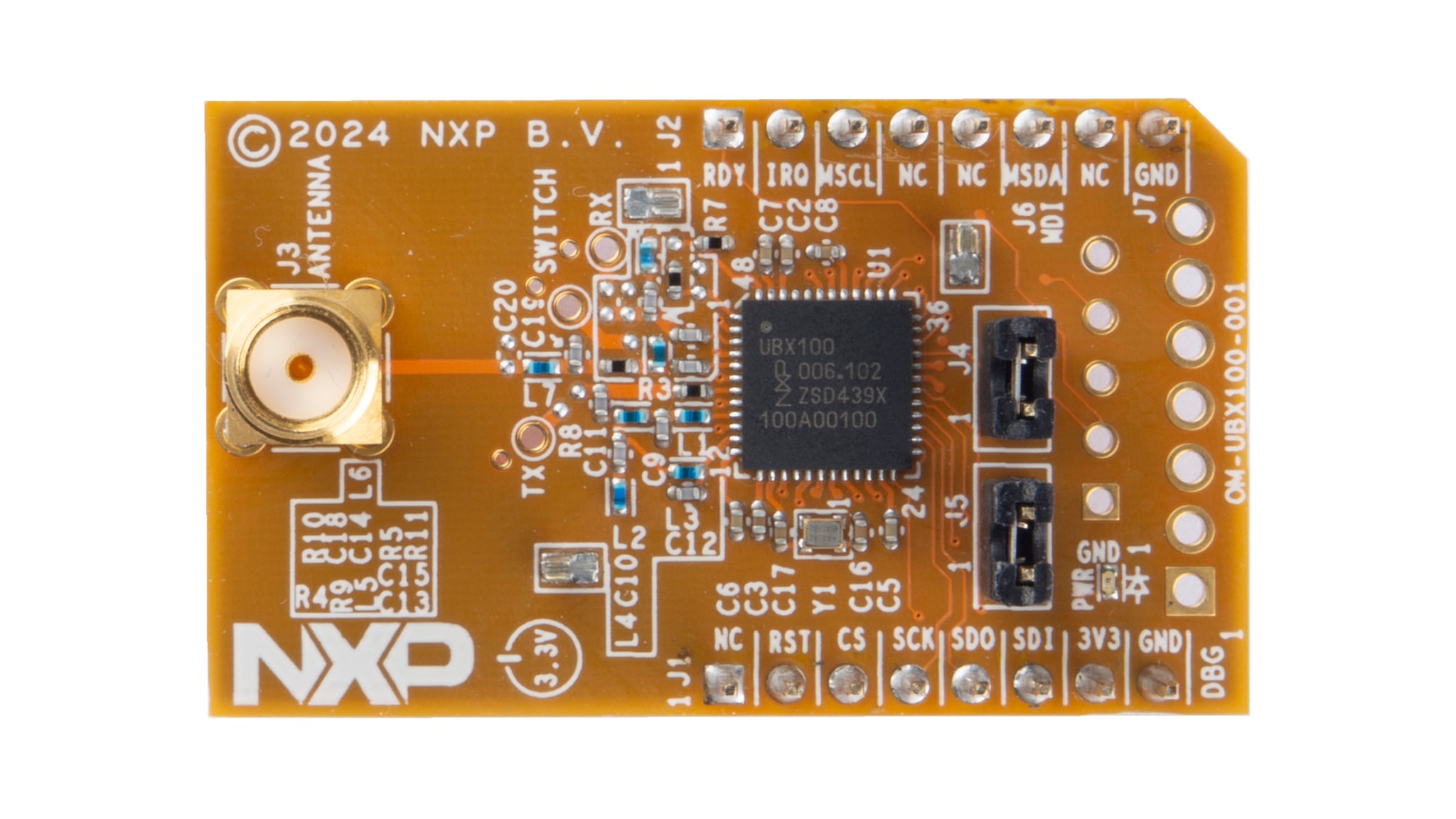

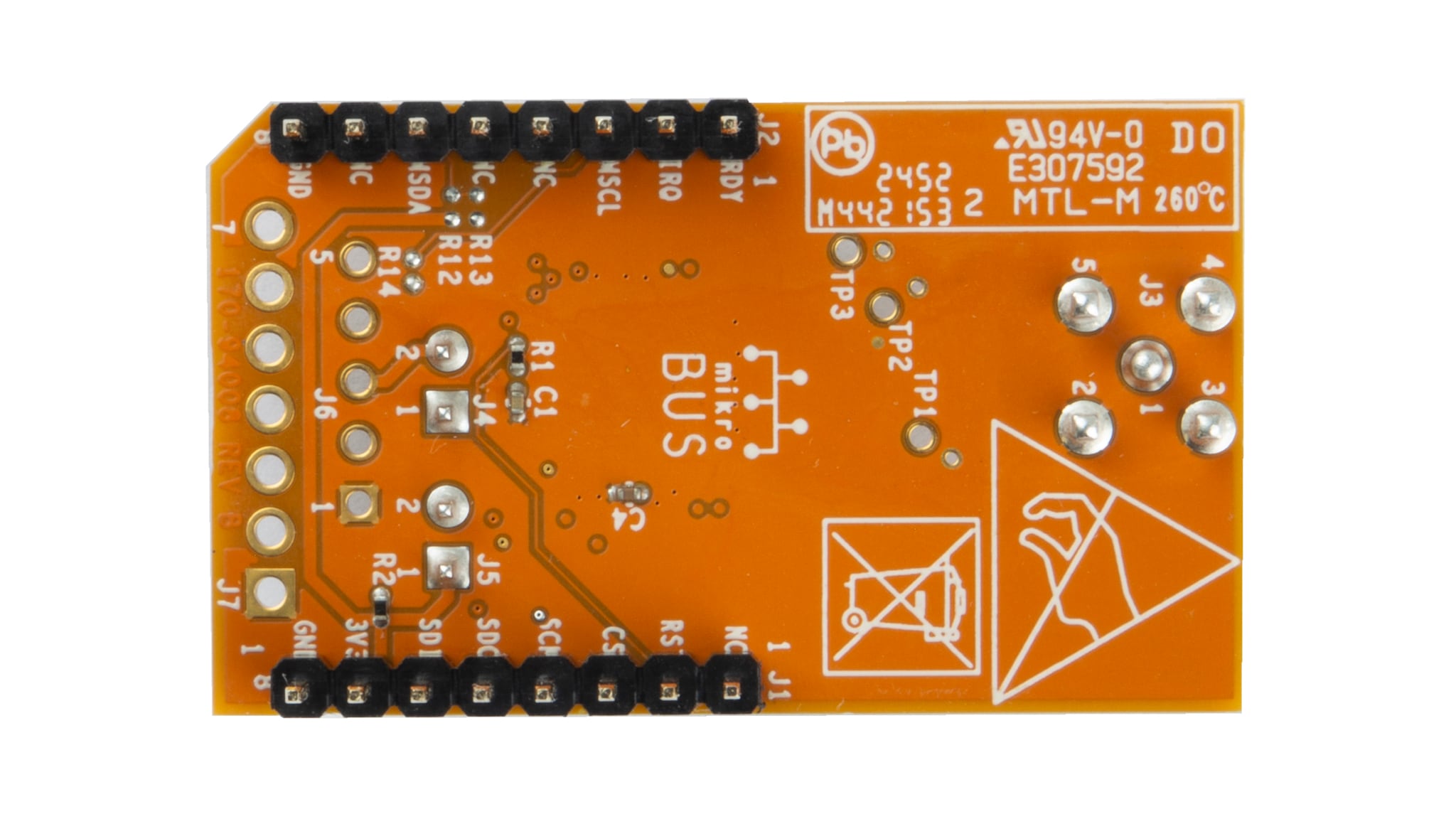

The OM-UBX100-001 is the development platform for NXP’s UBX100 Sub-GHz transceiver. UBX100 is a fully integrated single-chip sub-GHz radio transceiver for industrial use. UBX100 supports common industry standard protocols like Wireless M-Bus. The reduced form factor shows the basic hardware configuration for the application. It is compatible with FRDM MCX MCU boards as part of the FRDM ecosystem.

Block Diagram

OM-UBX100-001

OM-UBX100 Block Diagram
Get diagram PDF

Supported Devices

Wireless Connectivity

Sub-GHz ISM Bands

  • UBX100: UBX100 Sub-GHz Wireless M-Bus Solution

Processors and Microcontrollers

MCX A Series Microcontrollers

  • MCX-A13X-A14X-A15X: MCX A13, 14, 15 Essential MCUs with Arm® Cortex® M33, Low Power and Intelligent Peripherals

MCX N Series Microcontrollers

  • MCX-N94-N54-N53-N52-N24: MCX N94, N54, N53, N52 and N24 with Highly Integrated Low-power Dual Core Arm® Cortex®-M33 MCUs, with on-chip Accelerators and Advanced Security

Features

Key Features

  • Ready to use UBX100 evaluation board

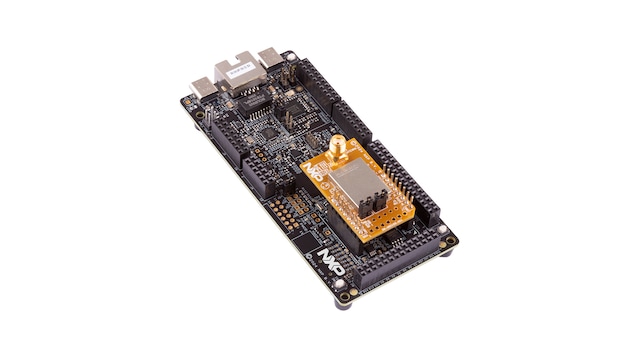

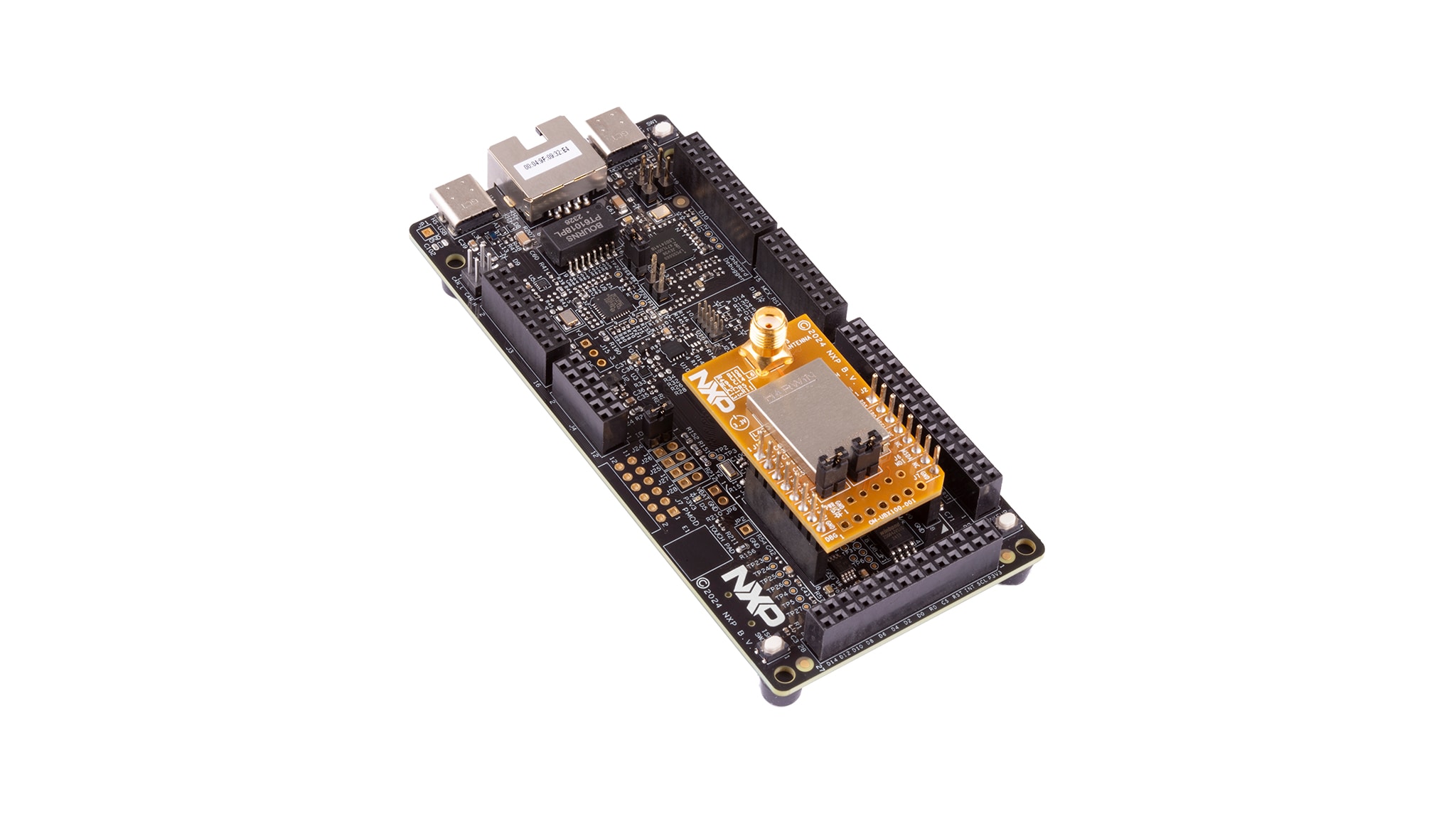

  • Compatible with FRDM-MCX boards as part of the FRDM ecosystem
  • MikroBUS addon format
  • Integrated bootloader for firmware updates

Connectivity

  • SPI interface (6-wire)
  • Current consumption header
  • Header for special purpose GPIO

RF

  • Wideband: 868 – 928 MHz
  • Power: ~14 dBm (Conducted)
  • ~35 mA TX, 14 mA RX, 700 nA deep sleep
  • Compliant with the Radio Equipment Directive 2024/53/EU
  • SMA connector (50 Ω point)

Buy Options

OM-UBX100-001-Image

Click to expand

OM-UBX100-001
Active

Breakout Board for UBX100 Sub-GHz RF Transceiver.

    $28.12 USD
    In Stock :50

    Normally ships 1-2 business days

    ADD TO CART
    Order from distributors

    Documentation

    Quick reference to our documentation types

    Filters

    3 documents

    Compact List

    Design Resources

    Select a section:

    Related Hardware

    Quick reference to our board types.
    Filters

    2 hardware offerings

    Design Files

    Quick reference to our design files types.
    Filters

    2 design files

    Software

    Quick reference to our software types.

    Filters

    3 software files

    • Application Example Software

      UBX100 Software Enablement

      MCUXPRESSORev 5.3.0Dec 10, 2025 14:03:00UBX100-SOFTWARE-ENABLEMENT
      Download
    • Evaluation Packages

      UBX100 FreeMASTER Evaluation GUI

      EXTERNALRev 2.0.0Dec 17, 2025 14:23:00UBX100-FREEMASTER-EVALUATION-GUI
      Download
    • Software Development Resources

      UBX100 SDK

      EXTERNALRev 5.3.0Dec 10, 2025 14:18:00UBX100-SDK
      Download
