FRDM Development Board for i.MX RT1186

FRDM-IMXRT1186 new

Roll over image to zoom in

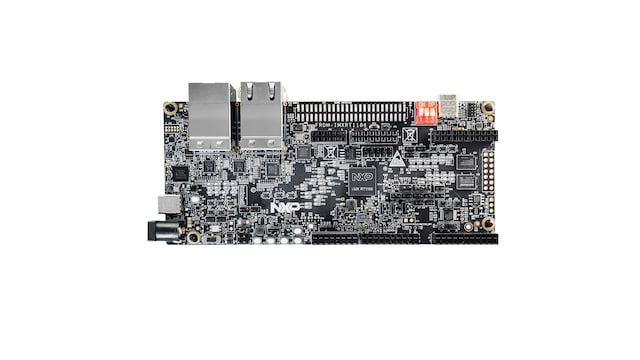

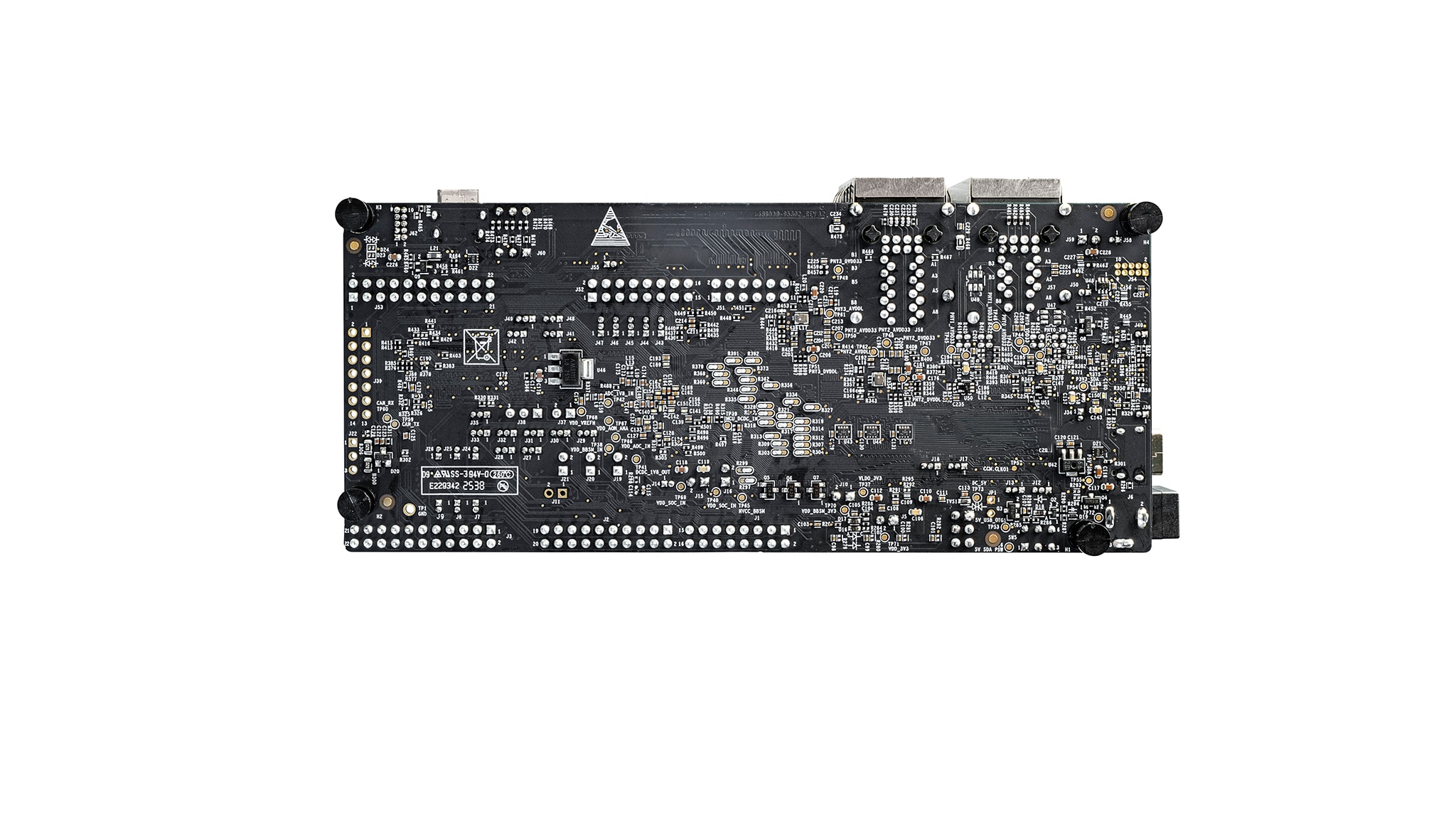

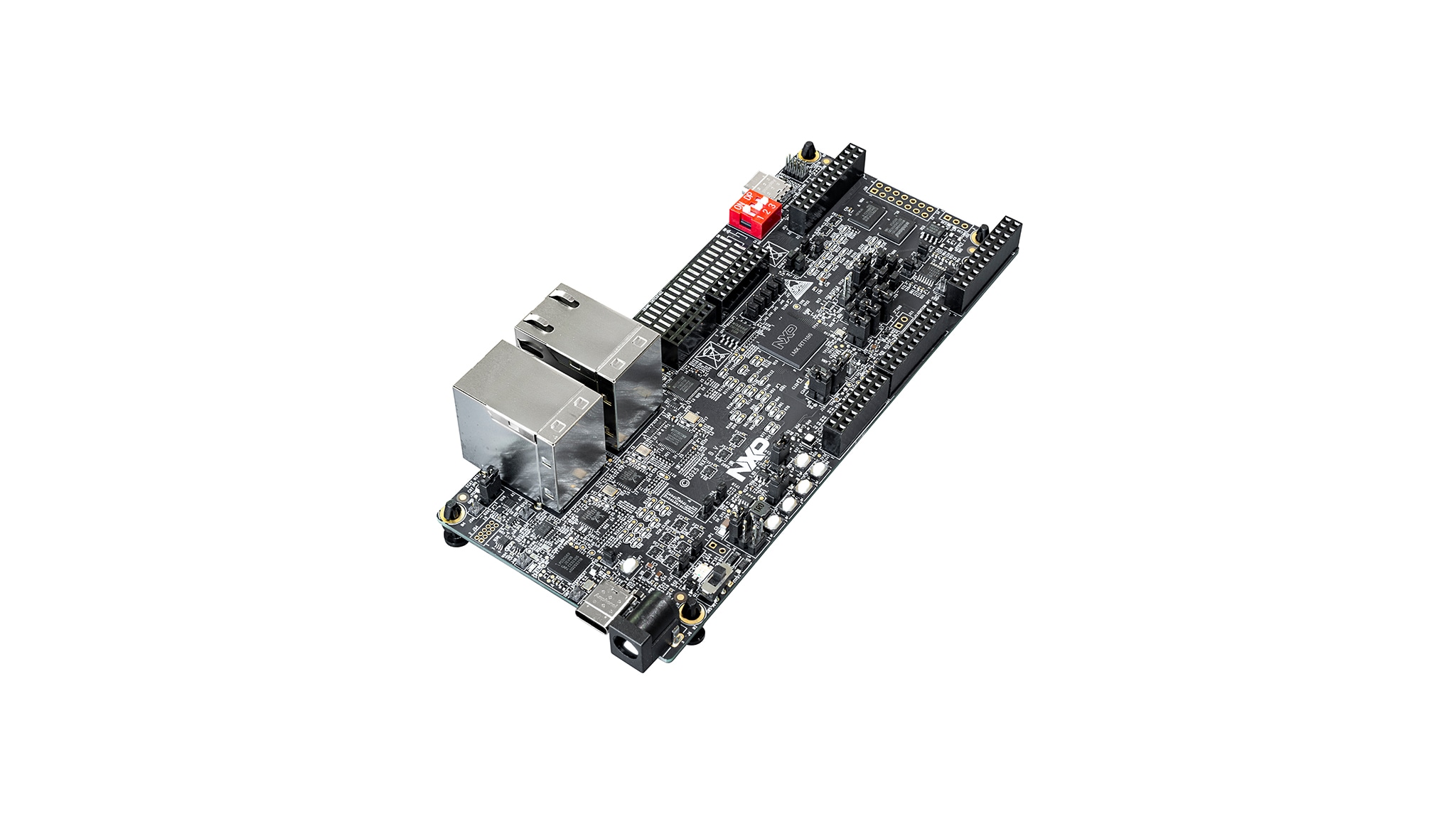

NXP FRDM-IMXRT1186 is a cost-effective development board based on NXP’s i.MX RT1186 crossover MCU, combining high performance with real-time capabilities. Easy I/O access supports expansion boards for fast prototyping and rapid evaluation of Programmable Logic Controllers, Remote IOs, motor control and other industrial automation applications. Expansion Board Hub for add-on boards and the Application Code Hub for software examples are available through the MCUXpresso Developer Experience.

Block Diagram

FRDM-IMXRT1186

FRDM-IMXRT1186 Block Diagram
Get diagram PDF

Supported Devices

Processors and Microcontrollers

i.MX RT Crossover MCUs

  • i.MX-RT1180: i.MX RT1180 Crossover MCU with TSN Switch and EdgeLock®

Features

Processor

  • MIMXRT1186CVJ8C
  • 800 MHz Arm Cortex-M7 core
  • 300 MHz Arm Cortex-M33 core

Board Memory

  • 256 Mbit HyperRAM memory
  • 512 Mbit HyperFlash
  • 128 Mbit QSPI Flash

Connectivity

  • 2x Ethernet (10/100/1000M) connectors for TSN switch
  • 2x Ethernet (10/100M) connectors for EtherCAT or TSN switch
  • 1x Type-C USB OTG connector
  • 1x CAN transceivers

Debug Capabilities

  • JTAG connector
  • On-board MCU-Link debugger

Expansion Connectors

  • ARDUINO® UNO R3 header
  • FRDM header
  • FlexSPI Follower header
  • SRAMC header
  • Motor header

Additional

  • MCUXpresso Software and Tools, including MCUXpresso SDK with FreeRTOS and Zephyr
  • IAR Embedded Workbench® IDE
  • Keil® IDE
  • All-in-one board design

Buy Options

FRDM-IMXRT1186-Image

Click to expand

FRDM-IMXRT1186
Active

FRDM Development Board for i.MX RT1186.

    $60.00 USD
    In Stock :21

    Normally ships 1-2 business days

    ADD TO CART
