Evaluation Kit for the i.MX 8M Mini Applications Processor

8MNANOLPD4-EVK Active

Roll over image to zoom in

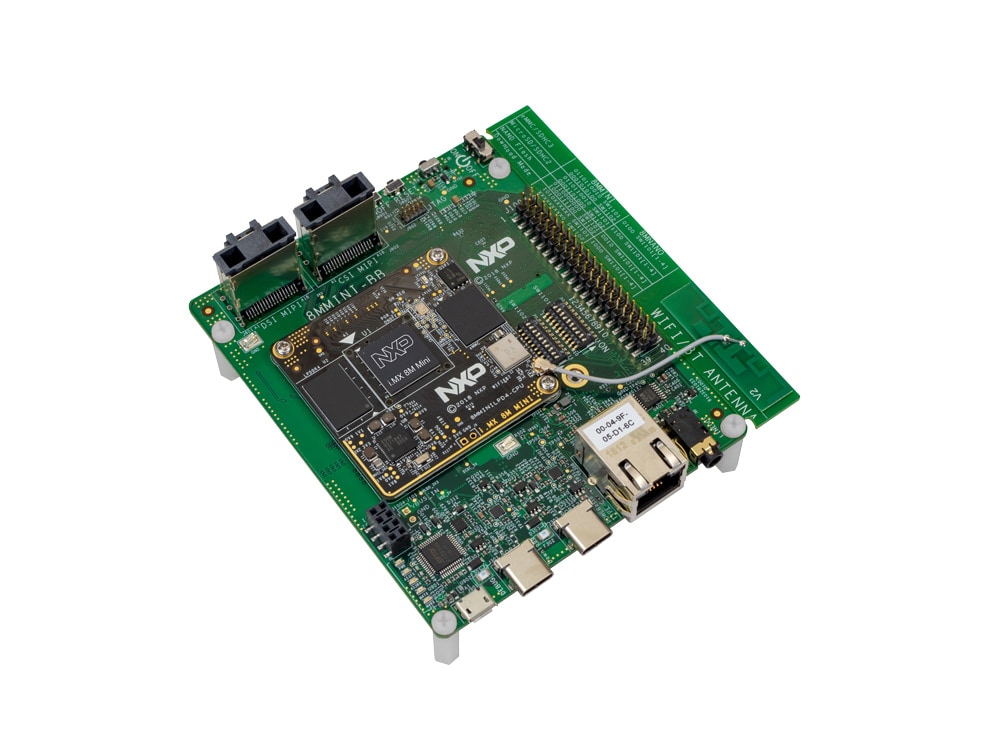

The i.MX 8M Mini EVK provides a platform for comprehensive evaluation of the i.MX 8M Mini and i.MX 8M Mini Lite applications processors. It delivers high performance with power efficiency, multimedia interfaces and Wi-Fi/BT for connectivity out-of-the-box.

The two-board solution consists of a compact 2”x2”compute module and a larger base board that brings out the broad connectivity that is needed for product evaluation. The compute module is a proven, compact reference to accelerate your own design.

Supported Devices

Processors and Microcontrollers

i.MX 8 Applications Processors

  • i.MX8MMINI: i.MX 8M Mini - Arm® Cortex®-A53, Cortex-M4, Audio, Voice, Video

Features

Processor

  • i.MX 8M Mini Quad applications processor
  • 4x Cortex-A53 @ 1.8 GHz
  • 1x Cortex-M4 @ 400 MHz

Memory

  • 32-bit LPDDR4 w/2 GB
  • eMMC 5.0/5.1 w/16 GB
  • SD/MMC connector
  • QSPI w/32 MB

Display Board Interface

  • MIPI-CSI Camera mini-SAS connector
  • MIPI-DSI Display mini-SAS connector

Wireless

  • MIMO 1x1 Wi-Fi 802.11a/b/g/n/ac and BT4.1
  • Onboard chip antenna
  • External antenna connector

Audio

  • Audio DAC 24-bit 192 kHz stereo
  • HP Jack 3.5 mm audio connector
  • Board expansion connector for audio interfaces

Connectivity

  • 10/100/1000 Ethernet
  • USB 3.0 Type C connector
  • PCIe M.2 interface

Debug

  • JTAG connector
  • UART via USB

Tools and OS support

  • Linux
  • Android
  • FreeRTOS

Buy Options

8MMINILPD4-EVK-Image

Click to expand

  • 8MMINILPD4-EVK
    Active

  • Evaluation Kit for the i.MX 8M Mini Applications Processor.

    • Kit Contains:

    • i.MX 8M Mini EVK Board with LPDDR4 memory
    • MIPI-DSI to HDMI Accessory Board
    • Power Supply
    • Mini-SAS cable
    • USB Type-C Cable
    • USB micro-B Cable
    • USB Type-C to A Adapter
    • Android BSP flashed in eMMC
    • Quick Start Guide
8MMINID4-EVK-Image

Click to expand

  • 8MMINID4-EVK
    Active

  • Evaluation Kit for the i.MX 8M Mini Applications Processor.

    • Kit Contains:

    • i.MX 8M Mini EVK Board with DDR4 memory
    • MIPI-DSI to HDMI Accessory Board
    • Power Supply
    • Mini-SAS cable
    • USB Type-C Cable
    • USB micro-B Cable
    • USB Type-C to A Adapter
    • Android BSP flashed in eMMC
    • Quick Start Guide
    Order from distributors
    IMX-MIPI-HDMI-Image

    Click to expand

    • $194.35 USD
    • For a quantity of 1
      • Availability: In Stock
      • Inventory: 6
      • Shipping: Normally ships 1-2 business days
    ADD TO CART
    Order from distributors
    MINISASTOCSI-Image

    Click to expand

    • $74.75 USD
    • For a quantity of 1
      • Availability: In Stock
      • Inventory: 12
      • Shipping: Normally ships 1-2 business days
    ADD TO CART
    Order from distributors
    8MIC-RPI-MX8-Image

    Click to expand

    • 8MIC-RPI-MX8
      Active

    • 8-microphone array proto board for voice enablement.

    • $228.85 USD
    • For a quantity of 1
      • Availability: In Stock
      • Inventory: 33
      • Shipping: Normally ships 1-2 business days
    ADD TO CART
    Order from distributors
