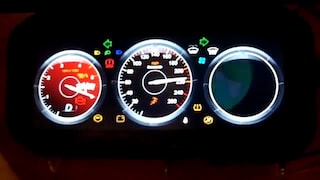

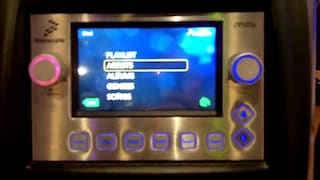

32-Bit Devices for Connected Radio and Digital Instrument Cluster Applications
The VFxxx VF5xxR family is purpose-built and cost-optimized for advanced connected radio, entry-level infotainment and digital instrument cluster applications. A dual-core (Arm® Cortex®-A5 + Cortex-M4) architecture handles both MCU and MPU tasks on a single chip. Generous 1.5 MB on-chip SRAM and multiple package options provide scalability from low-cost basic connected radios up to entry-level infotainment systems with dual displays and GPU-accelerated rich, compelling user interfaces.
Product Details

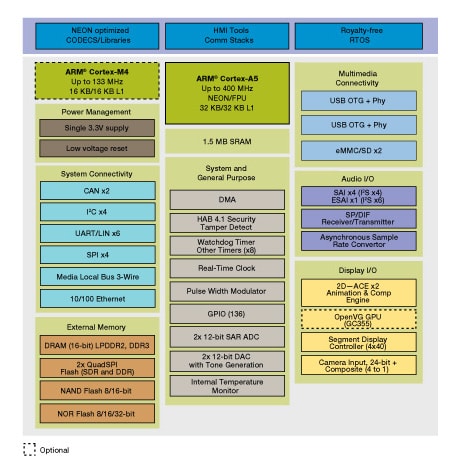

Block Diagram
Features
Hardware Features
- Cortex-A5 up to 400 MHz.
- Cortex-M4 up to 133 MHz.
- 1.5 MB on-chip SRAM reconfigurable as 512 KB L2 cache + 1 MB SRAM.
- DDR3/LPDDR2 DRAM interface.
- Dual display support up to WVGA with 2D animation and composition engine and OpenVG® GPU.
- Video ADC for direct connection to analog cameras.
- This product is included in NXP®'s product longevity program, with assured supply for a minimum of 15 years after launch.
Production Grade Software Features
- Complete MQX™ BSP
- Complete multimedia framework: player, media browser, cover flow, metadata and album art support.
- CE connectivity for devices such as iPhone®, smartphones, USB/SD memory cards.
- Comprehensive list of audio codecs.
- Commercial licensing terms with standard warranty and indemnification.
- Available support and maintenance program.
Industry-Leading Partners
- Altia — Complete suite of HMI development tools.
- OpenSynergy — Bluetooth® protocol stack.
- Cybercom blueGO — Bluetooth software framework.
- Alango — Voice Communication Package, AEC / NS.
