PCF85263ATL-ARD Arduino® Shield - Tiny Real-Time Clock

PCF85263ATL-ARD Active

Roll over image to zoom in

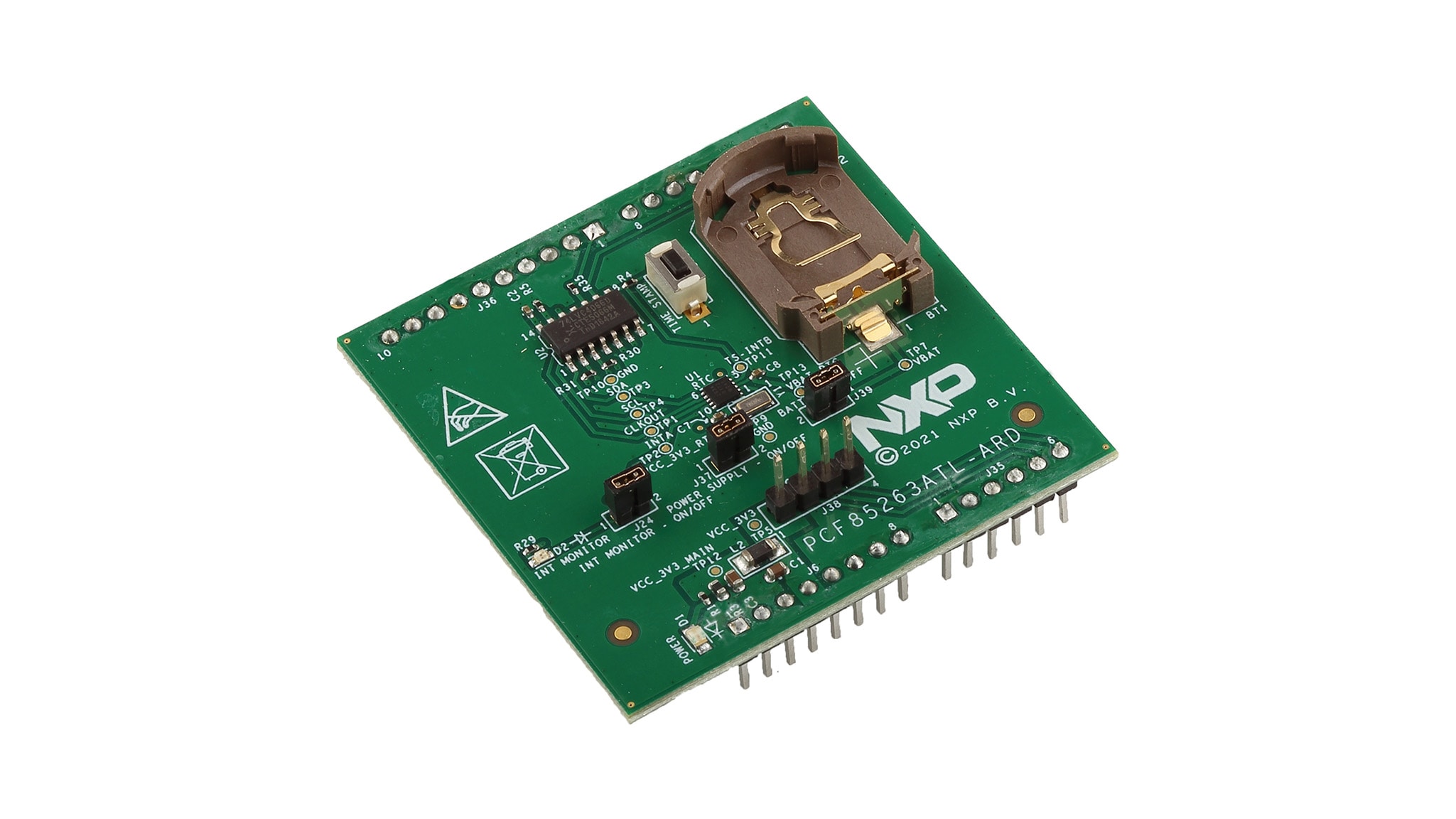

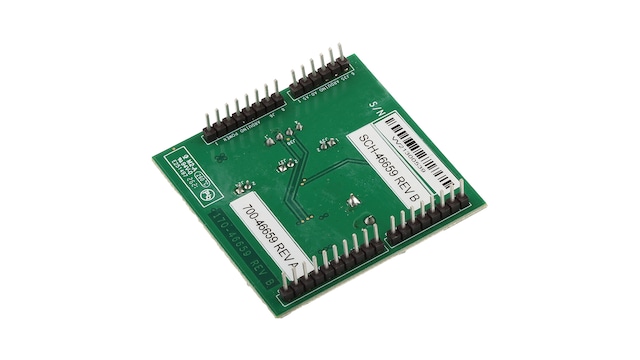

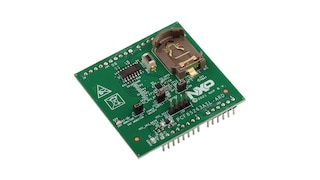

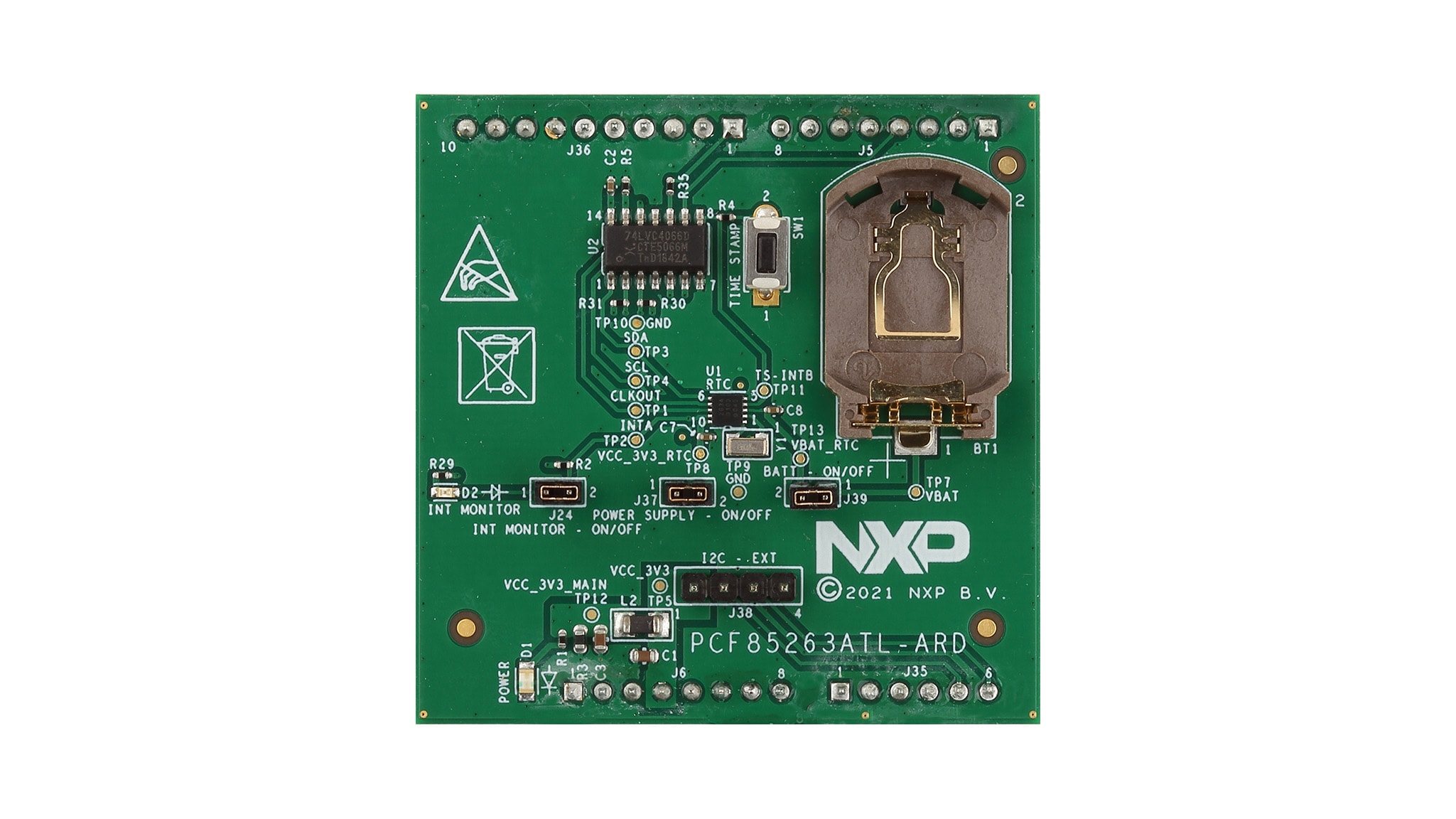

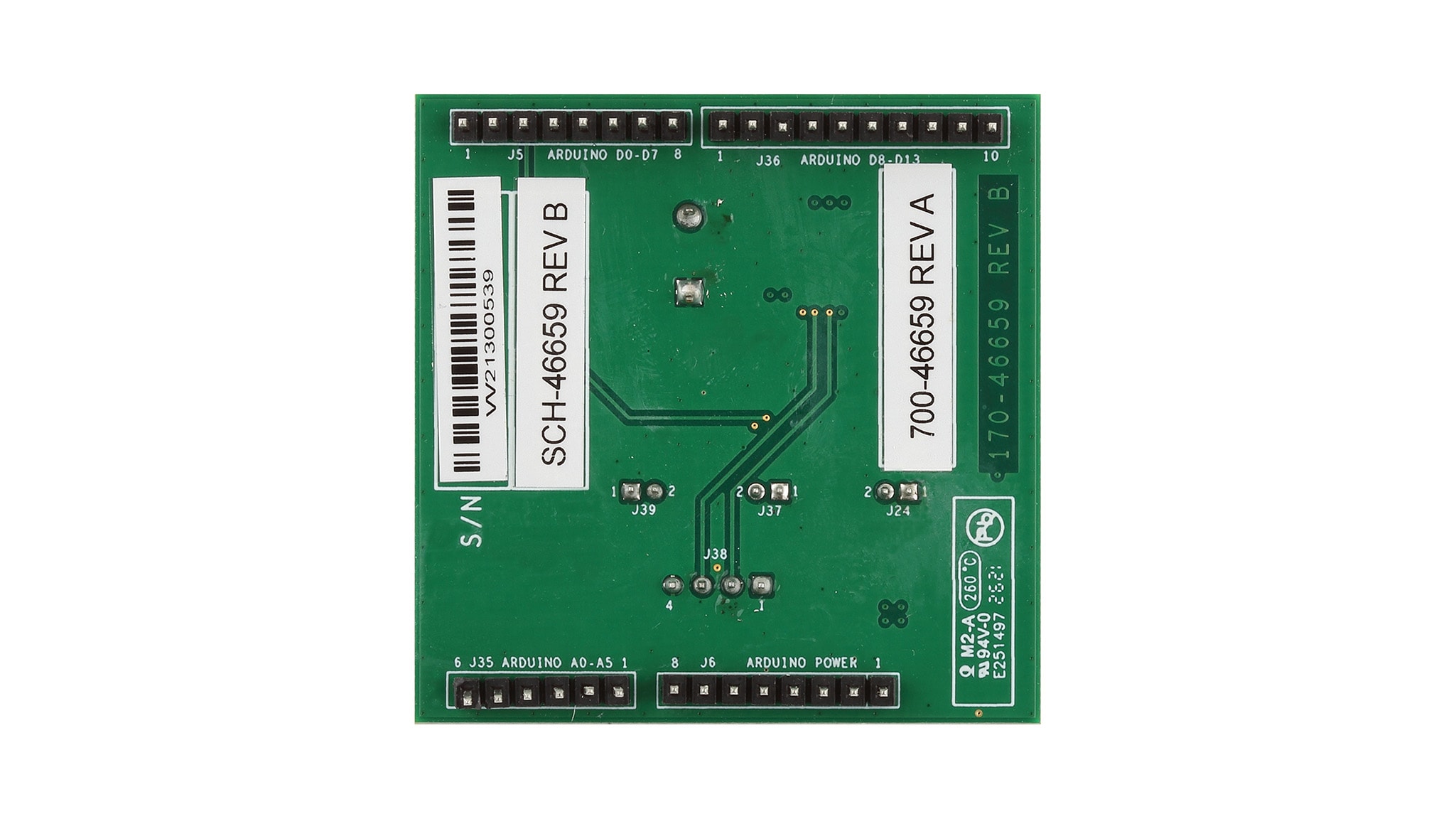

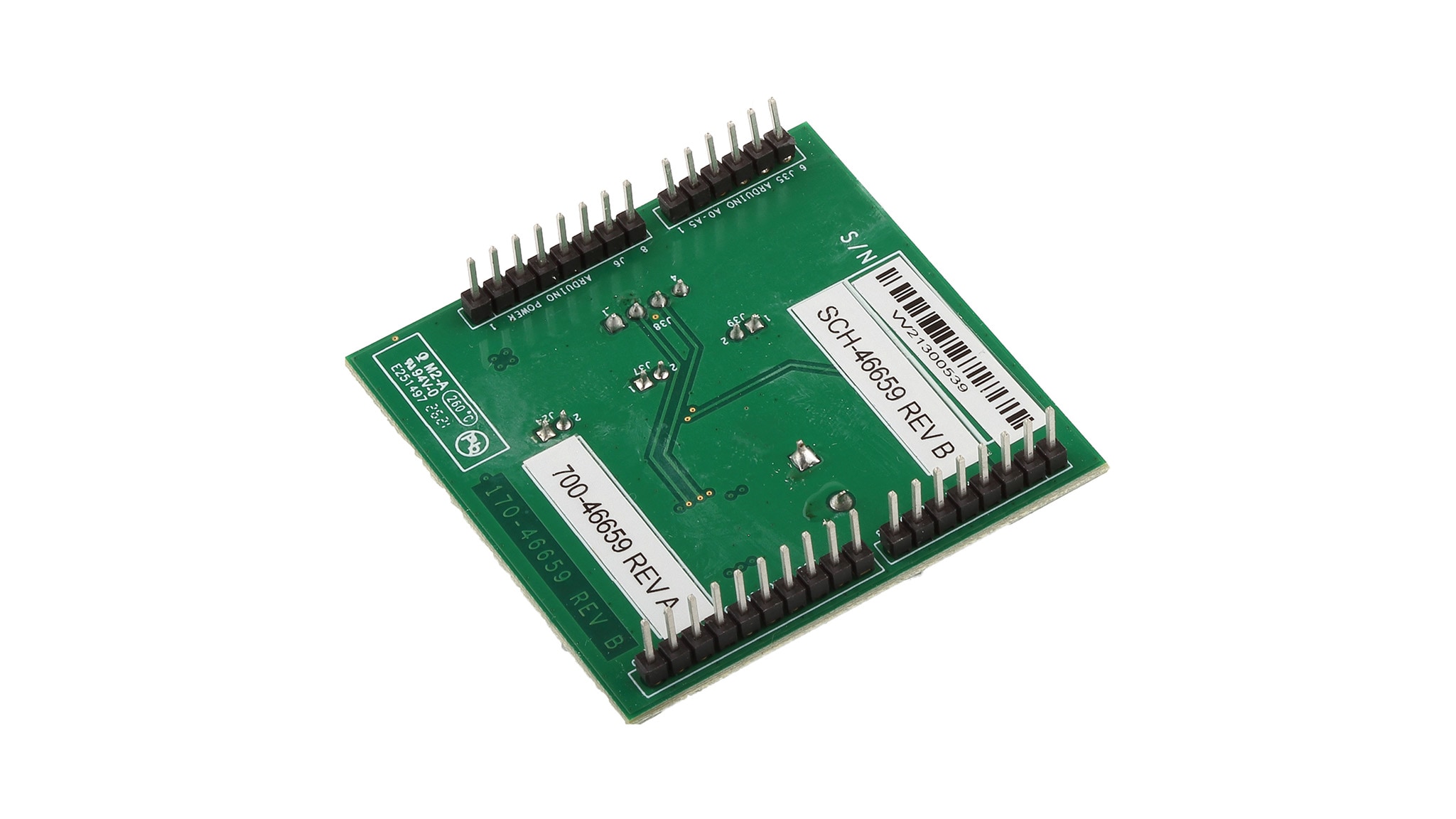

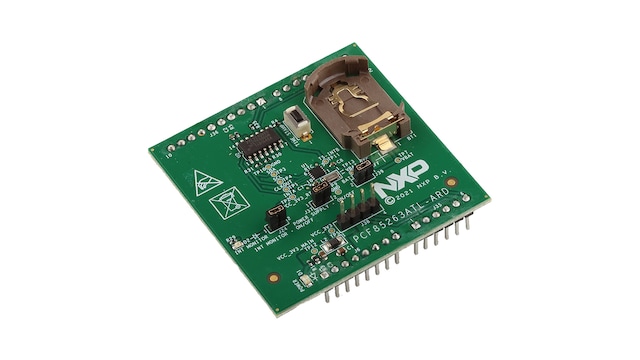

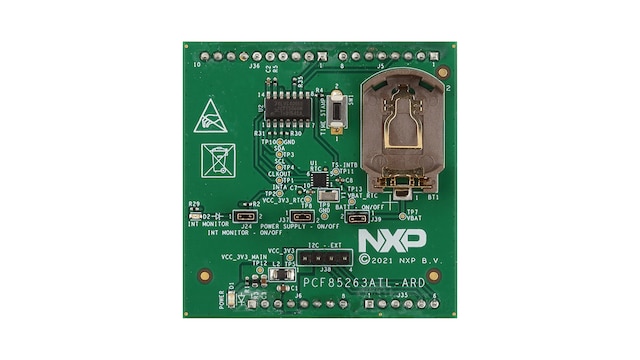

The PCF85263A Arduino® Shield features most of RTC functionalities on a board compatible with Arduino R3 pin layout. A graphical interface allows the user to easily explore the different functions of the RTC. Moreover, embedded driver and demo applications can be found as reference code to quick start.

Supported Devices

Analog and Mixed Signal

Real-Time Clocks

  • PCF85263A: Tiny Real-Time Clock/Calendar with Alarm Function, Battery Switch-Over, Time Stamp Input and I²C-Bus

Features

Power Supply

  • Supply voltage: 0.9 V to 5.5 V
  • Low current (0.28 µA @ VDD 3.3 V and 25° C)

Interface

  • Calendar support based on 32.768 kHz quartz crystal (year, month, day, weekday, hours, minutes and seconds).
  • Alarm function
  • Countdown timer
  • Oscillator stop detection function
  • Minute and half minute interrupt
  • Interrupt output
  • Programmable clock output for peripheral devices (TestPoint):
    • 32.768 kHz
    • 16.384 kHz
    • 8.192 kHz
    • 4.096 kHz
    • 2.048 kHz
    • 1.024 kHz
    • 1 Hz

Package

  • DFN2626 - plastic thermal enhanced extremely thin small outline package; no leads; 10 terminals; body 2.6 x 2.6 x 0.5 mm

Buy Options

PCF85263ATL-ARD-Image

Click to expand

  • PCF85263ATL-ARD
    Active

  • PCF85263ATL-ARD Arduino® Shield - Tiny Real-Time Clock.

  • Kit contains:

    • Assembled and tested evaluation board in an anti-static bag
    • Quick start guide
  • $22.22 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 20
    • Shipping: Normally ships 1-2 business days
ADD TO CART
