TJA1445A CAN FD with Partial Networking - Arduino® Based IO Evaluation Board

TJA1445A-EVB

Roll over image to zoom in

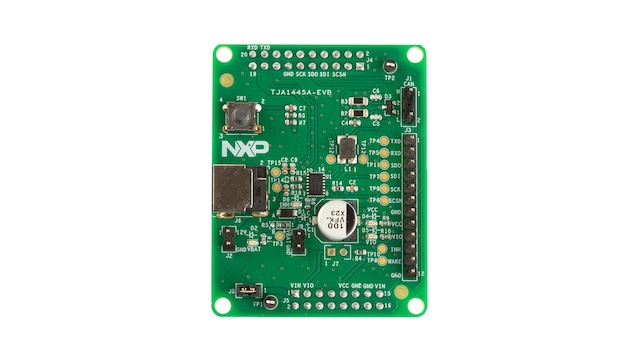

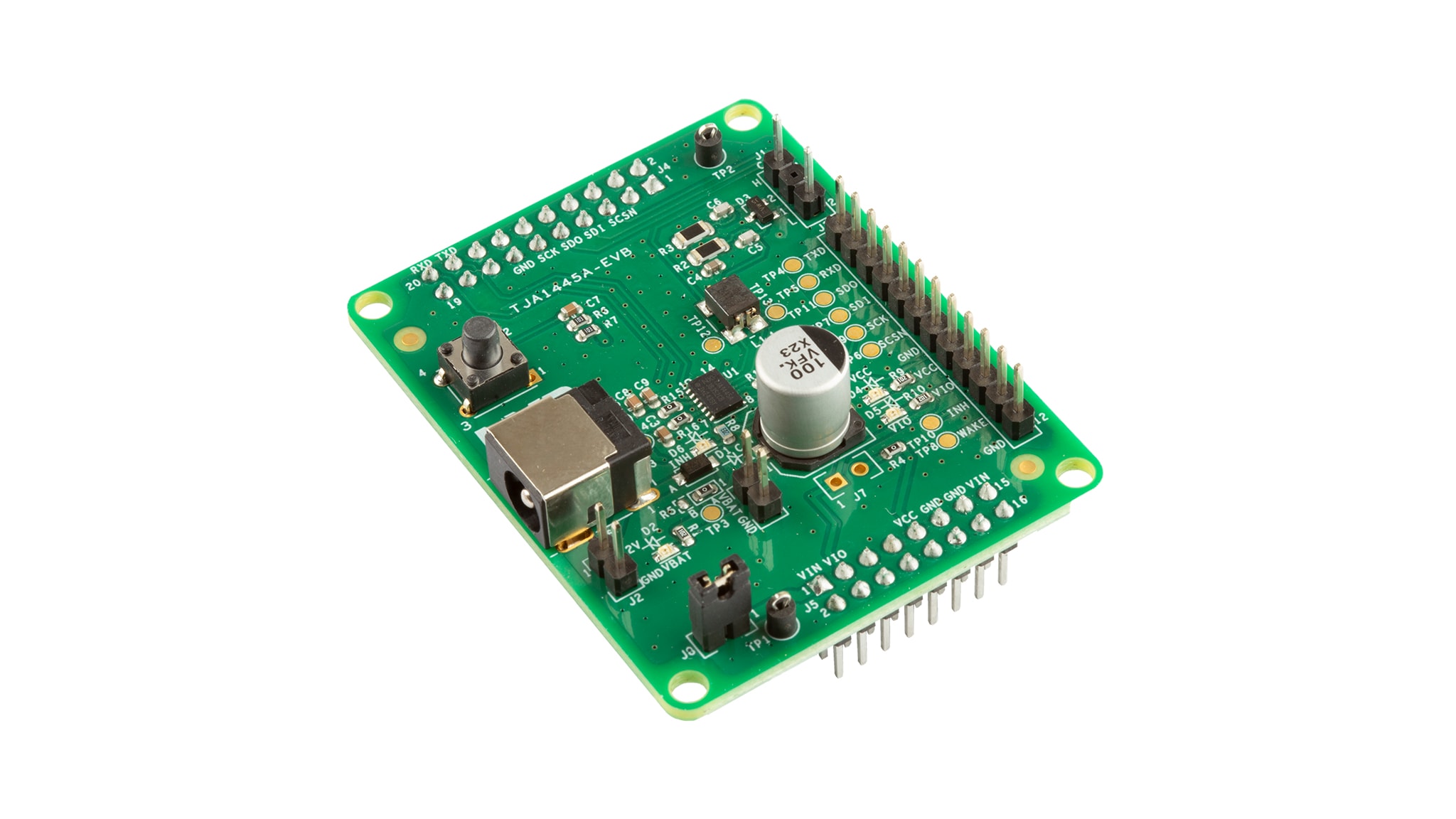

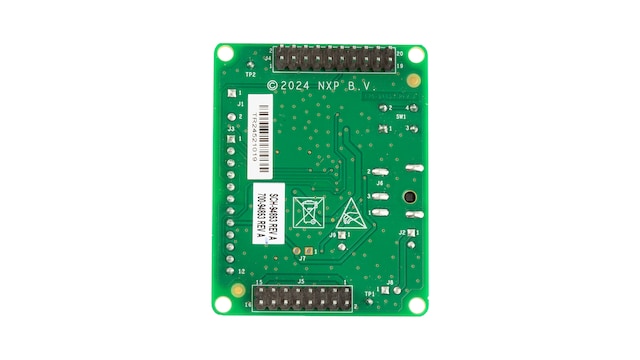

The TJA1445A Evaluation board is equiped with IO pins and an Arduino connection which can plug-on to any microcontroller evaluation board which has the Arduino option. The IO board has a WAKE button to trigger a local wake request.

Supported Devices

Interfaces

CAN Partial Networking

  • TJA1445: CAN FD Transceiver with Partial Networking, CAN FD Data Rates Up to 5 Mbit/s

Features

  • TJA1445A CAN FD with Partial Networking
  • Arduino connector
  • Local WAKE button

Buy Options

TJA1445A-EVB-Image

Click to expand

TJA1445A-EVB
Active

TJA1445A CAN FD with Partial Networking - Arduino® Based IO Evaluation Board.

    Order from distributors
