P3H2x4xHN I3C Hub Arduino® Shield Evaluation Board

P3H2x4xHN-ARD Preproduction
  • This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information contact support or your sales representative.

Roll over image to zoom in

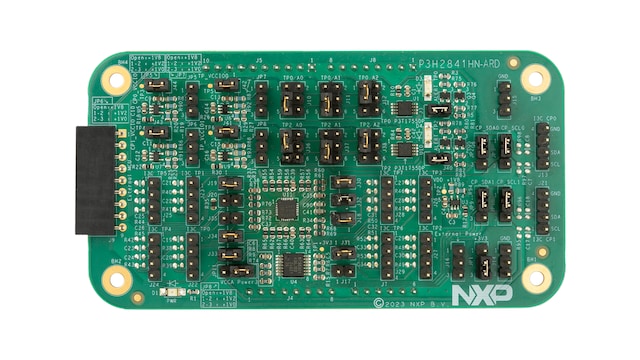

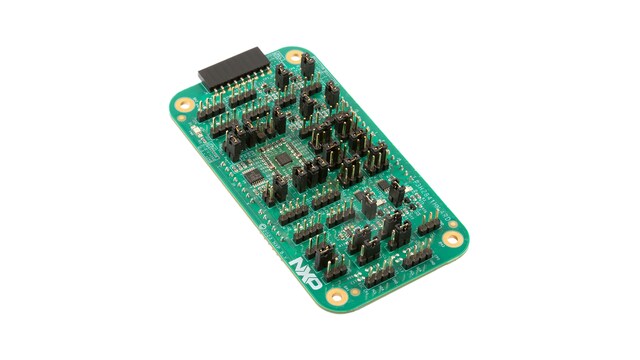

I3C Hub Arduino Shield evaluation boards are a complete evaluation platform for the P3H2440HN/P3H2441HN, 2 controller port connectors and 4 target ports connectors and for P3H2840HN/P3H2841HN, 2 controller and 8 target ports Connector.

On-board, it has 1.0 V/1.2 V/1.8 V LDOs for controller and target ports, power supply configuration and two temperature sensors (P3T1755DP) with alert LEDs providing complete system validation.

Moreover, the P3H2440HN / P3H2441HN / P3H2840HN / P3H2841HN are equipped with convenient test points for easy scope measurements and signal access, a USB interface to the host PC, a Windows GUI software and a power supply from USB port or external power supply that can be used to power evaluation board.

Supported Devices

Interfaces

I²C/I3C-Bus Hubs

  • P3H2x4xHN: I3C Hub with 2 Controller Ports and 4/8 Target Ports

Sensors

I3C/I²C Digital Temp. Sensors

  • P3T1755DP: I3C/I²C-Bus ±0.5 °C Accurate Digital Temperature Sensor

Features

Key Features

  • On-board 1.0 V/1.2 V/1.8 V LDOs, two temperature sensors (P3T1755DP) with alert LEDs, two controller port connectors and eight target port connectors for P3H2440HN, P3H2441HN, P3H2840HN, P3H2841HN evaluation
  • Convenient test points for easy scope measurements and signal access
  • Easy to use GUI based software demonstrates the capabilities of the P3H2440HN, P3H2441HN, P3H2840HN, P3H2841HN

Documentation

Quick reference to our documentation types.

Filters

1 documents

Design Resources

Design Files

Quick reference to our design files types.
Filters

1-5of 8 design files

Show All

Software

Quick reference to our software types.

Filters

3 software files

  • HMI Design Software

    GUI for P3H2x4xHN Arduino Shield Evaluation Board

    ZIPRev 1May 15, 2025 15:59:00760.8 KBP3H2x4xHN-GUI
    Download
  • BSPs and Device Drivers

    P3H2x4x I3C Hub - Application Code Hub

    MCUXPRESSORev 1Mar 4, 2025 10:05:001 KBP3H2X4X-I3C-HUB-APPLICATION-CODE-HUB
    Download
  • BSPs and Device Drivers

    P3H2x4x I3C Hub with Demo App (SDK)

    GITHUBRev 1Mar 4, 2025 10:08:001 KBP3H2X4X-I3C-HUB-DEMO-APP-SDK
    Download
