Name: PCA9617ADP-ARD Arduino® Shield Level Translating Fm+ I²C-Bus Repeater Evaluation Board
Price: 22.22 USD

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Roll over image to zoom in

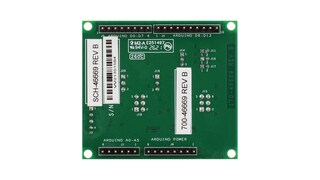

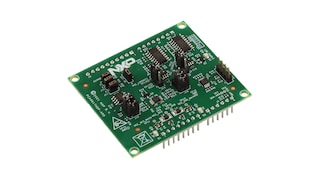

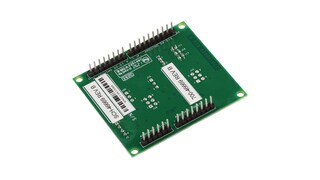

The PCA9617ADP-ARD evaluation board is a expansion board equipped with an Arduino port, designated for easy testing and design of PCA9617A IC, level translating FM+ I²C-bus repeater. The board is fully compliant with IMXRT1050 EVK, LPCXpresso55S69 (LPC55S69-EVK) and i.MX 8M Mini LPDDR4 EVK (8MMINILPD4-EVK, 8MMINID4-EVK), including GUI software control. The board can be attached to any device equipped with an Arduino port.

Design Files

Product Details

Supported Devices

Interfaces

I²C-Bus Repeaters/Buffers/Extenders

PCA9617A: Level Translating Fm+ I²C-Bus Repeater

Features

General Functions

Voltage level translating
I²C-bus repeater
FM+
Bidirectional buffer isolates capacitance

Power

Supply voltage: V_cc(A) 0.8V to 5.5V, V_cc(B) 2.2V to 5.5V
Icc(A): 50 uA(max)

Voltage Translation

Allows bidirectional voltage-level translation and I²C-bus repeater:
- 1.8 V SCLA/SDAA and 1.8 V, 2.5 V, 3.3 V or 5 V SCLB/SDAB
- 2.5 V SCLA/SDAA and 1.8 V, 2.5 V, 3.3 V or 5 V SCLB/SDAB
- 3.3 V SCLA/SDAA and 1.8 V, 2.5 V, 3.3 V or 5 V SCLB/SDAB
- 5 V SCLA/SDAA and 1.8 V, 2.5 V, 3.3 V or 5 V SCLB/SDAB

Interface

FM+, 1MHz I²C bus
EN pin

Package

TSSOP8, HWSON8

Buy Options

Click to expand

PCA9617ADP-ARD
Active

PCA9617ADP-ARD Arduino® Shield Level Translating Fm+ I²C-Bus Repeater Evaluation Board.

Kit Contains

Assembled and tested evaluation board in an antistatic bag
Quick Start Guide

$22.22 USD

In Stock :10

Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Documentation

Quick reference to our documentation types

2 documents

Compact List

Getting Started with the PCA9617ADP-ARD Evaluation Board[GS-PCA9617ADP-ARD]

HTMLJul 26, 2022

UM11763, PCA9617ADP-ARD Evaluation Board User Manual[UM11763]

PDFJul 22, 2022Rev 1.0

Design Resources

Related Hardware

Quick reference to our board types.

4 hardware offerings

Evaluation and Development Boards
Evaluation Kit for the i.MX 8M Mini Applications Processor

8MMINILPD4-EVKSimilar
Evaluation and Development Boards
Evaluation Kit for the i.MX 8M Mini Applications Processor
Active

8MNANOLPD4-EVKSimilar
Evaluation and Development Boards
i.MX RT1050 Evaluation Kit
Active

MIMXRT1050-EVKSimilar
Evaluation and Development Boards
LPCXpresso55S69 Development Board
Active

LPC55S69-EVKSimilar

Design Files

Quick reference to our design files types.

2 design files

Printed Circuit Boards and Schematics
PCA9617ADP-ARD Schematics

PDFRev BJan 13, 2021 10:24:00177.59 KBSPF-46669

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Design Files - miscellaneous
PCA9617ADP-ARD Design Files

ZIPRev 0May 23, 2022 10:59:0012.67 MBPCA9617ADP-ARD-DESIGN-FILES

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue

PCA9617ADP-ARD Arduino® Shield Level Translating Fm+ I²C-Bus Repeater Evaluation Board
