Name: TJA1446B CAN FD with Partial Networking Arduino Based IO Evaluation Board
Price: 28.75 USD
Availability: InStock

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Roll over image to zoom in

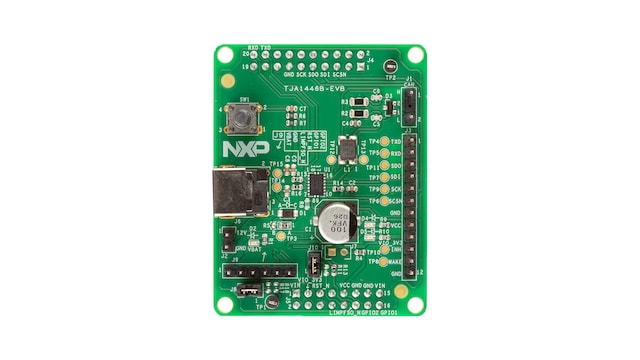

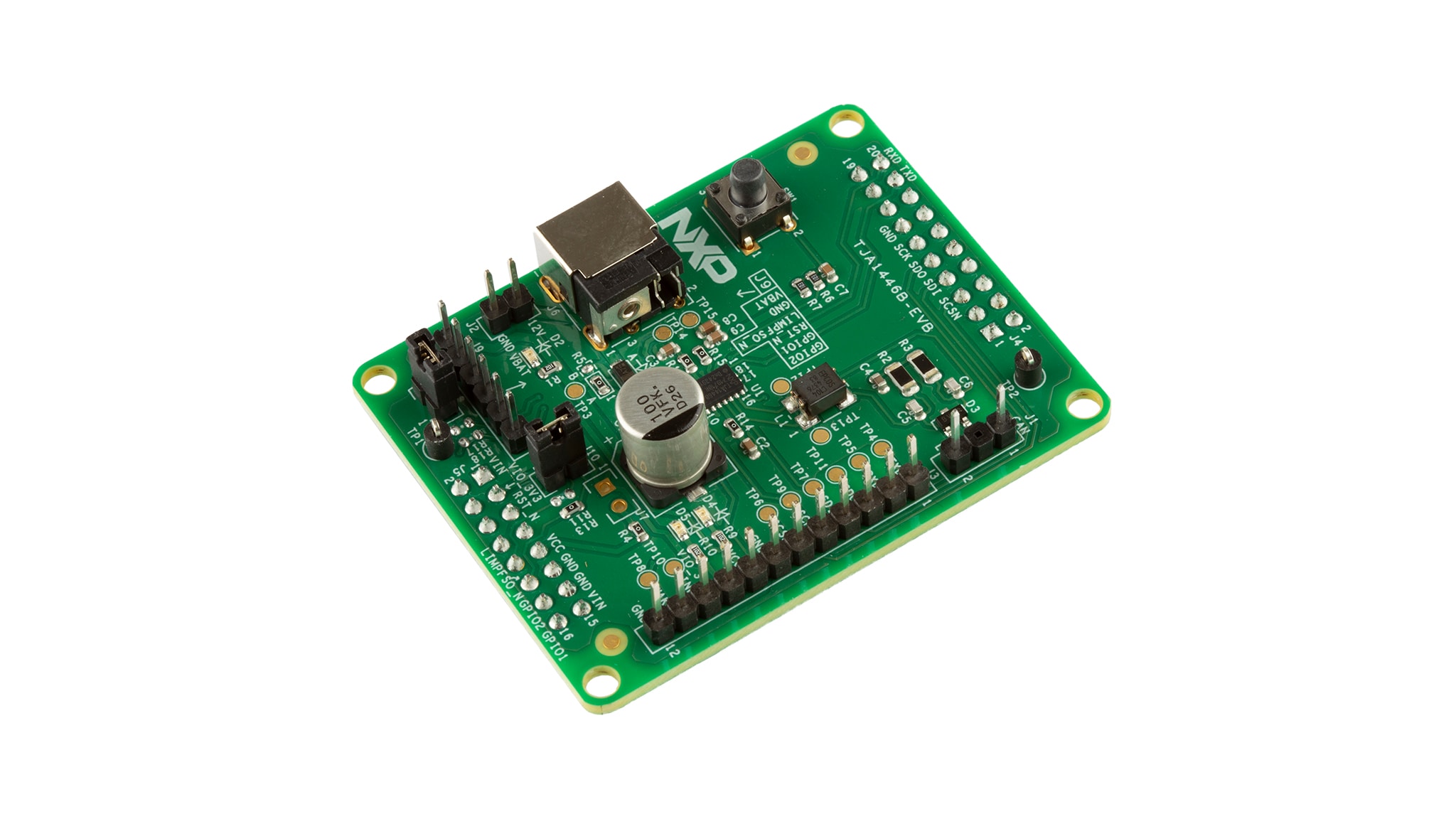

The TJA1446B Evaluation board is equipped with IO pins and an Arduino connection which can plug-on to any microcontroller evaluation board which has the Arduino option. The IO board has a WAKE button to trigger a local wake request.

Design Files

Software

Product Details

Supported Devices

Interfaces

CAN Partial Networking

TJA1446: CAN FD Transceiver with Partial Networking and Advanced System Monitoring, CAN FD Data Rates Up to 5 Mbit/s

Features

TJA1446B CAN FD with Partial Networking
Arduino connector
Local WAKE button

Buy Options

Click to expand

TJA1446B-EVB
Active

TJA1446B CAN FD with Partial Networking - Arduino® Based IO Evaluation Board.

Kit Contains

TJA1446B-EVB

Assembled and tested TJA1446B-EVB evaluation board in an antistatic bag

$28.75 USD

In Stock :6

Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order
