Name: Configurable Digital Microphone Board
Price: 90.85 USD
Availability: InStock

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Click image to open expanded view

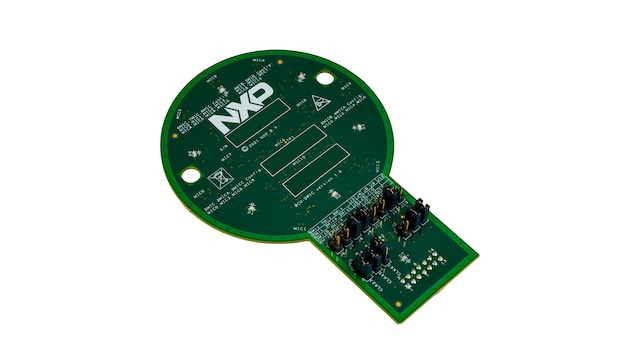

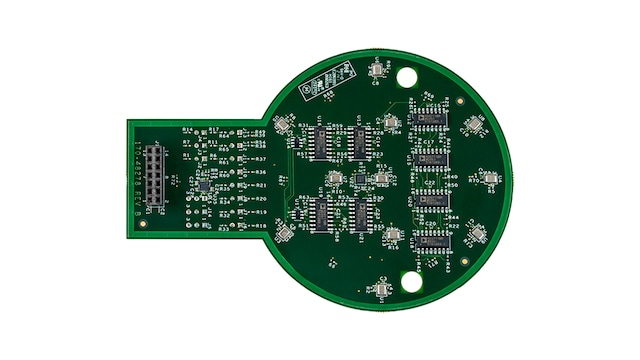

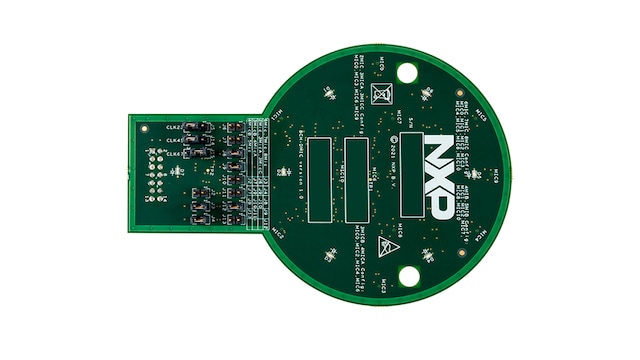

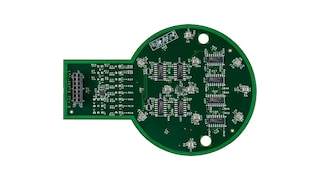

The 8CH-DMIC is a highly configurable digital microphone board to complement NXP’s MCU products that include PDM microphone interfaces. The board features 11 digital PDM microphones, with up to 8 active at a time, enabling many different microphone topologies to be configured for evaluation and development. The 8CH-DMIC connects to a host MCU evaluation board via a simple connector, which also provides power and optional drive signals to drive onboard LEDs. All design files are provided for the board, and example code is provided in the MCUXpresso SDK for the host MCU evaluation board.

Design Files

Product Details

Supported Devices

Processors and Microcontrollers

i.MX RT Crossover MCUs

i.MX-RT600: i.MX RT600 Crossover MCU with Arm® Cortex®-M33 and DSP Cores
i.MX-RT500: i.MX RT500 Crossover MCU with Arm® Cortex®-M33, DSP and GPU Cores
i.MX-RT700: i.MX RT700 Crossover MCU with Arm® Cortex®-M33, NPU, DSP and GPU Cores

Features

Connectors

2 x 7 header for connection to host evaluation board

User Interface

8 LEDs, controlled via I²C interface

Sensors

11 x Dual Knowles SPH0641lM4H digital microphone

Buy Options

Click to expand

8CH-DMIC
Active

Configurable Digital Microphone Board.

Kit Contains

8CH-DMIC microphone board

Expansion Board: Yes

$90.85 USD

In Stock :1

Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order
