i.MX RT1050

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Roll over image to zoom in

i.MX RT1050 crossover MCUs are part of the EdgeVerse™ edge computing platform and were introduced as the industry's first crossover MCU. They combine the high performance and high level of integration of an applications processors with the ease-of-use and real-time functionality of a microcontroller. The i.MX RT1050 MCU runs on the Arm^® Cortex^®-M7 core at 600 MHz.

This device is fully supported by NXP’s MCUXpresso Software and Tools, a comprehensive and cohesive set of free software development tools for Kinetis, LPC and i.MX RT microcontrollers. MCUXpresso SDK also includes project files for Keil MDK and IAR Embedded Workbench for Arm. Support for FreeRTOS™ on the i.MX RT1050 MCU is available within the MCUXpresso SDK.

Data Sheet

Reference Manual

Product Details

Block Diagram

i.MX RT1050 Crossover MCU

Get diagram PDF

Features

Highest performing Cortex-M7
3020 CoreMark/1284 DMIPS @ 600 MHz
Up to 512 kB Tightly Coupled Memory (TCM)
FreeRTOS support available with MCUXpresso SDK
Real-time, low-latency response as low as 20 ns
Industry’s lowest dynamic power with an integrated DC-DC converter
Low-power run modes at 24 MHz
Advanced multimedia for GUI and enhanced HMI
- 2D graphics acceleration engine
- Parallel camera sensor interface
- LCD display controller (up to WXGA 1366x768)
- 3x I²S for high-performance, multichannel audio
Extensive external memory interface options
- NAND, eMMC, QuadSPI NOR Flash, and Parallel NOR Flash
Wireless connectivity interface for
- Wi-Fi^®, Bluetooth^®, Bluetooth Low Energy, ZigBee^® and Thread^™
Supported by MCUXpresso SDK, IDE and Config Tools

MCUXpresso Config Tools – A comprehensive suite of system configuration tools, including pins, clocks, SDK builder and more.
MCUXpresso SDK – An open-source software development kit (SDK) built specifically for your processor and evaluation board selections.
MCUXpresso IDE – An easy-to-use integrated development environment (IDE) for creating, building, debugging, and optimizing your application.

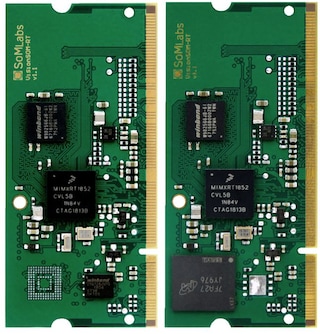

Part numbers include: MIMXRT1051CVJ5B, MIMXRT1051CVL5B, MIMXRT1051DVJ6B, MIMXRT1051DVL6B, MIMXRT1052CVJ5B, MIMXRT1052CVL5B, MIMXRT1052DVJ6B, MIMXRT1052DVL6B.

Design Resources

Design Files

2 design files

^Models
BDSL file for i.MXRT1050

BSDLRev 1Mar 23, 2020 11:40:0030.8 KBRT1050

Download
^Models
IBIS Model file for i.MXRT1050

IBSRev 1Jun 5, 2020 12:29:0020.5 MBrt1050_bga12x12_0.8pitch

Download
