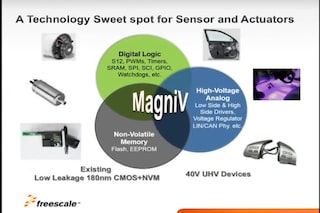

The S12ZVC platform, part of the S12 MagniV® mixed-signal MCU family, offers a low-cost, highly integrated solution that enables the design of smallest possible automotive CAN-termination nodes, while the family concept gives you scalability for platform design.
The S12ZVC integrates a sophisticated S12Z core together with a 12 V to 5 V voltage regulator and a CAN physical layer for automotive and industrial applications such as sensors, actuators switch panels or other user interfaces.
For additional information and sample availability, contact your local NXP Sales Office.
When it comes to functional safety, NXP stands for quality, reliability, and ease of integration. Our SafeAssure program simplifies system-level safety implementation in accordance with the applicable safety standards.
Participating products are available for a minimum of 10 years. Designated participating products developed for the automotive, telecom and medical segments are available for a minimum of 15 years.
| Feature | S12ZVCA | S12ZVCA | S12ZVC | S12ZVC | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Package | 64-pin LQFP-EP | 48-pin LQFP | 64-pin LQFP-EP | 48-pin LQFP | ||||||||||||
| Flash memory (ECC) (KByte) | 192 | 128 | 96 | 64 | 192 | 128 | 96 | 64 | 192 | 128 | 96 | 64 | 192 | 128 | 96 | 64 |
| EEPROM (ECC) (KByte)
(4-byte erasable) |
2 | 2 | 2 | 1 | 2 | 2 | 2 | 1 | 2 | 2 | 2 | 1 | 2 | 2 | 2 | 1 |
| RAM (ECC) (KByte) | 12 | 8 | 8 | 4 | 12 | 8 | 8 | 4 | 12 | 8 | 8 | 4 | 12 | 8 | 8 | 4 |
| High Speed CAN Physical Layer | 1 | 1 | 1 | 1 | ||||||||||||
| High Voltage Inputs | 2 | 2 | 2 | 2 | ||||||||||||
| Vreg for CAN PHY with ext. ballast
(BCTLC) |
yes | yes | yes | yes | ||||||||||||
| VDDX/VSSX pins | 2/2 | 2/2 | 2/2 | 2/2 | ||||||||||||
| msCAN | 1 | 1 | 1 | 1 | ||||||||||||
| SCI/SPI/IIC | 2/2/1 | 2/1/1 | 2/2/1 | 2/1/1 | ||||||||||||
| SENT (Transmitter) | 1 | 1 | 1 | 1 | ||||||||||||
| 16-bit Timer channels | 8 + 4 (20 ns resolution) | 4 + 4 (20 ns resolution) | 8 + 4 (20 ns resolution) | 4 + 4 (20 ns resolution) | ||||||||||||
| 16-bit PWM channels | 4 + 4 (20 ns resolution) | 4 + 3 (20 ns resolution) | 4 + 4 (20 ns resolution) | 4 + 3 (20 ns resolution) | ||||||||||||
| ADC channels | 16 (12-bit) | 10 (12-bit) | 16 (10-bit) | 10 (10-bit) | ||||||||||||
| 8-bit DAC | 1 | 1 | - | - | ||||||||||||
| ACMP 5V (with rail-to-rail inputs) | 2 | 2 | - | - | ||||||||||||
| EVDD (20 mA source) | 1 | 1 | 1 | 1 | ||||||||||||
| N-GPIO (25 mA sink) | 4 | 4 | 4 | 4 | ||||||||||||
|
|
|
|
|
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
