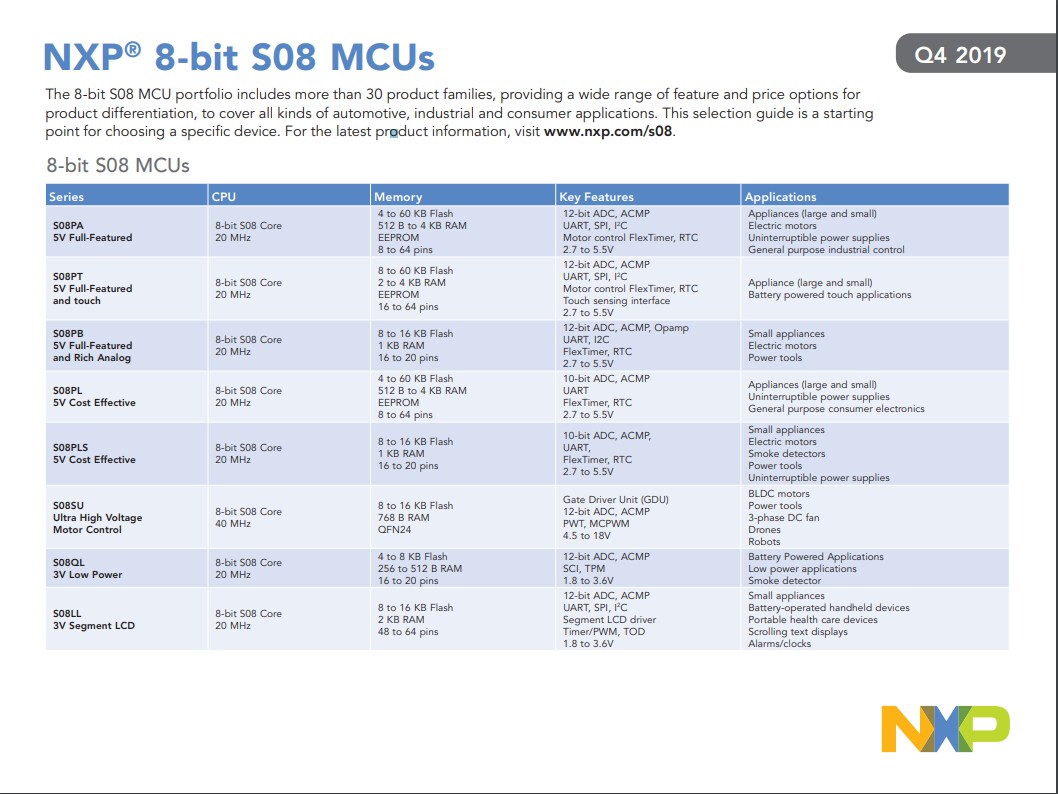

8-bit S08 MCUs
The 8-bit S08 MCU portfolio includes more than 30 product families, providing a wide range of features and price options for product differentiation, to cover all kinds of automotive, industrial, and consumer applications.
Featured Products
S08PA Series
5 V Full-featured
2.7 to 5.5 V
up to 60 K Flash, EEPROM
Advanced PWM, 12-b ADC, ACMP
UART, SPI, l2C
-40~105℃ / -40~125℃

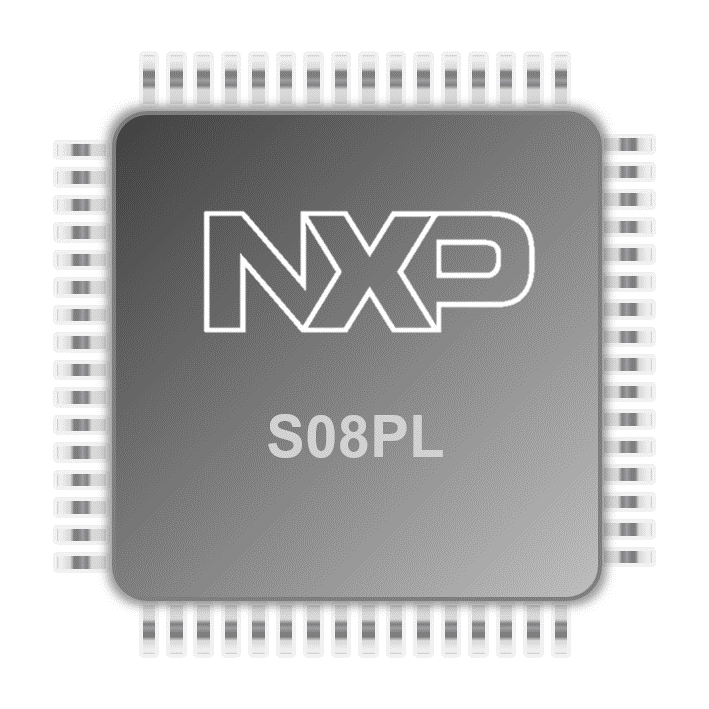

S08PL Series
5 V Cost Effective
2.7 to 5.5 V
up to 60 K Flash, EEPROM
Standard PWM, 10-b ADC
up to 3x UART
-40~85℃

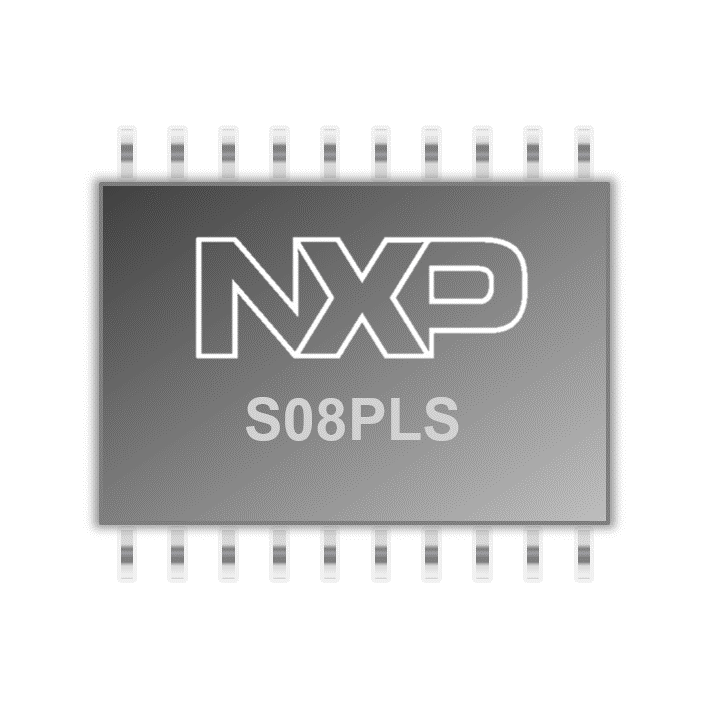

S08PLS Series
5 V Cost Effective
2.7 to 5.5 V
up to 16 K Flash
Standard PWM
10-b ADC, ACMP
UART
-40~85℃

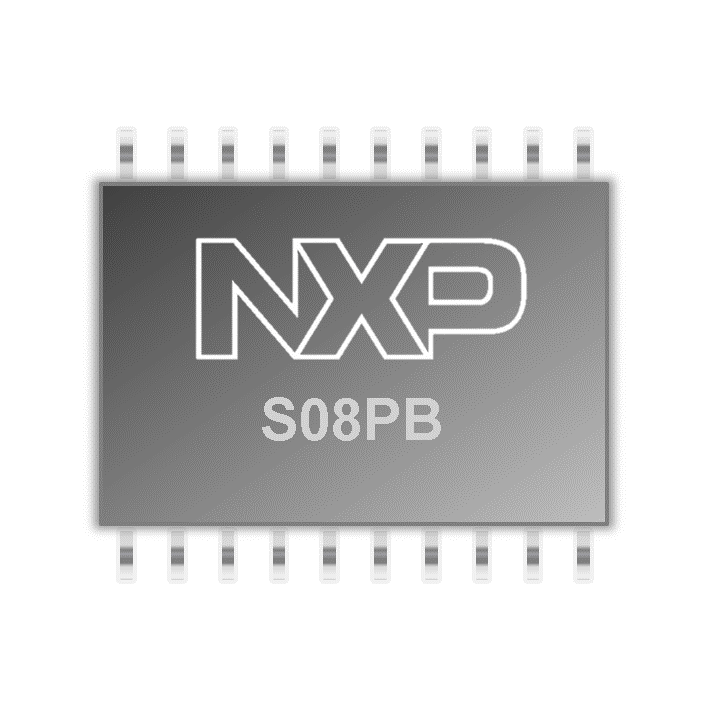

S08PB Series
5 V Full-featured
2.7 to 5.5 V
up to 16 K Flash
12-b ADC, ACMP, OPAMP
UART, I2C
-40~105℃ / -40~125℃

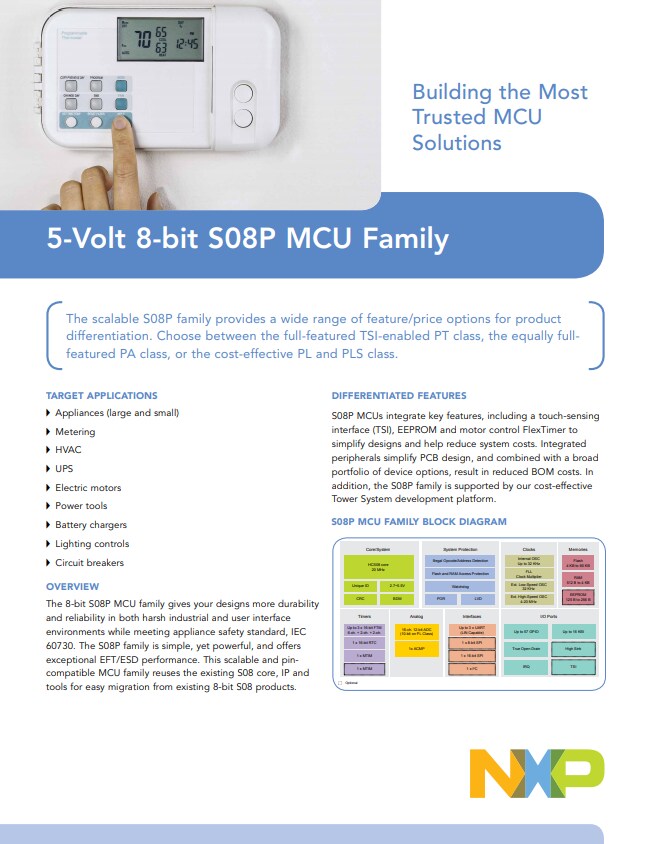

High-Robust S08 MCUs
The 5 V, 8-bit S08P MCU family gives your designs more durability and reliability in harsh user interface and industrial environments.
High-Robust S08 MCU Family Standard Key Features
| Products | Memories | S08 | Type | Pin count | ADC | Touch (TSI) |
Interfaces | Temperature Range |
|---|---|---|---|---|---|---|---|---|
| S08PT Series 5 V Full-featured and Touch |
8-60 kB Flash 2-4 kB RAM |
8bit 20 MHz |
LQFP, QFP, TSSOP, SOIC |
16-64 | 12 bit | Yes |
UART, SPI, I2C |
up to 105℃ |
| S08PA Series 5 V Full-feature |
4-60 kB Flash 512B-4 kB RAM |
8bit 20 MHz |
LQFP, QFP, TSSOP, SOIC, DFN, |
8-64 | 12 bit |
UART, SPI, I2C |
up to 125℃ |
|
| S08PB Series 5 V Full-Featured and Rich Analog |
8-16 kB Flash 1 kB RAM |
8 bit 20 MHz |
TSSOP |
16-20 | 12 bit |
I2C, UART |
up to 125℃ |
|
| S08PL Series 5 V Cost-effective |
4-60 kB Flash 512 B-4 kB RAM |
8bit 20 MHz |
LQFP, QFP, TSSOP, SOIC |
8-64 | 10 bit | UART |
up to 85C |
|
| S08PLS Series 5 V Cost-effective |
8-16 kB Flash 1 kB RAM |
8bit 20 MHz |
TSSOP, SOIC | 8-20 | 10 bit | UART |
up to 85℃ |
|
| S08SU Series 18 V SoC with Integrated Pre-driver |
8-16 kB Flash 1 kB RAM |
8bit 40 MHz |
QFN | 24 | 12 bit |
I2C, UART |
up to 105℃ |
Ultra-Low-Power S08 MCUs
The Ultra-Low-Power S08 MCU family, with low-power technology, provides extremely low-power performance suitable for battery powered and low-power segment LCD applications.
Ultra-Low-Power 8-bit Family Standard Key Features
| Products | Memories | S08 Core | Package | Segment LCD |
12-bit ADC | SCI | I2C | SPI | Temperature Range |
|---|---|---|---|---|---|---|---|---|---|
| S08LL Series Integrated Segment LCD |
10-64 kB Flash 2-4 kB RAM |
8bit 40 MHz |
48-QFN, 48-LQFP, 64-LQFP, 80-LQFP |
up to 8×36 or 4×40 |
up to 10 ch |
up to 2 |

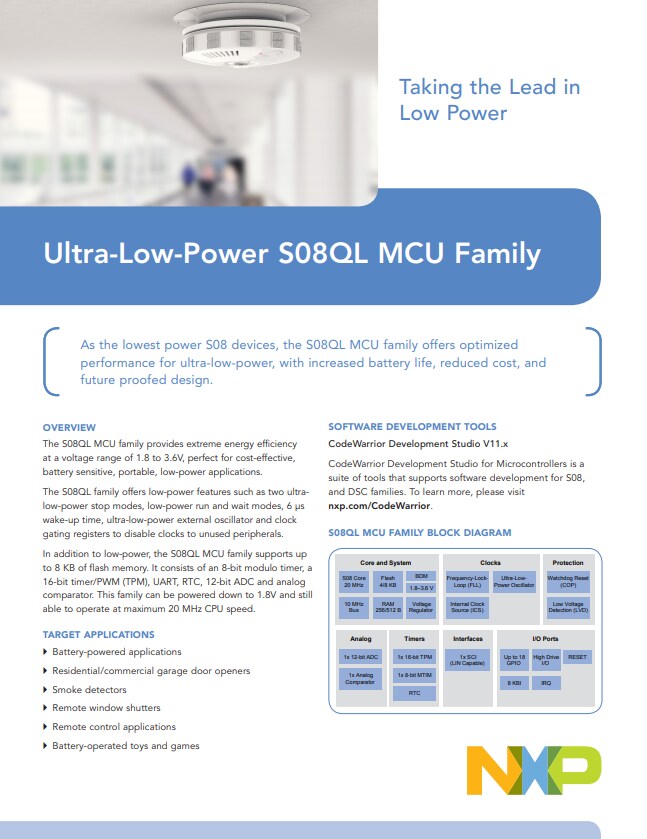

1 | 1 | -40 to 85℃ |
| S08QL Series Low power in small packages |
4-8 kB Flash 256-512 B RAM |
8bit 20 MHz |
16-TSSOP, 20-TSSOP |
8 ch | 1 | -40 to 85℃ |
Automotive S08 MCUs
Automotive qualified S08 products, covering a wide range of memory size and package type and available with various modules and performances, support various automotive applications more effectively and economically.
Automotive S08 MCU Family
| Products | Description | Operating Frequency | Flash | RAM | SPI | I2C | GPIO | Ambient Operating Temperature | Package Type |
|---|---|---|---|---|---|---|---|---|---|
|
S08AW Series |
8-bit General Purpose AW60/48/32/16 MCUs |
up to 20 MHz |
up to 60 kB |
up to 2 kB |
1 |
up to 54 |
-40℃ to +85℃ |
HVQFN48 LQFP32 LQFP44 LQFP64 QFP64 |
|
|
S08D Series |
8-bit Cost-Effective with CAN D MCUs |
up to 20 MHz |
up to 128 kB |
up to 8 kB |
up to 2 |
2 |
up to 88 |
-40℃ to +85℃ |
LQFP32 LQFP48 LQFP64 LQFP100 |
|
S08EL-SL Series |
8-bit EEPROM with LIN S08EL and S08SL MCUs |
up to 20 MHz |
up to 32 kB |
up to 1 kB |
1 | 1 |
up to 22 |
-40℃ to +85℃ |
TSSOP20 TSSOP28 |
| S08LG Series | 8-bit Segment LCD S08LG32 and S08LG16 MCUs |
up to 24 MHz |
up to 32 kB |
up to 2 kB |
1 | 1 |
up to 69 |
-40℃ to +85℃ |
LQFP48 LQFP64 LQFP80 |
|
S08MP Series |
8-bit General Purpose MP MCUs |
up to 25 MHz |
up to 16 kB |
up to 1 kB |
1 |
up to 40 |
-40℃ to +85℃ | LQFP48 | |
|
S08QD Series |
8-bit Small Package QD MCUs |
up to 24 MHz |
up to 4 kB |
260 bytes |
up to 6 |
-40℃ to +85℃ |
Td DIP8 SO8 |
||
|
S08RN Series |
8-bit EEPROM with TSI for Body Electronics MCUs |
up to 25 MHz |
up to 60 kB |
up to 4 kB |
1 |
up to 2 |
up to 55 |
-40℃ to +85℃ |
LQFP32 LQFP48 LQFP64 TSSOP16 TSSOP20 |
| S08SC4 Series | 8-bit C4 Small Package SC4 MCUs |
up to 20 MHz |
4 kB | 264 bytes |
up to 12 |
-40℃ to +85℃ | TSSOP16 | ||
|
S08SG Series |
8-bit Small Package SG MCUs |
up to 20 MHz |
up to 32 kB |
up to 1 kB |
1 | 1 |
up to 22 |
-40℃ to +85℃ |
TSSOP16 TSSOP20 TSSOP28 SO8 |
|
S08SL Series |
8-bit EEPROM with LIN S08EL and S08SL MCUs |
up to 20 MHz |
up to 16 kB |
512 bytes | 1 |
up to 22 |
-40℃ to +85℃ |
TSSOP20 TSSOP28 |
Additional S08 MCUs
Additional S08 MCUs are suitable for all kinds of consumer, industrial, and automotive applications.
Industrial and Consumer S08 MCU Family
| Products | Description | Flash(KB) | Package Type | Pin count |
|---|---|---|---|---|
|
S08AC Series |
Flexis® AC128/96/60/48/32 MCUs | 8-128 | LQFP, QFP, QFN | 32, 44, 48, 64, 80 |
|
S08LH Series |
with LCD Driver LH MCUs | 36-64 | LQFP | 64, 80 |
|
S08QG Series |
Small Package QG MCUs | 4-8 | PDIP, DFN, TSSOP, SOIC, | 6, 14, |
|
S08FL Series |
Cost-Effective FL 16/8 MCUs | 8-16 | LQFP, PDIP | 32 |
|
S08R Series |
S08RC, S08RD, S08RE, and S08RG MCUs | 32 | LQFP | 44 |
|
S08GB Series |
General Purpose GB MCUs | 32-64 | LQFP | 64 |
|
S08MM Series |
Flexis USB MM128/64/32 MCUs | 32-128 | LQFP, BGA | 64, 80, 81 |
|
S08SE Series |
General Purpose SE MCUs | 4-8 | TSSOP, SOIC | 16, 28 |
|
S08GT Series |
General Purpose GT MCUs | 8-60 | QFN, QFP | 32, 44, 48 |
|
S08SF Series |
Motor Control SF MCUs | 4 | TSSOP | 16, 20 |
|
S08GW Series |
LCD GW MCUs | 32-64 | LQFP | 64, 80 |
|
S08QA Series |
QA MCUs | 2-4 | SOIC, DFN, PDIP | 8 |
|
S08SH Series |
General Purpose SH MCUs | 4-32 | SOIC,TSSOP,PDIP, QFN, | 8, 16, 20,24,28 |
|
S08JE Series |
Flexis USB JE MCUs | 64-128 | LQFP | 64, 80 |
|
S08JM Series |
USB Cost-Effective JM MCUs | 8-60 | LQFP, QFN, QFP | 32, 44,48, 64 |
|
S08SV Series |
General Purpose performing SV MCUs | 16 | LQFP | 32 |
|
S08LC Series |
LCD for Battery-Powered and Handheld LC MCUs | 36-60 | LQFP | 64, 80 |
|
S08QE Series |
Flexis QE MCUs | 4-128 | QFN, LQFP, SOIC, PDIP, TSSOP | 16, 20, 28, 32, 44, 48, 64, 80 |
NXP Extends Product Longevity for Multiple General Purpose Automotive MCUs
Are you designing edge node applications with NXP’s S08, S12(X) or MagniV MCUs? Now you can extend the lifetime of your proven designs. NXP’s Automotive Product Longevity commitment has been extended beyond 15 years for multiple general purpose Automotive MCU families.
