i.MX 93 Evaluation Kit

IMX93AUTO-EVK
Active

Roll over image to zoom in

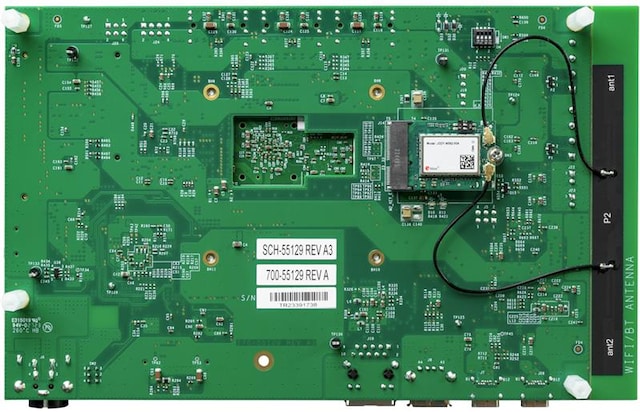

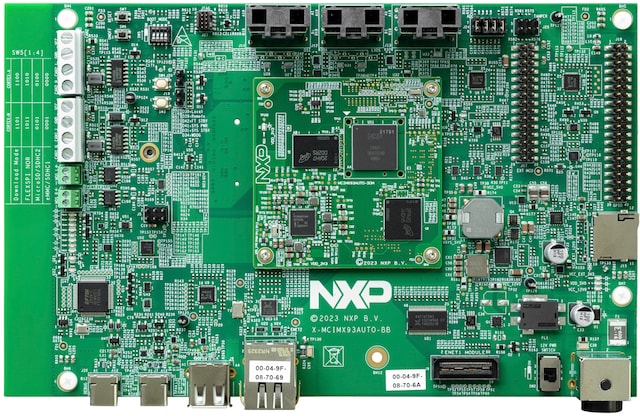

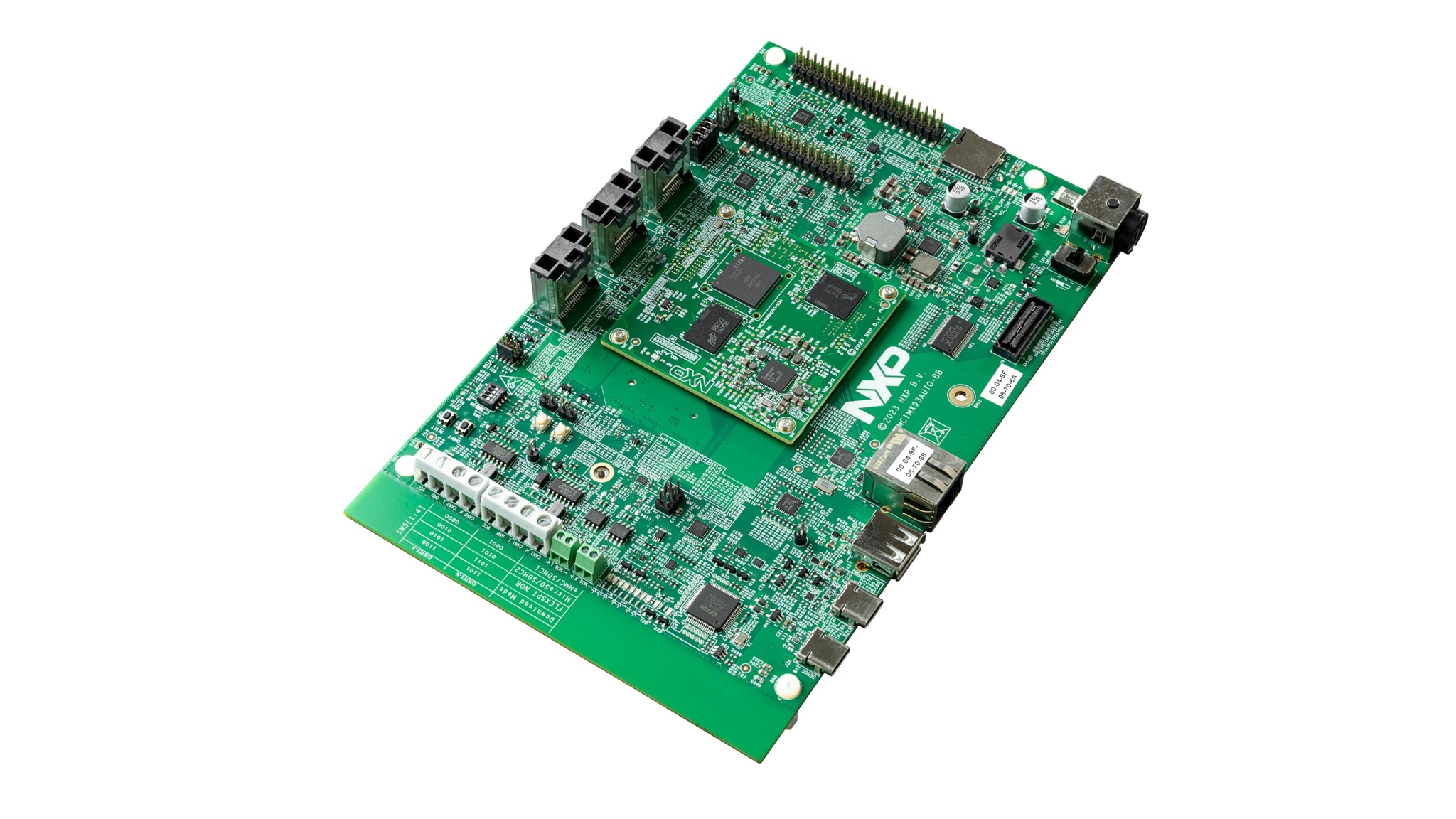

The i.MX 93 Automotive Evaluation Kit is a platform for comprehensive evaluation of the i.MX 93 applications processors.

The two-board solution consists of a compute module that contains an i.MX 93 sytem on a chip (SoC), low-power double data rate 4/low power double data rate 4X (LPDDR4X/LPDDR4), embedded MultiMediaCard (eMMC), NXPs PMIC PCA9452A and a base board that brings out the broad connectivity including NXP’s AW611 WiFi module. This kit is an excellent starting point for accelerating your own design.

Block Diagram

i.MX 93 Evaluation Kit

i.MX 93 Automotive Evaluation Kit
Get diagram PDF

Features

Processor

  • i.MX 93 Applications Processor
    • Dual Cortex-A55 @1.7GHz
    • Cortex-M33 @250MHz
  • Arm® Ethos™ U-65 micro neural processing unit (MicroNPU)
  • EdgeLock® Secure Enclave

Memory

  • 2 GB LPDDR4X / LPDDR4
  • 16 GB eMMC5.1
  • MicroSD slot

Display and Camera Interfaces

  • x4 lane mobile industry processor interface display serial interface (MIPI DSI) interface, mini serial attached small computer system interface (mini-SAS) connector
  • x4 lane low-voltage differential signaling (LVDS) interface, mini-SAS connector
  • x2 lane MIPI camera serial interface, version 2 (MIPI CSI-2) interface, mini-SAS connector

Wireless

  • M.2 KEY-E slot with WiFi / BT IEEE802.15.4 support

Audio

  • Two 2-pin connectors for left/right stereo speakers or headphones

Connectivity

  • USB2.0 Type-C connector
  • USB2.0 type A connector
  • Ethernet quality of service (ENET_QOS) 60-pin connector
  • Gigabit Ethernet (GbE) RJ45
  • Controller area network (CAN) header (HDR)
  • Raspberry Pi (RPi) 2X20 general purpose input/output (GPIO) HDR
  • Inter-integrated circuit (I²C) HDR
  • Analog-to-digital converter (ADC) HDR
  • M.2 Key-E connector

Debug

  • Joint test action group (JTAG) connector
  • Universal asynchronous receiver-transmitter (UART) via USB C
  • Remote debug support

Sensors

  • I3C inertial measurement unit (IMU) support

Security

  • Tamper support

Tools and OS Support

  • Linux®
  • Free real-time operating system (FreeRTOS)

Buy Options

MCIMX93AUTO-EVK-Image

Click to expand

MCIMX93AUTO-EVK
Active

i.MX 93 Evaluation Kit .

    $683.00 USD
    In Stock :58

    Normally ships 1-2 business days

    ADD TO CART
    Order from distributors
    IMX-MIPI-HDMI-Image

    Click to expand

    IMX-MIPI-HDMI
    Active

    MIPI to HDMI adaptor card (mini SAS).

      $194.35 USD
      In Stock :36

      Normally ships 1-2 business days

      ADD TO CART
      Order from distributors
      IMX-LVDS-HDMI-Image

      Click to expand

      IMX-LVDS-HDMI
      Active

      LVDS to HDMI adaptor card (mini SAS).

        $125.35 USD
        Pending Stock
        ADD TO CART
        Order from distributors
