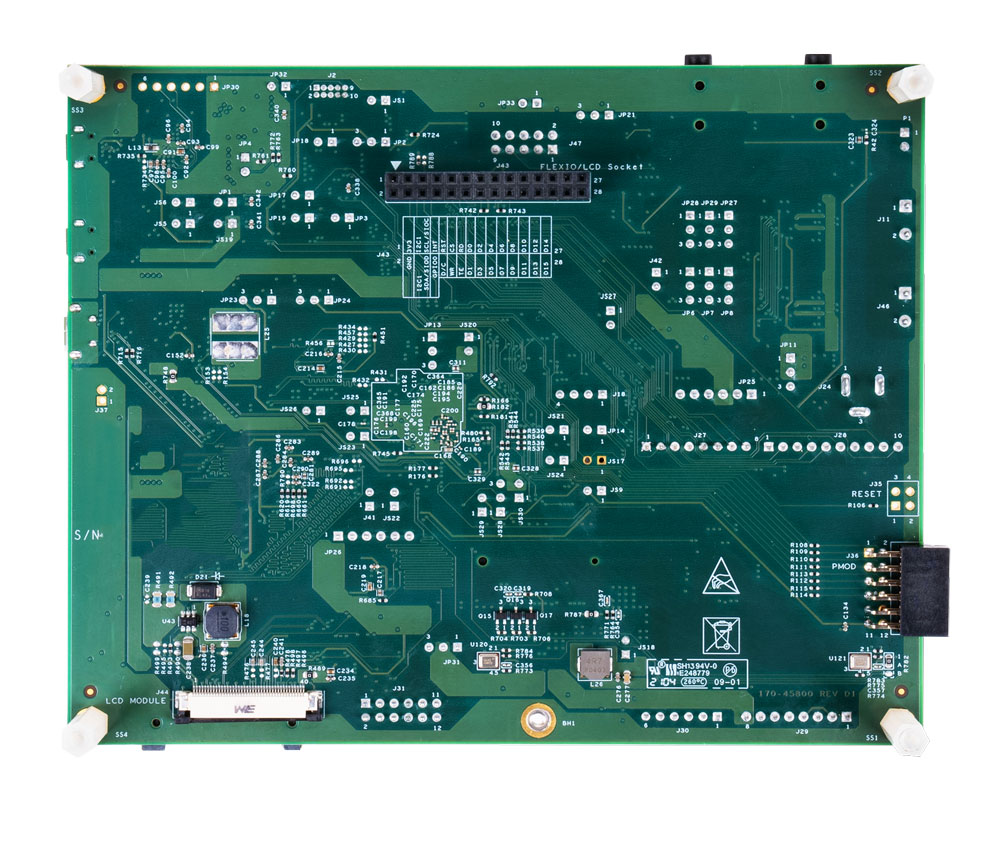

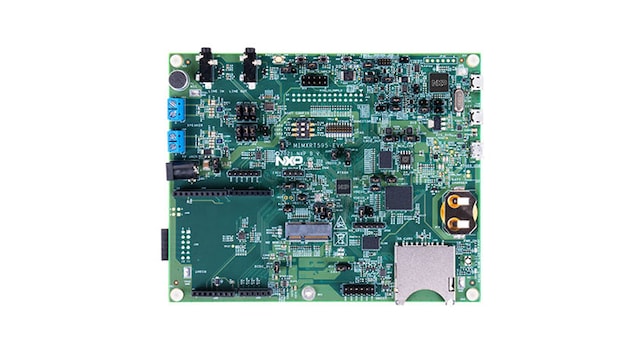

i.MX RT595 Evaluation Kit

MIMXRT595-EVK

Roll over image to zoom in

The MIMXRT595-EVK evaluation board provides a powerful, extendable platform for evaluation and prototyping with the i.MX RT500 series crossover MCUs using the MCUXpresso suite of software and tools. Arduino UNO, M.2, PMod(R), microphone and display connectors enable flexible expansion options, with off the shelf LCD panels for wearable and other applications requiring high performance HMI solutions. The boards feature a high speed USB debug probe based with easy firmware update options to support CMSIS-DSP or a special version of J-link LITE from SEGGER.

Product Details

Supported Devices

Processors and Microcontrollers

i.MX RT Crossover MCUs

  • i.MX-RT500: i.MX RT500 Crossover MCU with Arm® Cortex®-M33, DSP and GPU Cores

Power Management

5 V PMIC Solutions

Products

mWallet 2GO

  • FXOS8700CQ: Digital Motion Sensor - 3D Accelerometer (±2g/±4g/±8g) + 3D Magnetometer

Features

Processor

MIMXRT595

  • Cortex-M33 running up to 200 MHz
  • Cadence Tensilica Fusion F1 running up to 200 MHz
  • Internal SRAM (5 MB)

Board Memory

  • Macronix Octal SPI Flash (64 MB)
  • APM Memory PSRAM (8 MB)
  • SanDisk eMMC (16 GB)

Debug Capabilities

  • 10-pin and 20-pin SWD connectors supporting external debug/trace probes
  • On-board debug probe with VCOM and CMSIS-DAP or J-link firmware options

Expansion Connectors

  • Arduino expansion
  • PMOD expansion
  • Expansion connector for 8-channel microphone board
  • I3C header
  • Flexcomm header
  • FlexIO display header, which enables you to connect an optional TFT Proto 5” CAPACITIVE from MikroElektronika (5” display board with capacitive touch)
  • MIPI display connector, which enables you to connect to optional MIPI displays available from NXP

User Interface

  • Reset and user buttons for easy testing of software functionality
  • User LEDs

Connectivity

  • High/full-speed USB port with micro-A/B connector for the host or device functionality
  • SD Card slot

Sensors

  • NXP FXOS8700CQ accelerometer *Note: FXOS8700CQ accelerometer is in “End of Life” status

Audio

  • Audio codec with stereo line in and line out/headphone jack
  • Dual Knowles DMICs
  • DMIC expansion connector supporting up to 8 DMICs

Buy Options

MIMXRT595-EVK-Image

Click to expand

MIMXRT595-EVK
Active

i.MX RT595 Evaluation Kit.

    $148.35 USD
    In Stock :26

    Normally ships 1-2 business days

    ADD TO CART
    Order from distributors
    RK055HDMIPI4MA0-Image

    Click to expand

    RK055HDMIPI4MA0
    Active

    5.5" LCD Panel.

      $90.85 USD
      In Stock :7

      Normally ships 1-2 business days

      ADD TO CART
      Order from distributors
      G1120B0MIPI-Image

      Click to expand

      G1120B0MIPI
      Active

      1.2 inch wearable display, 390x390, 1-lane MIPI interface.

        $90.85 USD
        Pending Stock
        ADD TO CART
        Order from distributors
