Product Details

Supported Devices

Processors and Microcontrollers

i.MX 8 Applications Processors

i.MX8M: i.MX 8M Family - Arm^® Cortex^®-A53, Cortex-M4, Audio, Voice, Video

Power Management

Load Switches

NX5P3090UK: USB PD and Type-C Current-Limited Power Switch
NX5P3290UK: USB PD and Type-C Current-Limited Power Switch

Features

Processor

i.MX 8MQuad
4x Arm Cortex-A53 @ 1.5 GHz
1 MB L2 cache
Arm Cortex-M4 @ 266 MHz

Power Management

NXP PMIC PF4210

Memory

LPDDR4 x32 @3200MT w/ 4 GB
eMMC 5.0 w/ 16 GB
MicroSD connector
QSPI w/ 256 GB

Display / Camera Connectors

HDMI 2.0a Type-A connector
MIPI-CSI Camera mini-SAS connector
MIPI-DSI Display mini-SAS connector

Wireless

Bluetooth^® 4.1 / EDR
Wi-Fi 802.11 a/b/g/n/ac MIMO 2x2
Onboard chip antenna
External antenna connector

Audio

Audio DAC 24-bit 192 kHz Stereo
HP Jack 3.5 mm audio connector
Board Expansion Connector for Audio Interfaces

Connectivity

10/100/1000 Ethernet
USB 3.0 Type A connector
USB 3.0 Type C connector
PCIe M.2 interface
Infrared

Debug

JTAG connector
UART via USB

Tools and OS support

Linux^{^®}
Android^TM
FreeRTOS^TM

Buy Options

Click to expand

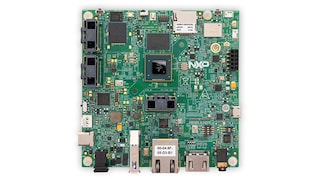

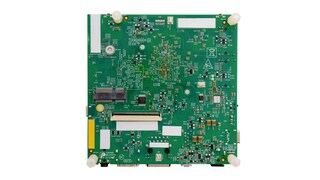

MCIMX8M-EVKB
Active

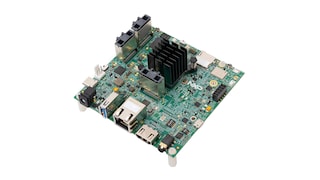

Evaluation Kit for the i.MX 8M Applications Processor.
Kit Contains:
- i.MX 8MQuad applications processor-based system
- Power Supply
- Quick Start Guide
  - USB 3.0 Type C to Type A
  - USB 2.0 Type A to Type Micro

$516.35 USD
For a quantity of 1

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Click to expand

MINISASTOCSI
Active
MIPI-CSI Camera Module.

$74.75 USD
For a quantity of 1
- Availability: In Stock
- Inventory: 12
- Shipping: Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Click to expand

IMX-MIPI-HDMI
Active
MIPI to HDMI adaptor card (mini SAS).

$194.35 USD
For a quantity of 1
- Availability: In Stock
- Inventory: 31
- Shipping: Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Click to expand

MX8-DSI-OLED1A
Active
Evaluation Kit for the i.MX 8M Applications Processor.

$573.85 USD
For a quantity of 1
- Availability: Pending Stock

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.
