Evaluation Kit for the i.MX 7ULP Applications Processor

MCIMX7ULP-EVK Active

Roll over image to zoom in

The NXP i.MX 7ULP Evaluation Kit (EVK) provides platform for rapid evaluation of the i.MX 7ULP, which features NXP's advanced implementation of the Arm® Cortex®-A7 core, the Arm Cortex-M4 core, as well as 3D and 2D Graphics Processing Units (GPUs).

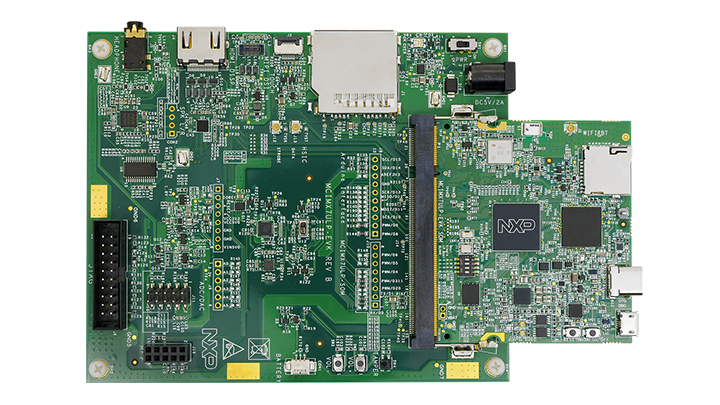

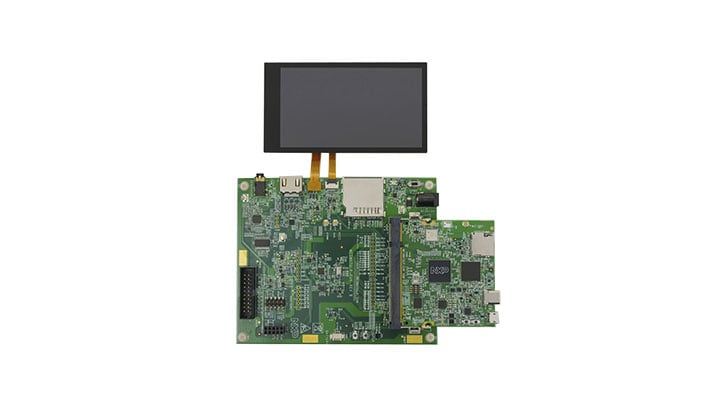

The EVK enables HDMI output for simple out-of-the-box to bring up but allows reconfiguration for MIPI displays. The EVK is designed as a System-On-Module (SOM) board that connects to an associated baseboard. The SOM provides 1 GB LPDDR3, 8 MB Quad SPI flash, Micro SD 3.0 card socket, WiFi/ Bluetooth capability, USB 2.0 OTG with Type C connector and an NXP PF1550 power management IC (PMIC). The baseboard provides additional capabilities including a full SD/MMC 3.0 card socket, audio codec, multiple sensors, an HDMI connector, and an alternate MIPI display connector. Additionally, the EVK facilitates software development with the ultimate goal of faster time to market through the support of both Linux® OS and Android™ rich operating systems, as well as FreeRTOS.

Product Details

Supported Devices

Processors and Microcontrollers

i.MX 7 Processors

  • i.MX7ULP: i.MX 7ULP Family, Ultra-Low-Power with Graphics

Power Management

PMICs

  • PF1550: PMIC with 1A Li+ Linear Battery Charger for Low Power Processor Systems

Features

Processor

  • i.MX 7ULP application processor
  • Single Arm® Cortex®-A7 core
  • Arm® Cortex-M4 core
  • 256 KB L2 cache

Power Management

  • NXP PF1550 PMIC
  • Battery socket

Memory

  • 1 GB LPDDR3 running at 400 MHz
  • 8 MB Quad SPI Flash
  • Footprint for managed NAND (eMMC/eSD)
  • Micro SD 3.0 card socket
  • Full SD/MMC 3.0 card socket

Display Connectors

  • HDMI connector
  • MIPI display panel connector

Wireless

  • Bluetooth 4.2/EDR
  • WiFi 802.11 b/g/n
  • On-board antenna
  • External antenna connector

Audio

  • Wolfson WM8960 audio codec
  • Audio headphone jack
  • External speaker connection

Connectivity

  • USB 2.0 OTG Type C connector
  • Micro USB 2.0 OTG Type B connector
  • USB HSIC interface
  • Arduino® connector
  • MFI interface
  • ADC/DAC connector

Sensors

  • 6-axis sensor with integrated linear accelerometer and magnetometer
  • Gyroscope
  • I²C precision pressure sensor with altimetry

Debug

  • JTAG connector
  • UART via USB

Buy Options

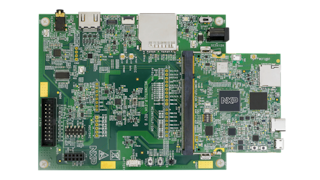

MCIMX7ULP-EVK-Image

Click to expand

  • MCIMX7ULP-EVK
    Active

  • MCIMX7ULP-EVK.

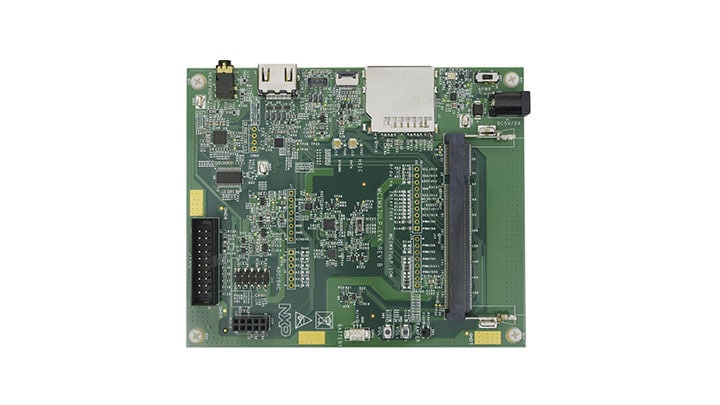

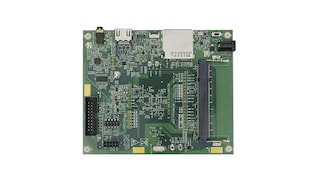

    • Evaluation kit for i.MX 7ULP application processor-baseboard
    • Evaluation kit for i.MX 7ULP application processor-System-on-module (SOM)
    • Power supply
  • $228.85 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 65
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors

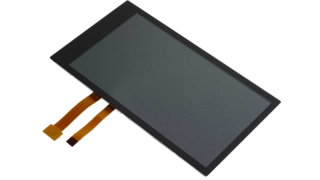

TFT3P5581-T-Image

Click to expand

  • TFT3P5581-T
    Active

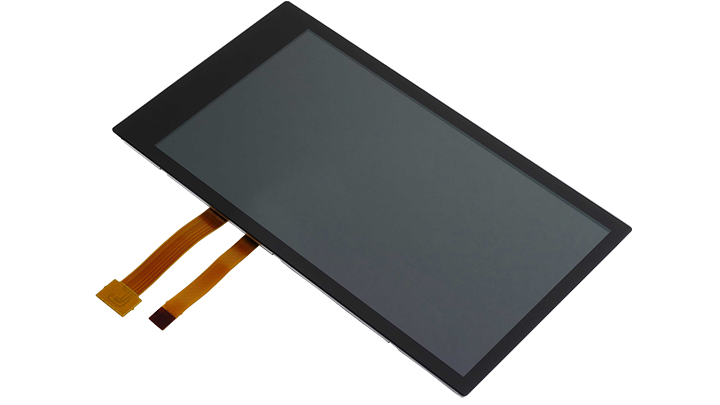

  • i.MX7ULP1 MIPI Display Touch Panel..
