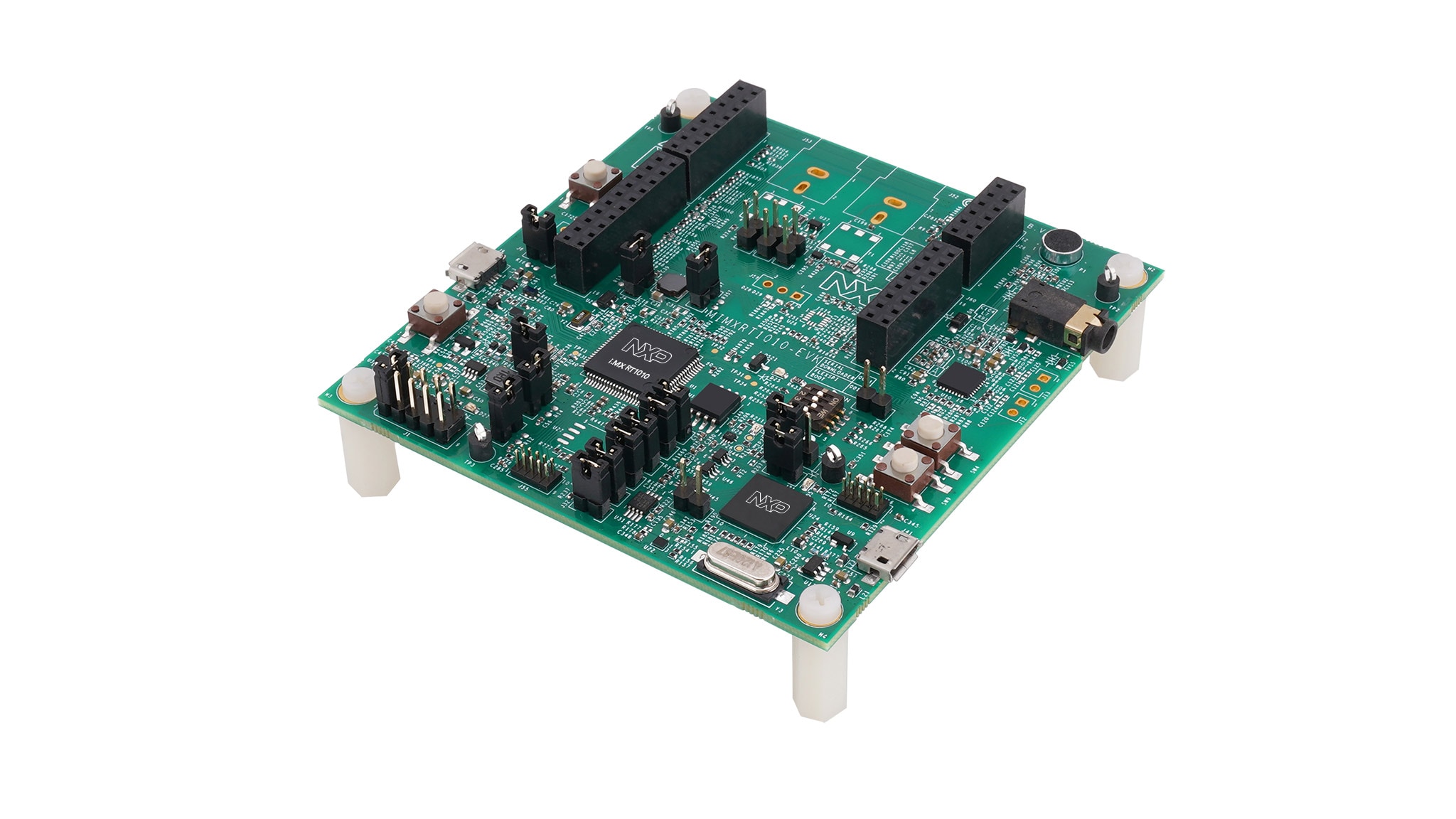

i.MX RT1010 Evaluation Kit

MIMXRT1010-EVK Active

Roll over image to zoom in

i.MX RT evaluation boards provide a powerful, extendable platform for evaluation and prototyping using the MCUXpresso Suite of Software and Tools. An Arduino UNO site is provided for expansion using NXP or 3rd-party shield boards. The boards feature a high-speed USB debug probe based with easy firmware update options to support CMSIS-DSP or a special version of J-Link LITE from SEGGER.

Product Details

Supported Devices

Processors and Microcontrollers

i.MX RT Crossover MCUs

  • i.MX-RT1010: i.MX RT1010 Crossover MCU with Arm® Cortex®-M7 Core Operating Up to 500 MHz

Features

Processor

  • MIMXRT1011DAE5A in an 80-pin low profile QFP package
  • 128 KB RAM
  • Operating up to 500 MHz

Board Memory

  • 128 Mb Quad SPI Flash

Audio

  • Wolfson WM8960 stereo audio codec
  • 3.5 mm stereo headphone jack
  • On board analog microphone
  • Dual speaker interfaces
  • SPDIF interface (unpopulated)

Connectivity

  • High-speed USB OTG connector

Debug Capabilities

  • LPC-Link2 high-speed USB debug probe on board
  • CMSIS-DAP and J-Link (evaluation) firmware options
  • Virtual COM port (UART to USB)
  • Arm Cortex SWD/JTAG connector for external debug probe

Expansion Connectors

User Interface

  • User Button
  • User LED

Buy Options

MIMXRT1010-EVK-Image

Click to expand

  • MIMXRT1010-EVK
    Active

  • i.MX RT1010 Evaluation Kit.

    • USB cable (Micro B)
    • Availability: In Stock
    • Inventory: 60
    • Shipping: Normally ships 1-2 business days
