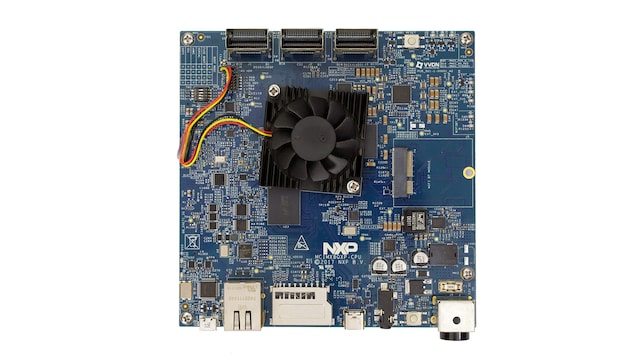

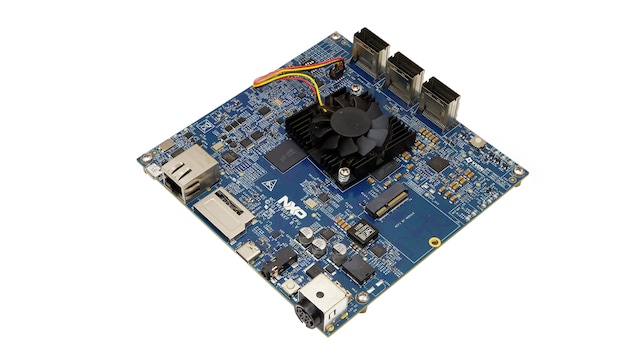

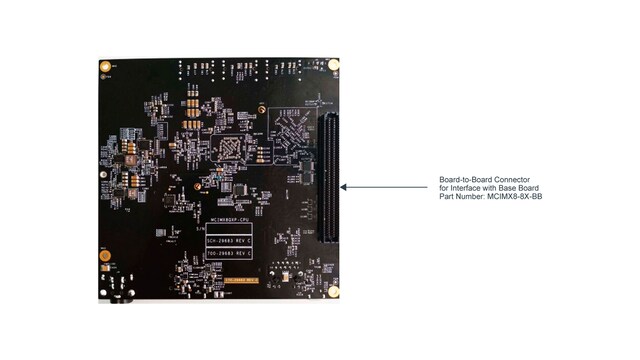

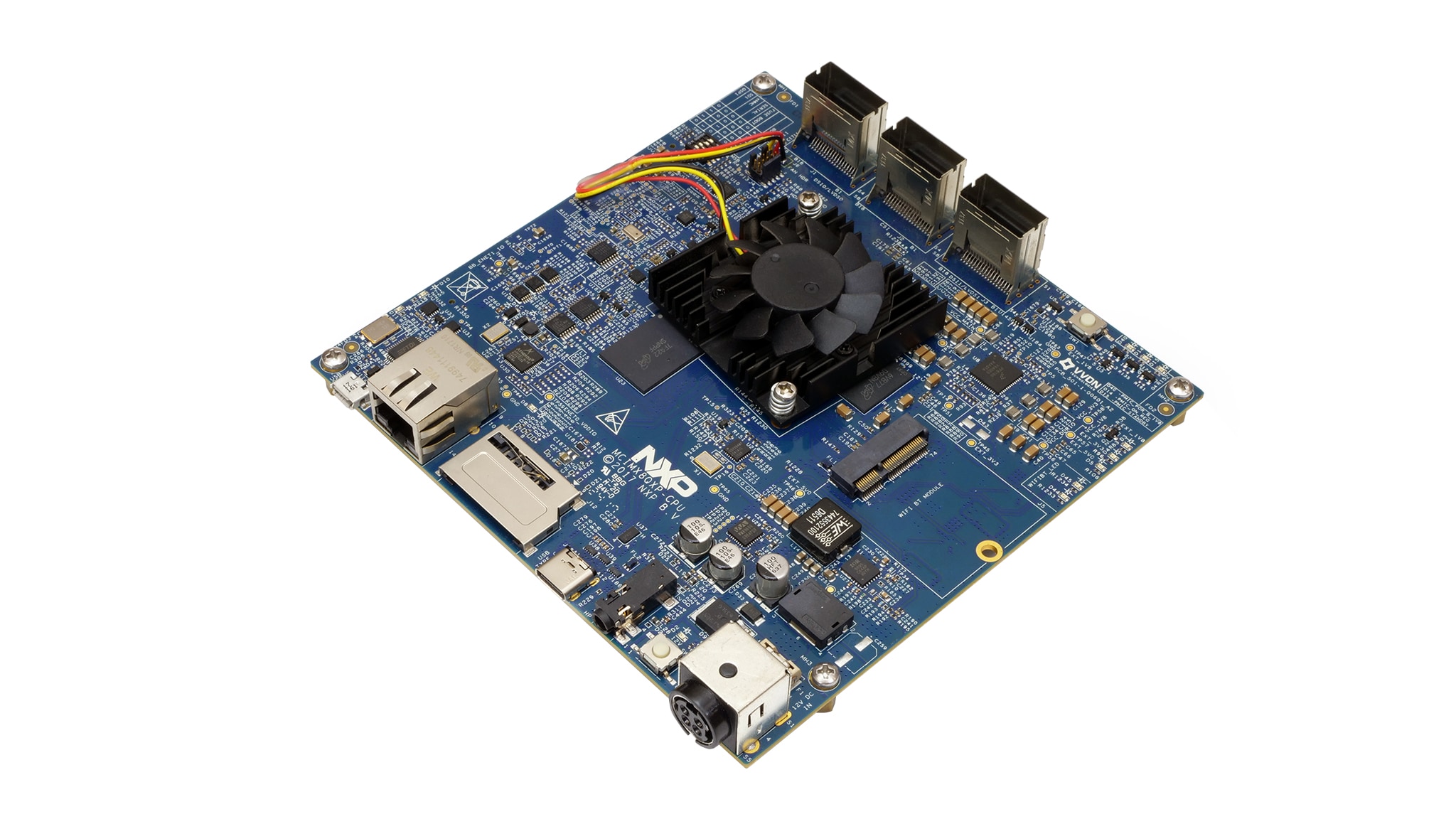

i.MX 8QuadXPlus Multisensory Enablement Kit (MEK)

Roll over image to zoom in

Product Details

Supported Devices

Processors and Microcontrollers

i.MX 8 Applications Processors

Power Management

PMICs

Features

Processor

  • NXP i.MX 8QuadXPlus
  • 4x Cortex-A35 @ up to 1.2 GHz
  • 512 MB L2 cache
  • Cortex-M4 @ 266 MHz

Power Management

  • NXP MMPF8100 PMIC

Memory

  • 3 GB LPDDR4 memory, x32
  • 32 GB eMMC 5.0
  • 64 MB Octal SPI Flash

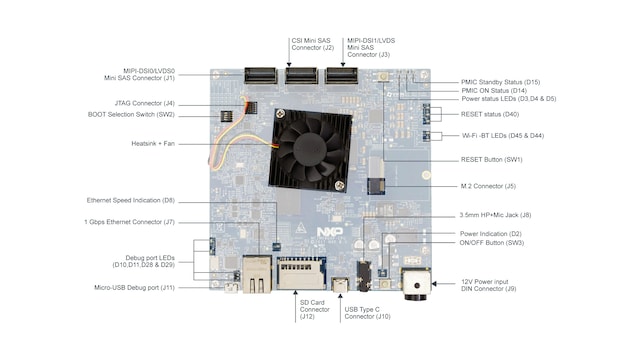

Display/Camera Connectors

  • 2x MIPI / LVDS connectors
  • Camera MIPI-CSI

Audio

  • Audio codec
  • Microphone and headphone jacks

Connectivity

  • 1x full-size SD/MMC card slot
  • 10/100/1000 Ethernet port
  • 1x USB 3.0 Type C

Debug

  • JTAG connector
  • Serial to USB connector

Additional Features

  • NXP 3-axis accelerometer and eCompass [footprint available]
  • NXP Gyroscope
  • NXP Light Sensor
  • NXP Pressure Sensor
  • RGB LED
  • Power supply

OS Support

  • Linux
  • Android
  • FreeRTOS

Expansion Connector

    M.2 Connector

  • PCIe
  • USB
  • UART
  • I²C
  • I²S

Buy Options

MCIMX8QXP-CPU-Image

Click to expand

  • MCIMX8QXP-CPU
    Active

  • i.MX 8QuadXPlus Multisensory Enablement Kit (MEK) CPU Board.

  • $1206.35 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 25
    • Shipping: Normally ships 1-2 business days
Order from distributors
MCIMX8-8X-BB-Image

Click to expand

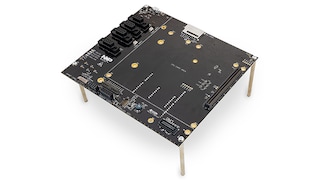

  • MCIMX8-8X-BB
    Active

  • i.MX 8QuadXPlus Multisensory Enablement Kit (MEK) Base Board.

  • $603.75 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 10
    • Shipping: Normally ships 1-2 business days
Order from distributors
MINISASTOCSI-Image

Click to expand

  • $74.75 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 12
    • Shipping: Normally ships 1-2 business days
Order from distributors

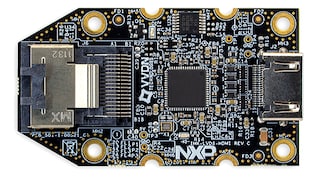

IMX-LVDS-HDMI-Image

Click to expand

  • $125.35 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 37
    • Shipping: Normally ships 1-2 business days
Order from distributors
IMX-RMII-BRPHY-Image

Click to expand

  • IMX-RMII-BRPHY
    Active

  • ENET 100 Mbps Daughter Card with NXP Auto BR-PHY.

  • $136.85 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 3
    • Shipping: Normally ships 1-2 business days
Order from distributors
MX8XMIPI4CAM2-Image

Click to expand

  • MX8XMIPI4CAM2
    Active

  • 4 camera board with miniSAS connector for OV10635 MIPI Camera.

  • $287.50 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 5
    • Shipping: Normally ships 1-2 business days
Order from distributors
IMX-MIPI-HDMI-Image

Click to expand

  • $194.35 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 31
    • Shipping: Normally ships 1-2 business days
Order from distributors
MX8-DSI-OLED1A-Image

Click to expand

  • MX8-DSI-OLED1A
    Active

  • Evaluation Kit for the i.MX 8M Applications Processor.

  • $573.85 USD
  • For a quantity of 1
    • Availability: Pending Stock
Order from distributors

Documentation

Quick reference to our documentation types.

1-5 of 65 documents

  • User Guide

    i.MX 8QuadXPlus MEK Board Hardware User's GuideGetting Started

    Account Required
  • User Guide

    Getting Started with the MCIMX8QXP-CPUGetting Started

  • User Guide

    i.MX 8QuadXPlus MEK Quick Start GuideGetting Started

    Account Required
  • Application Note

    ECC on i.MX 8 Series

  • Fact Sheet

    i.MX 8QuadXPlus Multisensory Enablement Kit Fact Sheet

Show All
