Roll over image to zoom in

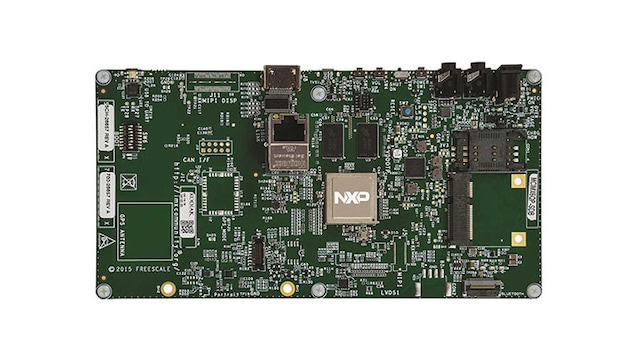

The NXP^® Smart Application Blueprint for Rapid Engineering (SABRE) board for smart devices introduces developers to multicore processing, low-power consumption and leading-edge multimedia and graphics applications on the i.MX 6 series applications processors.

The MCIMX6QP-SDB enables development on i.MX 6QuadPlus and i.MX 6DualPlus processors.
The SABRE board for smart devices provides you with a low-cost development platform which includes all primary features of the processors and serves as an example for how to layout complex, high-speed interfaces such as DDR.
It includes complete hardware design files. There are also a number of accessory boards that work with the SABRE-SDB to provide additional capabilities such as multi-touch display and Wi-Fi^® connectivity.
In addition to optimized BSPs for Android^™, Linux^®, we also provide a large portfolio of optimized video, speech and audio codecs.

Design Files

Software

Product Details

Supported Devices

Processors and Microcontrollers

i.MX 6 Processors

i.MX6DP: i.MX 6DualPlus Processor - Dual-Core, High-Performance, Advanced 3D Graphics, HD Video, Advanced Multimedia, Arm^® Cortex^®-A9 Core
i.MX6QP: i.MX 6QuadPlus Processor - Quad-Core, High-Performance, Advanced 3D Graphics, HD Video, Advanced Multimedia, Arm^® Cortex^®-A9 Core

Features

Processor

i.MX 6QuadPlus* processor*can be configured as i.MX 6DualPlus processor

Memory

1 GB DDR3 SDRAM
8 GB eMMC Flash

Connectivity

Mini PCIe connector
2x full-size SD/MMC card slots
SATA 22-pin connector
10/100/1000 Ethernet port
1x micro USB 2.0 OTG connector
JTAG connector (10-pin)
1x Serial-to-USB connector (for JTAG)

Power Management

NXP® PF0100F9 PMIC

Display

2x LVDS connectors
HDMI display interface connector
LCD expansion connector (parallel, 24-bit)
MIPI DSI connector

Audio

Stereo audio codec
Microphone and headphone jacks

Sensors

NXP MMA8451 3-Axis Accelerometer
NXP MAG3110 3D Magnetometer

Expansion Port

Serial camera connector
I²C, SSI, SPI signals

Buy Options

Click to expand

MCIMX6QP-SDB
i.MX 6QP Consumer Development Platform.

$562.35 USD
For a quantity of 1
- Availability: Pending Stock

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Documentation

Quick reference to our documentation types.

1-5 of 50 documents

^{Fact Sheet}
SABRE Board for Smart Devices - Fact Sheet Featured

PDFRev 3Feb 12, 2016956.3 KBRDIMX6SABREBRDFSEnglish
^{Supporting Information}
L4.1.15_1.1.0_LINUX_DOCSFeatured

GZRev L4.1.15_1.1.0Apr 20, 20168.9 MBL4.1.15_1.1.0_LINUX_DOCSEnglish
Sign in required
^{Supporting Information}
IMX_O8.0.0_1.0.0_ANDROID_DOCSFeatured

GZRev O8.0.0_1.0.0Dec 13, 20197.4 MBIMX_O8.0.0_1.0.0_ANDROID_DOCSEnglish
Sign in required
^{User Guide}
Getting Started with i.MX 6QuadPlus Getting Started

HTMLMar 19, 2019GS-RD-IMX6QP-SABREEnglish
^{User Guide}
i.MX 6QuadPlus SABRE Board for Smart Devices Quick Start GuideGetting Started

PDFRev 1Mar 3, 2016734.3 KBSABRE6QUADPLUSQSGEnglish
Sign in required
^{Release Note}
L5.15.71_2.2.2_LINUX_RN

PDFRev LF_L5.15.71_2.2.2Oct 31, 2023464.5 KBL5.15.71_2.2.2_LINUX_RNEnglish
^{Release Note}
L5.10.72_2.2.3_LINUX_RN

PDFRev LF_L5.10.72_2.2.3Dec 8, 2022457.8 KBL5.10.72_2.2.3_LINUX_RNEnglish
Sign in required
^{Release Note}
L5.10.72_2.2.2_LINUX_RN

PDFRev LF_L5.10.72_2.2.2Jul 19, 2022458.1 KBL5.10.72_2.2.2_LINUX_RNEnglish
Sign in required
^{Release Note}
L5.4.70_2.3.1_LINUX_DOCS

PDFRev L5.4.70_2.3.1Mar 26, 2021358.8 KBL5.4.70_2.3.1_LINUX_DOCSEnglish
Sign in required
^{Release Note}
i.MX 6Quad, i.MX 6Dual, i.MX 6DualLite, i.MX 6Solo and i.MX 6Sololite Linux L3.10.17_1.0.3 - Release Notes.

PDFRev L3.10.17_1.0.3Oct 14, 2015236.6 KBIMX6YOCTOPATCHRNEnglish
^{Release Note}
i.MX 6 Yocto Project L3.14.28_1.0.1 Patch Release Notes - Release Notes

PDFRev 0May 15, 2015229.7 KBIMX6L31428101RNEnglish
^{Release Note}
i.MX 6Quad, i.MX 6Dual, i.MX 6DualLite, i.MX 6Solo and i.MX 6Sololite Linux BSP Documentation. Patch Release Notes

PDFRev L3.0.101_4.1.1.Nov 3, 201497.2 KBIMX6LXPATCHRNEnglish
Sign in required
^{Supporting Information}
L6.1.36_2.1.0_LINUX_DOCS

ZIPRev LF_v6.1.55_2.2.0Dec 12, 202329.7 MBL6.1.36_2.1.0_LINUX_DOCSEnglish
Sign in required
^{Supporting Information}
L6.1.1_1.0.0_LINUX_DOCS

ZIPRev LF_L6.1.1_1.0.0Aug 18, 202329.6 MBL6.1.1_1.0.0_LINUX_DOCSEnglish
Sign in required
^{Supporting Information}
L6.1.22_2.0.0_LINUX_DOCS

ZIPRev LF_L6.1.22_2.0.0Aug 17, 202329.4 MBL6.1.22_2.0.0_LINUX_DOCSEnglish
Sign in required
^{Supporting Information}
L5.15.71_2.2.1_LINUX_DOC

ZIPRev LF_L5.15.71_2.2.1Jul 21, 2023887.0 KBL5.15.71_2.2.1_LINUX_DOCEnglish
Sign in required
^{Supporting Information}
L5.15.71_2.2.0_LINUX_DOCS

ZIPRev LF_L5.15.71_2.2.0Mar 2, 202323.7 MBL5.15.71_2.2.0_LINUX_DOCSEnglish
^{Supporting Information}
L5.15.52_2.1.0_LINUX_DOCS

ZIPRev LF_L5.15.52_2.1.0Sep 30, 202243.3 MBL5.15.52_2.1.0_LINUX_DOCSEnglish
Sign in required
^{Supporting Information}
L5.15.32_2.0.0_LINUX_DOCS

ZIPRev LF_L5.15.32_2.0.0Sep 29, 202221.3 MBL5.15.32_2.0.0_LINUX_DOCSEnglish
Sign in required
^{Supporting Information}
L5.4.70_2.3.0_LINUX_DOCS

ZIPRev L5.4.70_2.3.0Jul 14, 202211.8 MBL5.4.70_2.3.0_LINUX_DOCSEnglish
Sign in required
^{Supporting Information}
L5.15.5_1.0.0_LINUX_DOCS

ZIPRev LF_L5.15.5_1.0.0Jun 24, 202220.6 MBL5.15.5_1.0.0_LINUX_DOCSEnglish
Sign in required
^{Supporting Information}
L5.10.72_2.2.0_LINUX_DOCS

ZIPRev LF_L5.10.72_2.2.0Dec 17, 2021L5.10.72_2.2.0_LINUX_DOCSEnglish
Sign in required
^{Supporting Information}
L5.10.52_2.1.0_LINUX_DOCS

ZIPRev LF_L5.10.52_2.1.0Dec 15, 2021L5.10.52_2.1.0_LINUX_DOCSEnglish
Sign in required
^{Supporting Information}
L5.10.35_2.0.0_LINUX_DOCS

ZIPRev LF_L5.10.35_2.0.0Dec 15, 202115.3 MBL5.10.35_2.0.0_LINUX_DOCSEnglish
Sign in required
^{Supporting Information}
L5.10.9_1.0.0_LINUX_DOCS

ZIPRev LF_L5.10.9_1.0.0Apr 12, 202111.7 MBL5.10.9_1.0.0_LINUX_DOCSEnglish
Sign in required
^{Supporting Information}
L5.4.47_2.2.0_LINUX_DOCS

ZIPRev L5.4.47_2.2.0Jan 26, 202111.6 MBL5.4.47_2.2.0_LINUX_DOCSEnglish
Sign in required
^{Supporting Information}
P9.0.0_2.2.0_DOCS

ZIPRev P9.0.0_2.2.0Nov 19, 20207.0 MBP9.0.0_2.2.0_DOCSEnglish
^{Supporting Information}
L5.4.24_2.1.0_LINUX_DOCS

ZIPRev L5.4.24_2.1.0Jul 22, 202011.5 MBL5.4.24_2.1.0_LINUX_DOCSEnglish
Sign in required
^{Supporting Information}
L5.4.3_1.0.0_LINUX_DOCS

ZIPRev LF_L5.4.3_1.0.0Apr 7, 202011.2 MBL5.4.3_1.0.0_LINUX_DOCSEnglish
Sign in required
^{Supporting Information}
L4.19.35_1.1.0_LINUX_DOCS

ZIPRev L4.19.35_1.1.0Dec 2, 201911.2 MBL4.19.35_1.1.0_LINUX_DOCSEnglish
Sign in required
^{Supporting Information}
IMX6_N7.1.1_1.0.0_ANDROID_DOCS

GZRev N7.1.1_1.0.0Jun 14, 20198.5 MBIMX6_N7.1.1_1.0.0_ANDROID_DOCSEnglish
Sign in required
^{Supporting Information}
IMX6_M6.0.1_1.0.0_ANDROID_DOCS

GZRev M6.0.1_1.0.0Jun 14, 20198.4 MBIMX6_M6.0.1_1.0.0_ANDROID_DOCSEnglish
Sign in required
^{Supporting Information}
IMX6_M6.0.1_2.1.0_ANDROID_DOCS

GZRev M6.0.1_2.1.0Jun 14, 20198.4 MBIMX6_M6.0.1_2.1.0_ANDROID_DOCSEnglish
Sign in required
^{Supporting Information}
L4.14.78_1.0.0_LINUX_DOCS

ZIPRev L4.14.78_1.0.0May 7, 201910.1 MBL4.14.78_1.0.0_LINUX_DOCSEnglish
Sign in required
^{Supporting Information}
L4.14.98_2.0.0_LINUX_DOCS

ZIPRev L4.14.98_2.0.0May 7, 201910.2 MBimx-yocto-L4.14.98_2.0.0_gaEnglish
Sign in required
^{Supporting Information}
L4.9.88_2.0.0_LINUX_DOCS

GZRev L4.9.88_2.0.0May 30, 201810.0 MBL4.9.88_2.0.0_LINUX_DOCSEnglish
Sign in required
^{Supporting Information}
L4.9.11_1.0.0_LINUX_DOCS

GZRev L4.9.11_1.0.0Sep 21, 201710.3 MBL4.9.11_1.0.0_LINUX_DOCSEnglish
Sign in required
^{Supporting Information}
L4.1.15_1.0.0_LINUX_DOCS

GZRev L4.1.15_1.0.0Mar 31, 20168.9 MBL4.1.15_1.0.0_LINUX_DOCSEnglish
Sign in required
^{Supporting Information}
L3.14.28_1.0.0_LINUX_DOCS

GZRev L3.14.28_1.0.0Feb 5, 20169.2 MBL3.14.28_1.0.0_LINUX_DOCSEnglish
Sign in required
^{Supporting Information}
L3.14.52_1.1.0_LINUX_DOCS

GZRev L3.14.52_1.1.0Feb 5, 20169.0 MBL3.14.52_1.1.0_LINUX_DOCSEnglish
Sign in required
^{Supporting Information}
IMX6_L5.1.1_2.1.0_ANDROID_DOCS

GZRev L5.1.1_2.1.0Jan 15, 20168.6 MBIMX6_L5.1_2.1.0_ANDROID-DOCSEnglish
Sign in required
^{Supporting Information}
i.MX6 Android L5.0.0_1.0.0 BSP Documentation

GZRev L5.0.0_1.0.0Jul 1, 20158.4 MBIMX6_L500_100_ANDROID_DOCSEnglish
Sign in required
^{Supporting Information}
i.MX 6Quad, i.MX 6Dual, i.MX 6DualLite, i.MX 6Solo and i.MX 6Sololite Linux BSP Documentation. Includes Release Notes, Reference Manual, User guide. API Documentation. Linux Multimedia Codecs Documentation. Includes CODECs Release Notes and User's Guide.

GZRev L3.10.53_1.1.0Apr 13, 20159.0 MBL3.10.53_1.1.0_LINUX_DOCSEnglish
Sign in required
^{Supporting Information}
i.MX6 Android kk4.4.3_2.0.0 BSP Documentation

GZRev kk4.4.3_2.0.0Feb 6, 20157.8 MBIMX6_KK443_200_ANDROID_DOCSEnglish
Sign in required
^{Supporting Information}
i.MX 6Quad, i.MX 6Dual, i.MX 6DualLite, i.MX 6Solo and i.MX 6Sololite Android BSP Documentation

GZRev JB4.3.0_1.1.1.Oct 24, 201477.7 KBIMX6_JB43_111_ANDROID_DOCSEnglish
Sign in required
^{Supporting Information}
i.MX6 Android kk4.4.2_1.0.0 BSP Documentation

GZRev KK4.4.2_1.0.0Jul 14, 20143.1 MBIMX6_KK442_100_ANDROID_DOCSEnglish
Sign in required
^{Supporting Information}
Linux 3.10.17 BSP and MM Bundle

GZRev L3.10.17_1.0.0May 8, 201410.2 MBL3.10.17_1.0.0_LINUX_DOCSEnglish
Sign in required
^{Supporting Information}
i.MX 6Quad, i.MX 6Dual, i.MX 6DualLite, i.MX 6Solo and i.MX 6Sololite Android jb4.3_1.1.0 BSP Documentation. Includes Release Notes, User's Guide, QSG and FAQ Sheet.

GZRev jb4.3_1.1.0Dec 20, 20132.5 MBIMX6_JB43_110_ANDROID_DOCSEnglish
Sign in required
^{Supporting Information}
i.MX 6Quad, i.MX 6Dual, i.MX 6DualLite, i.MX 6Solo and i.MX 6Sololite Linux BSP Documentation. Includes Release Notes, Reference Manual, User guide. API Documentation

GZRev L3.0.35_4.1.0Sep 11, 201315.5 MBL3.0.35_4.1.0_LINUX_DOCSEnglish
Sign in required
^{Supporting Information}
i.MX 6Quad, i.MX 6Dual, i.MX 6DualLite, i.MX 6Solo and i.MX 6Sololite Linux Multimedia Codecs Documentation. Includes CODECs Release Notes and User's Guide

GZRev L3.0.35_4.1.0Sep 5, 2013859.2 KBL3.0.35_4.1.0_LINUX_MMDOCSEnglish
Sign in required

Show All

Design Resources

Related Hardware

Quick reference to our board types.

4 hardware offerings

^{Embedded Board Solutions}
HMX636

i.MX6 Mother Board for Industrial or handheld devices, Utilize it as simple as MCU, Small size 62 x 34.5 x 3.5mm ,low cost and high reliability stamps hole mount, for OD...

By Shenzhen Honmax Technology Ltd Gold Partner
^{Embedded Board Solutions}
SideKick-i.MX6-MXM SOM

SideKick is based on Our i.MX6 and is a MXM compatible CPU module for fast multimedia focused applications. The i.MX6 module has on-board memory expandable to 4GB DDR3 RA...

By Firstview Consultants Gold Partner
^{Embedded Board Solutions}
i.MX 6 Series ARM Cortex-A9 System on Module (SOM)

The SOM is an embedded single board module designed to be reliable, rugged, and low cost. The board is designed to be paired with a custom carrier board to fit specific a...

By Firstview Consultants Gold Partner
^{Embedded Board Solutions}
System on Module Carrier Board

The FirstView SOM Carrier Board is a companion board to the FirstView SOM designed to speed up development of hardware and software. The carrier allows the developer to t...

By Firstview Consultants Gold Partner

4 hardware offerings

^{Embedded Board Solutions}
HMX636

i.MX6 Mother Board for Industrial or handheld devices, Utilize it as simple as MCU, Small size 62 x 34.5 x 3.5mm ,low cost and high reliability stamps hole mount, for OD...

By Shenzhen Honmax Technology Ltd Gold Partner
^{Embedded Board Solutions}
SideKick-i.MX6-MXM SOM

SideKick is based on Our i.MX6 and is a MXM compatible CPU module for fast multimedia focused applications. The i.MX6 module has on-board memory expandable to 4GB DDR3 RA...

By Firstview Consultants Gold Partner
^{Embedded Board Solutions}
i.MX 6 Series ARM Cortex-A9 System on Module (SOM)

The SOM is an embedded single board module designed to be reliable, rugged, and low cost. The board is designed to be paired with a custom carrier board to fit specific a...

By Firstview Consultants Gold Partner
^{Embedded Board Solutions}
System on Module Carrier Board

The FirstView SOM Carrier Board is a companion board to the FirstView SOM designed to speed up development of hardware and software. The carrier allows the developer to t...

By Firstview Consultants Gold Partner

To find a complete list of our partners that support this product, please see our Partner Marketplace.

Design Files

Quick reference to our design files types.

1 design file

^{Printed Circuit Boards and Schematics}
Design files, including hardware schematics, Gerbers, and OrCAD files for i.MX 6QuadPlus (i.MX 6DualPlus emulation)

ZIPRev BOct 4, 2017 00:00:0021789 KBiMX6QP_SABRE_SDB_DESIGNFILES
Sign in required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue

Training

4 trainings

^Workshop
Kernel Internals & Debugging (EL307)

4 dayBy Timesys Gold Partner

^Workshop
Developing Linux Device Drivers (EL306)

4 dayBy Timesys Gold Partner

^Workshop
Developing Applications on Linux (EL202)

4 dayBy Timesys Gold Partner

^Workshop
Building Your Next Custom Product with the Yocto Project Framework (YP202)

2 dayBy Timesys Gold Partner

Support

What do you need help with?

Recommended Communities

i.MX Processors

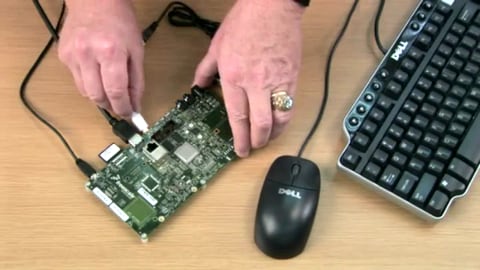

SABRE Board for Smart Devices Based on the i.MX 6QuadPlus Applications Processors

Product Details

Supported Devices

Processors and Microcontrollers

i.MX 6 Processors

Features

Processor

Memory

Connectivity

Power Management

Display

Audio

Sensors

Expansion Port

Buy Options

Documentation

Filter by

SABRE Board for Smart Devices - Fact Sheet Featured

L4.1.15_1.1.0_LINUX_DOCSFeatured

IMX_O8.0.0_1.0.0_ANDROID_DOCSFeatured

Getting Started with i.MX 6QuadPlus Getting Started

i.MX 6QuadPlus SABRE Board for Smart Devices Quick Start GuideGetting Started

Design Resources

Related Hardware

Filter By

Filter By

Design Files

Filter by

Design files, including hardware schematics, Gerbers, and OrCAD files for i.MX 6QuadPlus (i.MX 6DualPlus emulation)

Filter By

Software

Filter by

i.MX High Assurance Boot Reference Code Signing Tool

L5.10.35_2.0.0_AACP-4.6.1

L6.1.55_2.2.1_AACP-4.8.2

L5.10.52_2.1.0_AACP-4.6.2

Applications for the Linux L3.10.17_1.0.0 BSP

L5.15.71_2.2.1_MX6QDLSOLOX

L5.10.52_2.1.0_MX6QDLSOLOX

L6.6.23_2.0.0_MX6QDLSOLOX

i.MX Software and Development Tools

L5.15.71_2.2.2_MX6QDLSOLOX

L6.6.36_2.1.0_MX6QDLSOLOXnew

L6.1.55_2.2.1_MX6QDLSOLOX

L6.1.55_2.2.0_MX6QDLSOLOX

L6.1.36_2.1.0_MX6QDLSOLOX

L6.6.3_1.0.0_MX6QDLSOLOX

i.MX6 Graphics SDK – Includes sample, demo code, and documentation for working with the i.MX6X family graphics cores. Includes OpenVG™, OpenGL® ES, and GAL2D reference files

L5.10.72_2.2.0_AACP-4.6.3

i.MX 6Quad, i.MX 6Dual, i.MX 6DualLite, i.MX 6Solo and i.MX 6Sololite Linux Multimedia Codecs Sources

L5.10.9_1.0.0_AACP-4.6.0

L5.15.32_2.0.0_AACP-4.7.0

L5.4.70_2.3.0_AACP-4.5.7

L6.6.3_1.0.0_AACP-4.8.3

L5.15.52_2.1.0_AACP-4.7.1

L6.6.36_2.1.0_AACP-4.9.0new

i.MX 6Quad, i.MX 6Dual, i.MX 6DualLite, i.MX 6Solo and i.MX 6Sololite Linux Multimedia Codecs Sources

L5.4.47_2.2.0_AACP-4.5.6

L6.1.22_2.0.0_AACP-4.8.0

L5.15.5_1.0.0_AACP-4.6.4

L6.1.1_1.0.0_AACP-4.7.3

L6.6.23_2.0.0_AACP-4.9.0

IMX6_N7.1.1_1.0.0_AACPlus

L5.4.3_1.0.0_AACP-4.5.3

L6.1.55_2.2.0_AACP-4.8.2

L5.4.24_2.1.0_AACP-4.5.5

L6.1.36_2.1.0_AACP-4.8.1

L5.15.71_2.2.0_AACP-4.7.2

L6.1.1_1.0.0_MX6QDLSOLOX

L4.14.98_2.0.0_MX6QDLSOLOX

L3.14.52_1.1.0_iMX6SX

P9.0.0_2.2.0_GA_DEMO_MX6SD

L3.14.52_1.1.0_MX6QDLSOLO

IMX6_M6.0.1_2.1.0_ANDROID_DEMO_SD_BSP

P9.0.0_2.2.0_GA_AACPlus

L4.1.15_2.0.0_MX6QDLSOLO

IMX6_N7.1.1_1.0.0_ANDROID_DEMO_SD_BSP

IMX_N7.1.2_2.0.0_ANDROID_SOURCE_BSP

i.MX 6Quad, i.MX 6Dual, i.MX 6DualLite, i.MX 6Solo and i.MX 6Sololite Linux File System for the Ubuntu Images

IMX_O8.0.0_1.0.0_ANDROID_DEMO_SD

i.MX6 Graphics SDK – Includes sample, demo code, and documentation for working with the i.MX6X family graphics cores. Includes OpenVG^™, OpenGL^® ES, and GAL2D reference files
