NXP® Freedom Development Platform for Low-Voltage, 3-Phase PMSM Motor Control

FRDM-MC-LVPMSM Active

Roll over image to zoom in

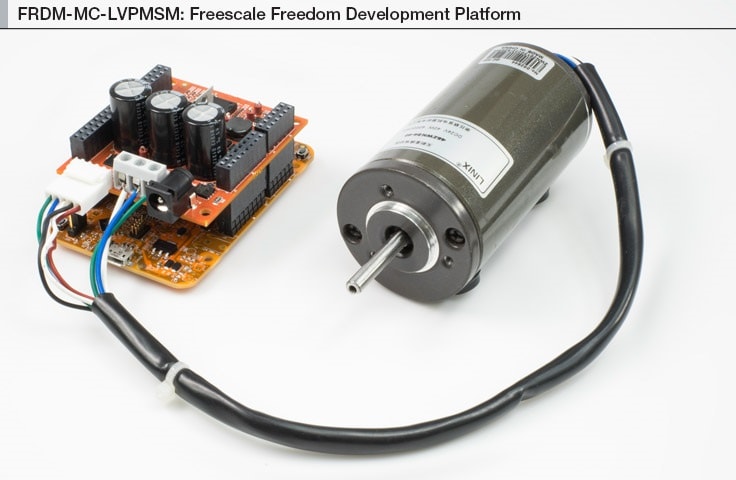

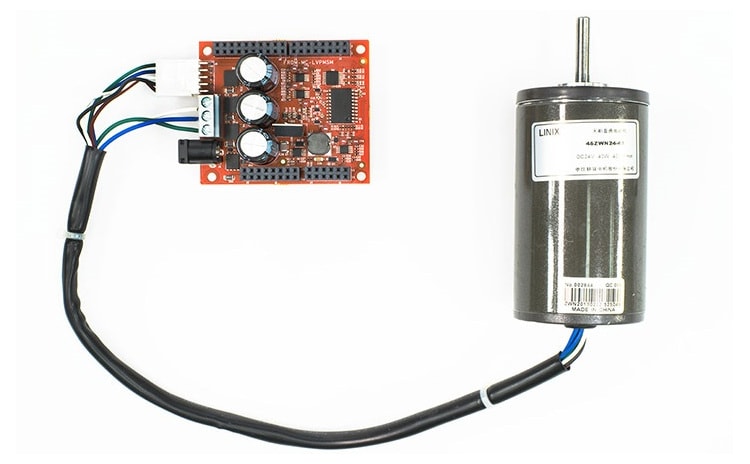

The FRDM-MC-LVPMSM low-voltage, 3-phase Permanent Magnet Synchronous Motor (PMSM) Freedom development board platform adds motor control capabilities, such as rotational or linear motion, to your design applications.

This evaluation board, in a shield form factor, when combined with NXP®s Permanent Magnet Motor Control Reference Software, effectively turns a Freedom development board platform into a complete motor control reference design, compatible with existing Freedom development platforms, FRDM-KV31F, and FRDM-KV10Z.

Product Details

Supported Devices

Processors and Microcontrollers

KV Series Arm Cortex-M4/M0+/M7

  • KV1x: Kinetis® KV1x-75 MHz,  Entry-Level 3ph FOC / Sensorless Motor Control MCUs based on Arm® Cortex®-M0+
  • KV3x: Kinetis® KV3x-100–120 MHz,  Advanced 3ph FOC / Sensorless Motor Control MCUs based on Arm® Cortex®-M4

Features

Power Management

  • Power Supply Input voltage DC: 24-48 VDC
  • Output current up to 5 amps RMS
  • Power supply reverse polarity protection circuitry
  • 5.5 VDC auxiliary power supply providing FRDM MCU board supplying
  • 3-phase bridge inverter (6-MOSFETs)
  • 3-phase MOSFET gate driver with over current and under voltage protection

Sensor

  • Analog sensing (DC bus voltage, DC bus current, 3-phase back-EMF voltage)
  • Motor speed/position sensors interface (Encoder, Hall)
  • Freedom motor control headers compatible with Arduino® Rev3 pin layout

Buy Options

FRDM-MC-LVPMSM-Image

Click to expand

  • FRDM-MC-LVPMSM
    Active

  • NXP Freedom Development Board Platform, Kinetis V MCU, PMSM Motor Control.

    • FRDM-MC-LVPMSM hardware
    • Quick Start Card
    • Additional hardware required: one 3ph BLDC motors like FRDM-MC-LVMTR, or your own motor that meets the driver specifications (not included), one 24V/5A Power-supply and a compatible Freedom microcontroller board (not included)
  • $85.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 1
    • Shipping: Normally ships 1-2 business days
