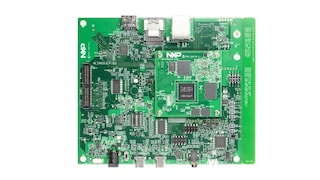

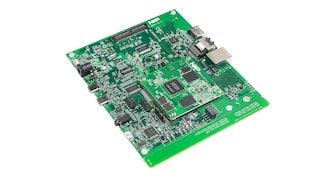

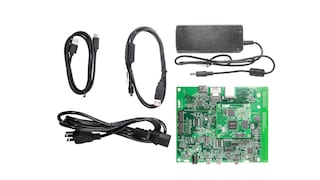

i.MX 8ULP Evaluation Kit

MCIMX8ULP-EVK

Roll over image to zoom in

The i.MX 8ULP EVK provides a platform for comprehensive evaluation of the 15x15mm i.MX 8ULP applications processors.

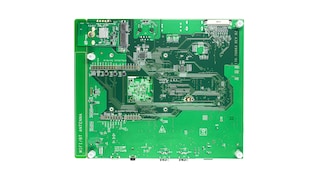

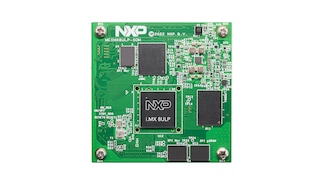

The two-board solution consists of a compute module that contains i.MX 8ULP SoC (15x15mm), LPDDR4, PMIC, Octal SPI NOR flash, Octal SPI pSRAM, and eMMC and a base board that brings out the broad connectivity that is needed for product evaluation. This kit provides an excellent starting point to accelerate your own design.

Supported Devices

Processors and Microcontrollers

i.MX 8 Applications Processors

  • i.MX8ULP: i.MX 8ULP Applications Processor Family

Power Management

5 V PMIC Solutions

  • PCA9460: 13-Channel Power Management Integrated Circuit (PMIC) for Ultra Low Power Application

Wireless Connectivity

Wi-Fi® + Bluetooth® + 802.15.4

  • IW416: 2.4/5 GHz Dual-Band 1x1 Wi-Fi® 4 (802.11n) + Bluetooth® 5.2 Solution

Features

Processor

  • i.MX 8ULP applications processor
  • Dual Cortex-A35 @800MHz
  • Cortex-M33 @216MHz
  • Cadence® Tensillica® Hifi 4 DSP @600 MHz
  • Cadence® Tensilica® Fusion DSP@200 MHz
  • EdgeLock® secure enclave

Memory

  • 2 GB LPDDR4
  • 32 GB eMMC
  • 32 MB Octal SPI Nor flash on RTD
  • 64 MB Octal SPI Nor flash on APD
  • 8MB Octal-SPI pSRAM on RTD

Power Management

  • NXP PCA9460A PMIC

Display and Camera Interfaces

  • Parallel EPDC connector
  • HDMI Output connector
  • MIPI-DSI connector
  • miniSAS MIPI-CSI connector

Wireless

  • NXP IW416: Wi-Fi 1x1 Dual-Band (2.4/5 GHz) and Bluetooth 5.2
  • Onboard PCB antenna Wi-Fi 4 (802.11n)
  • External antenna connector

Audio

  • 3.5 mm Audio stereo headphone jack
  • I2S Expansion header – J12

Connectivity

  • 2x USB C 2.0 connectors
  • 1x 10/100M ethernet RJ45 connector
  • CAN header
  • ADC/DAC connector

Debug

  • JTAG connector
  • UART via USB micro-B connector

Sensors

  • Accelerometer / Gyroscope
  • Precision pressure sensor

Security

  • Tamper detect switch

Tools and OS Support

  • Linux®
  • Android®
  • FreeRTOS™

Buy Options

MINISASTOCSI-Image

Click to expand

MINISASTOCSI
Active

MIPI-CSI Camera Module.

    $74.75 USD
    In Stock :12

    Normally ships 1-2 business days

    ADD TO CART
    Order from distributors
    RK055HDMIPI4MA0-Image

    Click to expand

    RK055HDMIPI4MA0
    Active

    5.5" LCD Panel.

    • Expansion Board: Yes
    $90.85 USD
    In Stock :8

    Normally ships 1-2 business days

    ADD TO CART
    Order from distributors
    IMXEBOOKDC5-Image

    Click to expand

    IMXEBOOKDC5
    Active

    6-inch E-paper Panel Daughter Card.

      $800.00 USD
      In Stock :5

      Normally ships 1-2 business days

      ADD TO CART
      Order from distributors
      MCIMX8ULP-EVK-Image

      Click to expand

      MCIMX8ULP-EVK
      Active

      i.MX 8ULP Evaluation Kit.

        $550.00 USD
        Pending Stock
        ADD TO CART
        Order from distributors
