EasyEVSE Entry-level Development Platform

EASYEVSE-ENTRY-LEVEL
Preproduction
  • This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information please contact your sales representative.

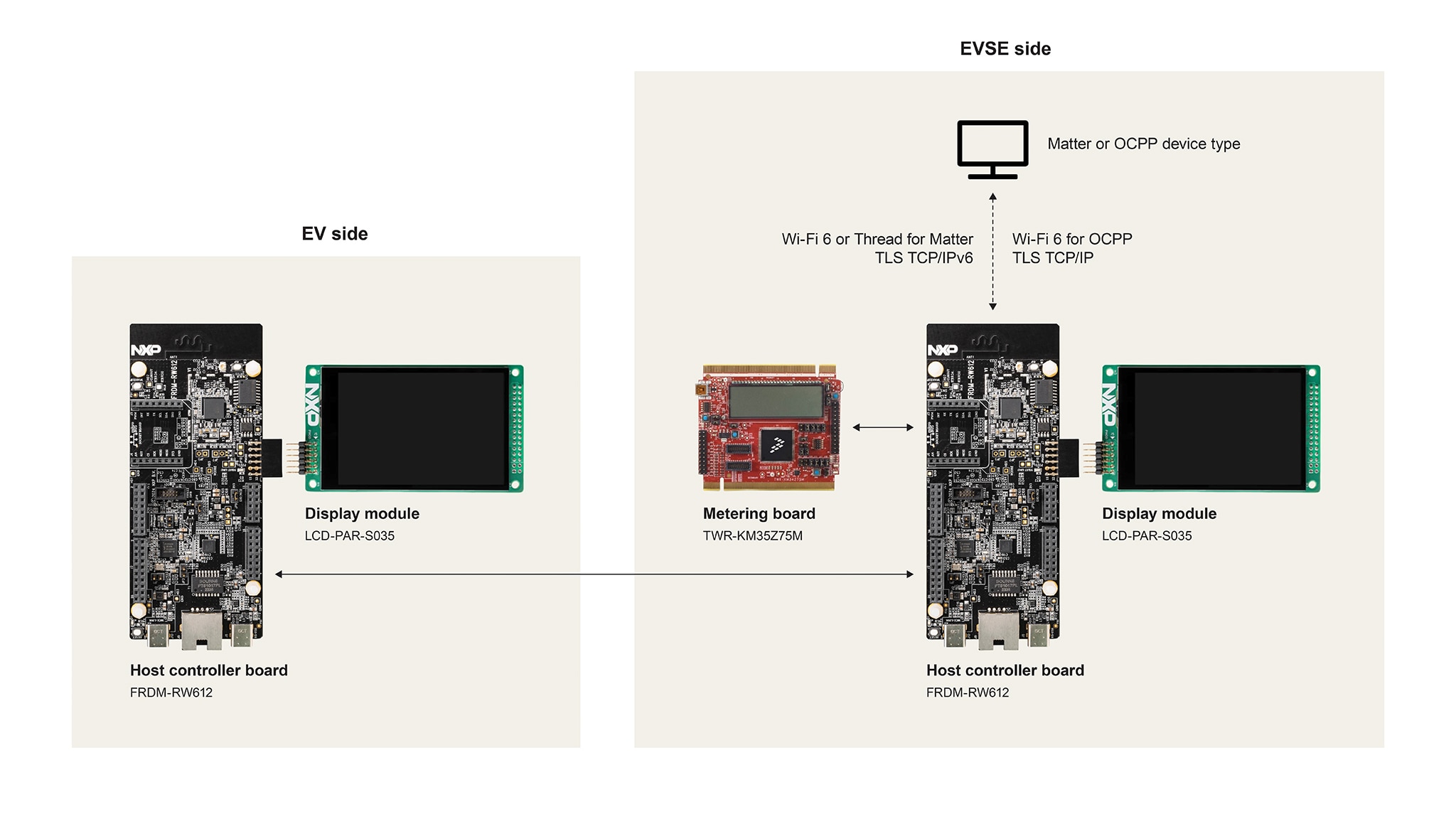

Click image to open expanded view

The EasyEVSE development platform provides hardware configuration instructions and example software to quickly set up a secure connection between a simulated electric vehicle supply equipment (EVSE) for an entry-level charging station. This modular, scalable platform is the foundation for developing secure wireless cloud connectivity and enable the on-chip secure enclave, accurate energy billing, OCPP (Open Charge Point Protocol) and Matter communication.

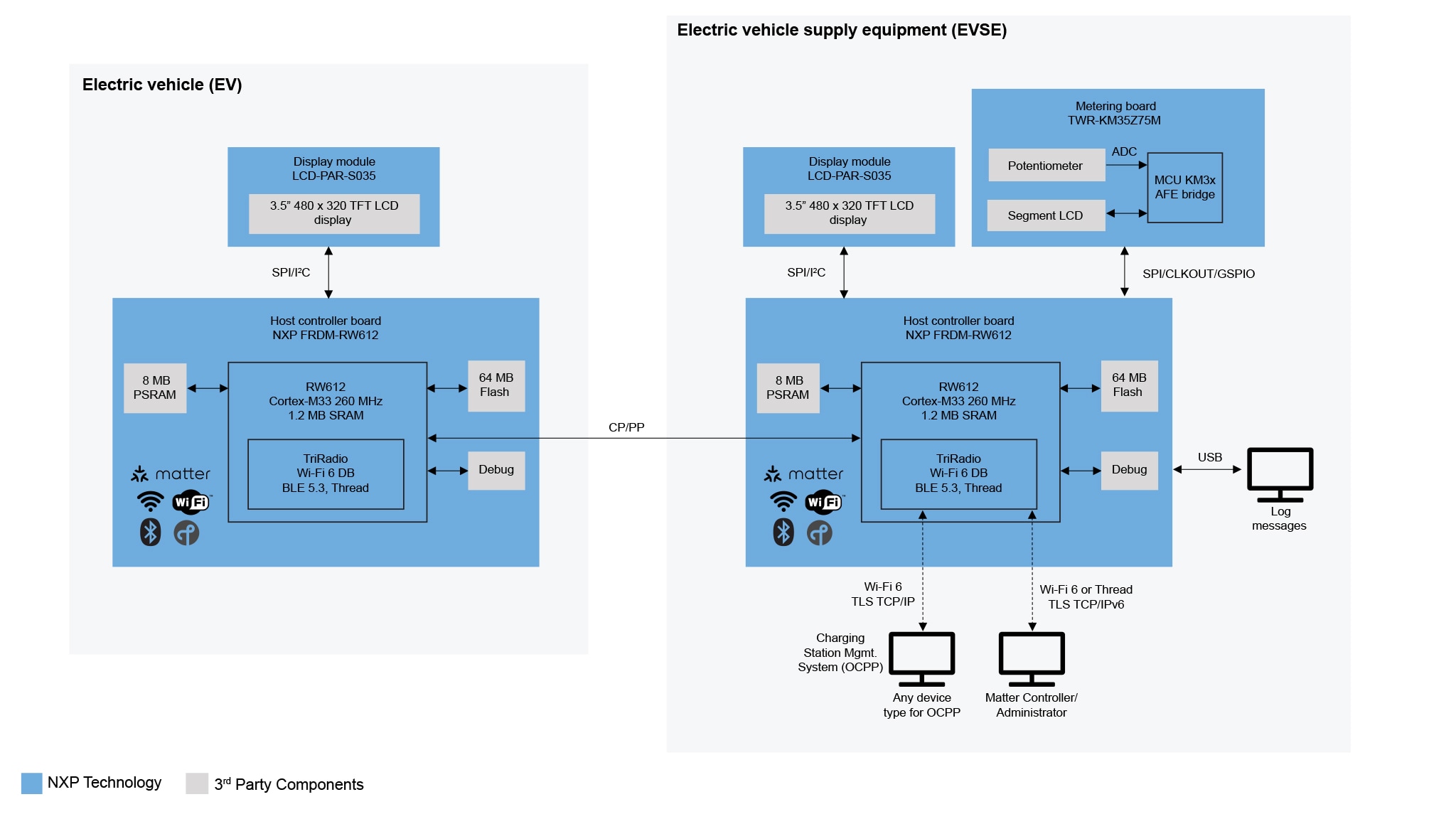

Block Diagram

EasyEVSE Entry-level Development Platform (RW612 MCU, FreeRTOS, Wi-Fi 6)

EasyEVSE Entry-level Development Platform Block Diagram
Get diagram PDF

Supported Devices

Processors and Microcontrollers

KM Series Arm Cortex-M0+

  • KM3x: 50–75 MHz Precision Metrology MCUs with Segment LCDs Based on Arm® Cortex®-M0+

Wireless Connectivity

Wi-Fi® + Bluetooth® + 802.15.4

  • RW612: Wireless MCU with Integrated Tri-radio: 1x1 Wi-Fi® 6 + Bluetooth® Low Energy 5.4 / 802.15.4

Features

Processors

  • RW612 Wireless MCU with integrated Tri-radio
    • 1x 260 MHz Arm Cortex-M33
    • On-chip 1.2 MB SRAM
    • PSRAM interface for memory expansion
    • RMMI/Fast Ethernet, USB-Type C, SPI, I²C, I²S, UART, SDIO 3.0
    • Security (secure enclave and Arm TrustZone-M)
    • Matter over Wi-Fi
    • Matter over Thread
    • RTC and watchdog timers
    • 32-bit general purpose timers/PWM
    • 16-bit ADC and 10-bit DAC
    • Dual-band, 1x1 Wi-Fi 6 radio with 20 MHz channel bandwidth
    • Bluetooth LE radio
    • 802.15.4 radio supporting Zigbee and Thread
    • LCD interface
  • MKM35Z512 Metrology MCU
    • Arm Cortex-M0, up to 75 MHz
    • 4 x 24-bit Sigma Delta ADC, 16ch, 16-bit SAR ADC, up to 4 PGA
    • Tamper detection, random number generator, MMCAU, CRC

Connectors

  • Arduino® Header (with FRDM expansion rows)
  • FRDM Header
  • Pmod™
  • mikroBUS™

Tools and OS Support

  • MCUXpresso SDK and FreeRTOS
