Sensor ToolBox Development Board for FXLS8971CF 3-Axis IoT Accelerometer

KIT-STBI-A8971
Active
Expansion Board

Roll over image to zoom in

Sensor toolbox development board for FXLS8971CF with enablement software tools.

Sensor Boards:

  • Sensor shield board: FRDM-STBI-A8971 is a sensor add-on/expansion shield board for FXLS8971CF 3-axis accelerometer for application requiring better performance over tempeature which can be used with any NXP FRDM MCU evaluation board with Arduino compatible expansion connectors
  • Evaluation kit: KIT-STBI-A8971, sensor shield board can be kitted with FRDM-K22F MCU board to enable quick customer evaluation and development using sensor toolbox enablement software tools

Embedded Software Framework:

Evaluation and Visualization Software:

Supported Devices

Sensors

Accelerometers

  • FXLS8971CF: ±2g/±4g/±8g/±16g, Low Power 12-Bit Digital Accelerometer

Features

Demonstration / Custom Kits

  • Enables 'out of the box' demos and evaluation using the FreeMASTER sensor tool
    • Graph visualization, register level analysis, real-time interrupt evaluation and data logging
  • Enables embedded sensor project development using IoT sensing SDK
    • Example out-of-box projects for sensors with ultra-low power motion wakeup, interrupt, polling and FIFO modes using I²C, SPI

Sensor Shield Board

  • Compatible with Arduino® and most NXP FRDM development boards
  • Supports I²C and SPI communication interface with host MCU
  • Supports hardware configurability to switch accelerometer mode (normal vs motion detect) and I²C/SPI interface mode
  • Support multiple test points on the board

Buy Options

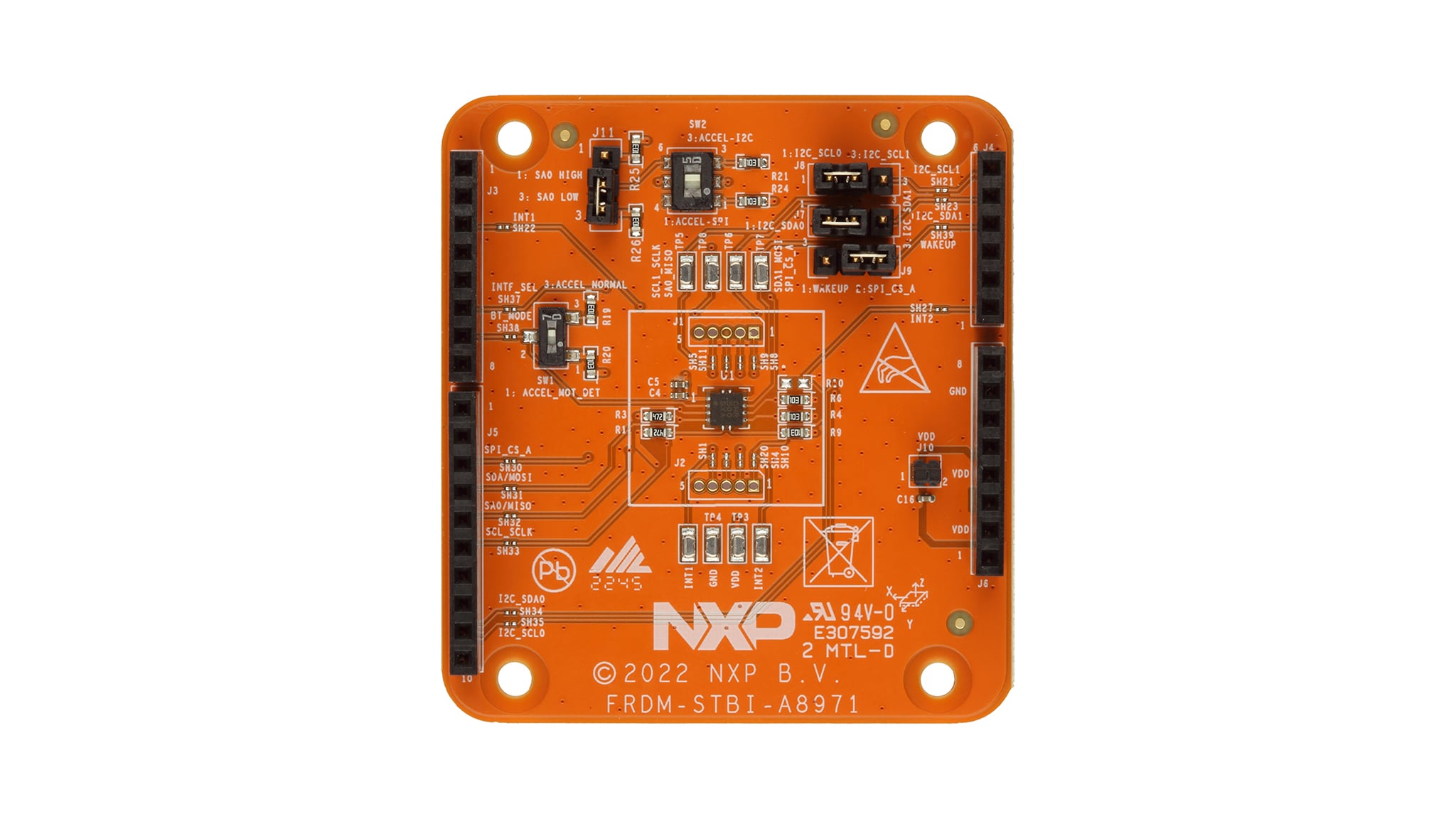

FRDM-STBI-A8971-Image

Click to expand

FRDM-STBI-A8971
Active

Sensor ToolBox Development Board for FXLS8971CF 3-Axis IoT Accelerometer.

  • Expansion Board: Yes
  • Peripherals: SPI, I²C
  • Connector Type: Arduino-Compatible
  • Power Management: Low Power Sensor
$18.00 USD
In Stock>100

Normally ships 1-2 business days

ADD TO CART
Order from distributors
KIT-STBI-A8971-Image

Click to expand

KIT-STBI-A8971
Active

Sensor ToolBox Development Board for FXLS8971CF 3-Axis IoT Accelerometer.

  • Connector Type: Arduino-Compatible
  • Power Management: Low Power Sensor
$70.00 USD
In Stock :4

Normally ships 1-2 business days

ADD TO CART
Order from distributors
