15 W AUTOSAR Wireless Charging Transmitter

WCT-15WTXAUTOS

Roll over image to zoom in

The NXP® 15 W multi-coil transmitter reference platform is designed for AutoSAR in-vehicle wireless charging applications based on the NXP MWCT101xS controller IC family. The platform uses auto grade components and other vital automotive functions including AUTOSAR software and drivers to ensure the system can be seamlessly integrated. Complies with the Wireless Power Consortium's latest Qi® specification and is certified as a MP-A9 transmitter type.

15W AutoSAR Wireless Charging Transmitter - Fact Sheet

Product Details

Select a section:

Block Diagram

AutoSAR Wireless Charging

15 W AUTOSAR Automotive Wireless Charging Transmitter Block Diagram
Get diagram PDF

Supported Devices

Security and Authentication

Secure Car Access

  • NCF3340AHN: Automotive Qualified NFC Controller with NCI Interface

Power Management

Wireless Power

  • MWCT101xS: 15 Watt AutoSAR Wireless Charging Transmitter ICs for Automotive Applications

Safety SBCs

  • UJA113xHW: Buck/Boost High-Speed CAN/Dual LIN System Basis Chip Family

Features

  • Free positioning (multi coil)
  • On chip digital demodulation (reduced BOM)
  • Secure firmware updates in the field
  • Fixed frequency rail voltage control (better EMC)
  • Q-factor and power loss FOD methods
  • Key fob and AM band interference avoidance
  • AEC-Q100 grade 2 certification
  • Temperature sensing
  • CAN, LIN interfaces
  • Wireless Power Standard
    • Qi 1.2.4
  • Power Profile
    • EPP (15 W)
  • Transmitter Type
    • MP-A9 (all types supported)
  • Operating Frequency
    • 127.7 kHz
  • Safety
    • Foreign objects detection
  • Efficiency
    • 75%
  • Device
    • MWCT101xS
  • Memory
    • 512/1024/2048 kB
  • CAN
    • CAN-FD
  • Safety
    • NFC card detection
  • Connectivity
    • Bluetooth®/Wi-Fi® pairing
  • Convenience
    • Engine start function, personalization

Buy Options

WCT-15WTXAUTOS-Image

Click to expand

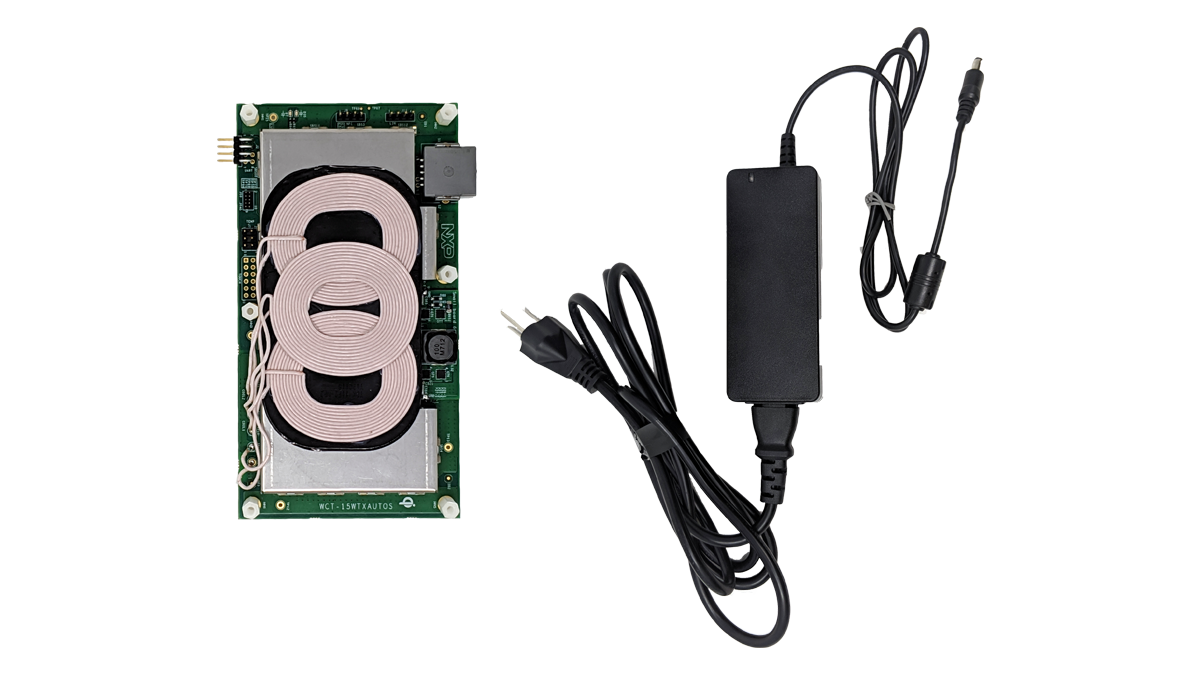

  • WCT-15WTXAUTOS

  • 15 W AUTOSAR Wireless Charging Transmitter.

  • The WCT-15WTXAUTOS transmitter design includes the necessary hardware and software files to design for automotive applications

    Kit contains:

    • Wireless power evolution board
    • 12 V power adapter
Request this item
