K22 Wireless Player Reference Design

RDWLPLAYER

Roll over image to zoom in

Product Details

Block Diagram

K22 Wireless Player

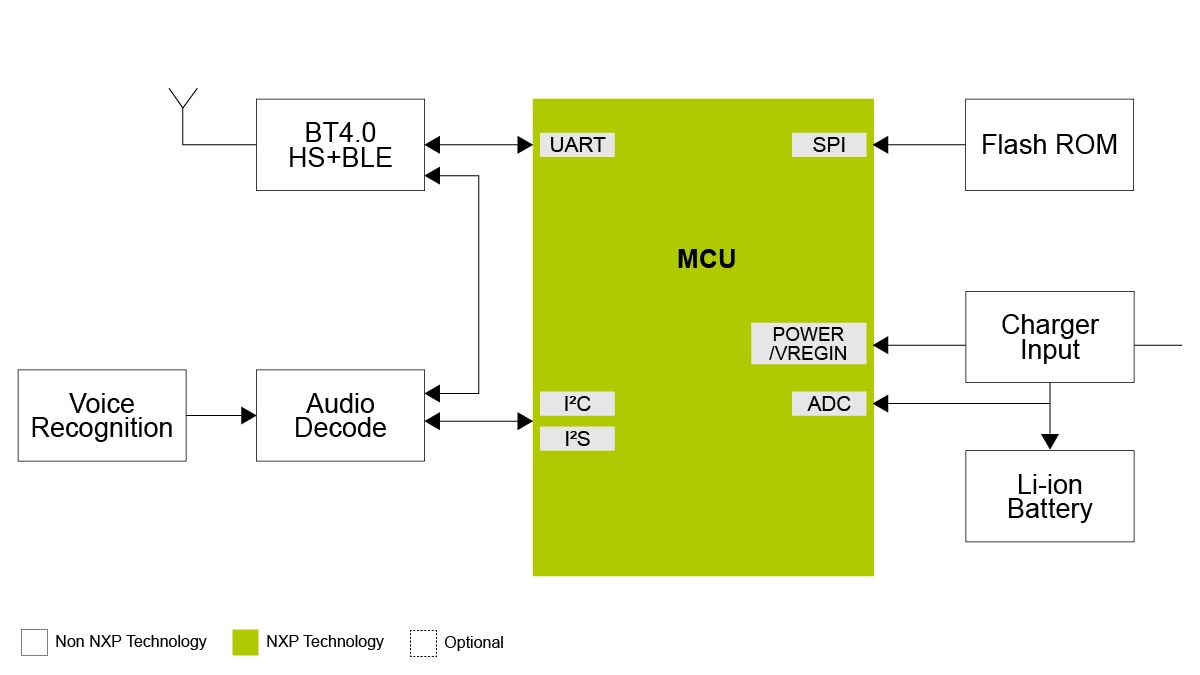

RDWLPLAYER Block Diagram

Supported Devices

Processors and Microcontrollers

K2x / KS2x USB

Features

Features

  • K22 MCU family based on the Arm® Cortex®M4 core, integrated floating point unit, DSP instruction set, design specially for audio decoding
  • Optional 3.4 - 4.2 V rechargeable battery
  • MCU internally integrated Bluetooth HCI driver and A2DP, HFP, SPP and other protocols

Buy Options

  • FRDM-K22F

  • Freedom Development Board for Kinetis K02 and K22 (100-120 MHz, 128-512 KB Flash) MCUs.

  • $47.35 USD
  • For a quantity of 1
    • Availability: Pending stock
Buy from NXPBuy From Distributor
  • TWR-K22F120M

  • Tower System Development Board for Kinetis K02 and K22 (100-120 MHz, 128-512 KB Flash) MCUs.

  • $228.85 USD
  • For a quantity of 1
Buy From Distributor

Design Resources

Select a section:

Software

1 software file

Note: For better experience, software downloads are recommended on desktop.
