S32R274 end-to-end Reference Design Kit

Engineered for high-performance Automotive Radar

Overview

The RDK-S32R274 is an open and flexible reference design engineered for supporting developers to prototype high-performance automotive-grade radar applications rapidly.

Developed in partnership with Colorado Engineering Inc. and based on the 32-bit Power Architecture^® S32R274 radar microcontroller, the fully-integrated TEF8102 RFCMOS transceiver, and the FS8410 Power Management IC, the RDK-S32R274 helps to enable both adaptive cruise control (ACC) and automatic emergency braking (AEB) New Car Assessment Program (NCAP) up to ISO 26262 ASIL B applications.

The RDK-S32R274 works with the end-to-end automotive-qualified radar software Development kit (rSDK). Also, its expansion and antenna modules can be optimized to create a customized development platform suited to specific customer radar application requirements.

RDK-S32R274 Automotive Radar Reference Platform - Fact Sheet

MoreLess

RDK-S32R274 reference design enclosure

FRONT - RDK-S32R274 reference design

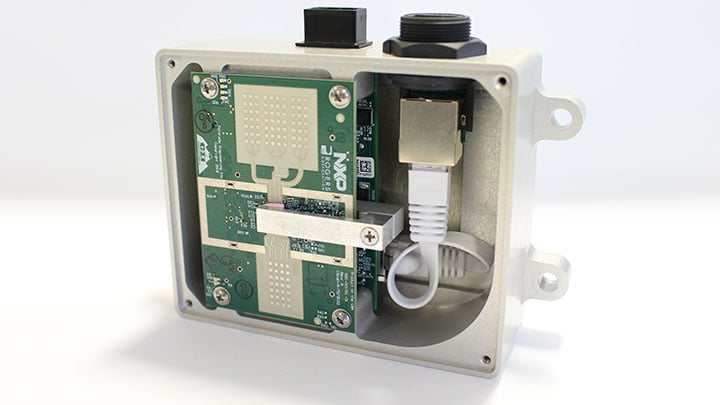

BACK - RDK-S32R274 reference design

Complete radar solution

Automotive-grade Hardware and Software

Featuring rSDK

End-to-end Radar Software Development Kit

Functional Safety

Targeting up to ISO 26262 ASIL B

Specifications

S32R274 end-to-end Reference Design Kit, Engineered for high-performance Automotive Radar - Block Diagram

MCU Boards

S32R2X : S32R26 and S32R27 microcontrollers for High-Performance Radar

PMIC

FS8400 : Safety System Basis Chip for S32 Microcontrollers, Fit for ASIL B
FS8500 : Safety System Basis Chip for S32 Microcontrollers, Fit for ASIL D

Radar Boards

TEF810X

Leverages market leading Performance/Watt radar processor
Automotive-grade end-to-end reference design, following automotive hardware design methodologies.
Full-design platform enabling engineers to optimize up to ISO 26262 ASIL B applications
Enables NCAP applications: ACC or AEB
Helps to rapidly reduce time-to-market
Features the automotive-grade NXP radar software development kit (rSDK)

Automotive Radar Systems
Adaptive cruise control (ACC)
Automotive emergency braking (AEB)
