Two-Phase Power Meter Reference Design


Roll over image to zoom in

Product Details

Block Diagram

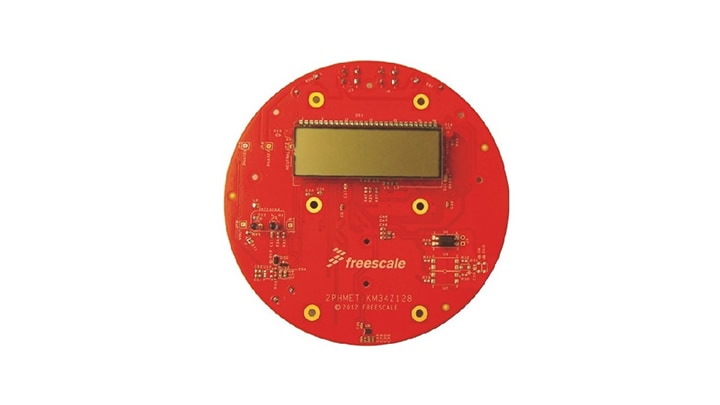

Two Phase Meter

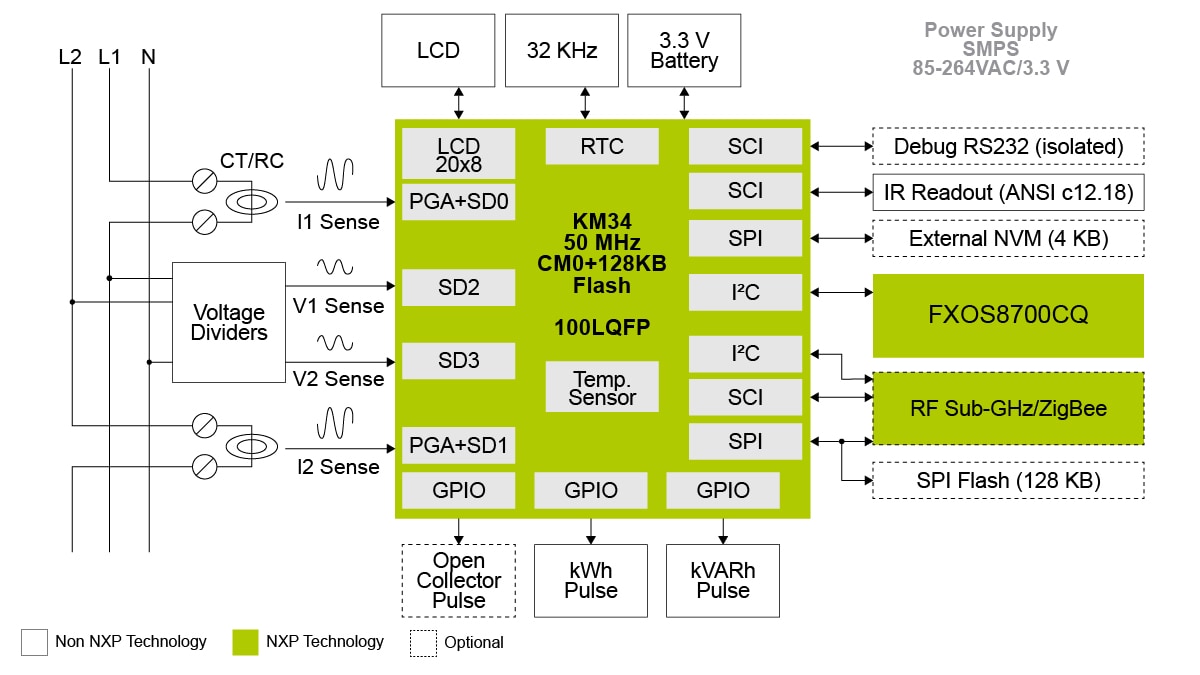

Two Phase Power Meter Reference Design Block Diagram

Supported Devices

Wireless Connectivity

Multiprotocol MCUs



Processors and Microcontrollers

KM Series Arm Cortex-M0+


  • 200 A current range (CL200, TA 30A)
  • 85 to 264 V, 50/60 Hz voltage range
  • Two types of installation: Form 2S or Form 12S
  • Accuracy class: ANSI C12.20-2002 Class 0.2
  • Line frequency measurement (for precision zero-cross detection)
  • Current transformer sensing circuit implementation for each phase
  • Low-power modes including the use of built-in RTC (Li-battery backup)
  • AMI expansion header supporting 2.4 GHz 802.15.4 or HAN/NAN (with 6loWPAN IPv6) communications for AMR and remote control
  • EMC proven design (ANSI C62.41, IEC 61000-4-4)
  • Peripherals
    • 8 x 20 segment LCD, including charge pump
    • LED pulse outputs (kWh, kVARh)
    • Isolated (4 kV) RS-232 port for monitoring, parameterization and firmware upgrade (optional)
    • Infrared optical port according to ANSI C12.18-2006 (optional)

Buy Options


Quick reference to our documentation types.

1-5 of 6 documents

Show All

Design Resources

Select a section:

Design Files

3 design files

  • Printed Circuit Boards and Schematics

    Two Phase Power Meter Bill of Materials

  • Printed Circuit Boards and Schematics

    KM34Z128 1P3W Power Meter Schematics

  • Printed Circuit Boards and Schematics

    Two Phase Power Meter Design Files


1 software file

  • Debugging and Visualization Tools

    FreeMASTER tool 2.5 – Installer
