Battery Management Systems (BMS) Hardware Solutions

Battery Management Systems (BMS) solutions for automotive and industrial applications including 12 V, 48 V, High-Voltage and Battery Junction applications. They are optimized in hardware and software for functional safety implementation for up to ASIL D safety levels. They enable a platform approach for all xEV applications and help to ensure safety, accurately monitor energy levels and increase battery life in your designs.


Cell Supervision Circuits (CSC)

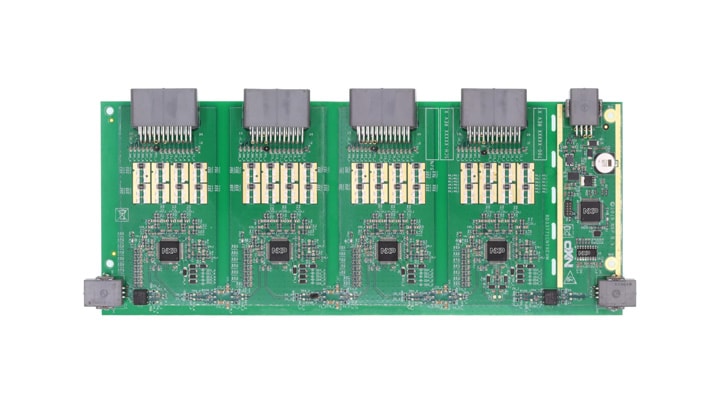

RD33771CNTREVM image

RD33771CNTREVM

High voltage mixed centralized or distributed architecture BMS

RD33771CDSTEVB image

RD33771CDSTEVB

14-channel Li-Ion BCC with isolated daisy chain interface with MC33771C BCC

FRDM33771CSPEVB image

FRDM33771CSPEVB

14-channel high performance Li-Ion BMS with SPI interface using MC33771C BCC

FRDMDUAL33664EVB image

FRDMDUAL33664EVB

Dual TPL interface between MCU and isolated network with loopback using MC33664 device

FRDM33771BTPLEVB image

FRDM33771BTPLEVB

14-channel Li-ion battery cell controller with isolated daisy chain interface using MC33771B BCC

FRDM33664BEVB image

FRDM33664BEVB

TPL interface between MCU and isolated network using MC33664 device

FRDM33772BTPLEVB image

FRDM33772BTPLEVB

6-channel Li-Ion BCC with isolated daisy chain interface using MC33772B BCC


Battery Management Unit (BMU)


MPC5775B-EVB image

MPC5775B-EVB

Low-cost development boards engineered for battery applications

RDVCU5775EVM image

RDVCU5775EVM

Reference design for high-voltage BMS and vehicle control unit integration for ASIL D applications


Battery Pack Monitoring (BPM)

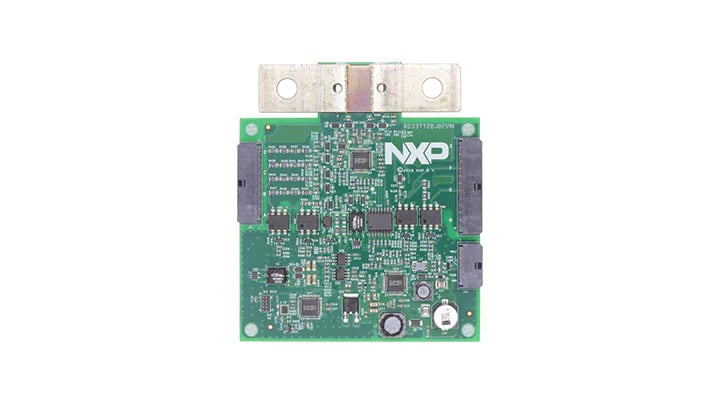

RD33772BJBEVM image

RD33772BJBEVM

High Voltage Battery Junction Box RD with functional safety, voltage, current, temperature and insulation measurement functions

FRDM33772BTPLEVB image

FRDM33772BTPLEVB

6-channel Li-Ion BCC with isolated daisy chain interface using MC33772B BCC

FRDM33664BEVB image

FRDM33664BEVB

Transceiver physical layer (TPL) interface between MCU and isolated network using MC33664 device


48 V BMS Solutions


RD33771-48VEVM image

RD33771-48VEVM

48 V mild hybrid auxiliary battery management system reference design

FRDM33771CSPEVB image

FRDM33771CSPEVB

14-channel high performance Li-Ion BMS with SPI interface using MC33771C BCC

FRDM33771BSPIEVB image

FRDM33771BSPIEVB

14-channel Li-ion battery cell controller with SPI interface using MC33771B BCC

FRDM33771BTPLEVB image

FRDM33771BTPLEVB

14-channel Li-ion battery cell controller with isolated daisy chain interface using MC33771B BCC

FRDM33664BEVB image

FRDM33664BEVB

Transceiver physical layer (TPL) interface between MCU and isolated network using MC33664 device


12 V BMS Solutions


NEWTEC-NTBMS image

NEWTEC-NTBMS

12 V battery management system for Li-Ion batteries supporting ASIL C safety levels

RDDRONE-BMS772 image

RDDRONE-BMS772

Standalone BMS reference design suitable for mobile robotics such as drones and rovers, supporting 3 to 6 cell batteries

RD9Z1-638-4LI image

RD9Z1-638-4LI

4-Cell Li-Ion BMS with high EMC performance and CAN interface using MM9Z1_638 sensor

RD9Z1-638-12V-C image

RD9Z1-638-12V-C

12 V lead-acid BMS with high EMC performance with CAN interface using MM9Z1_638 sensor

RD9Z1-638-12V image

RD9Z1-638-12V

12 V lead-acid BMS with high EMC performance with LIN interface using MM9Z1_638 sensor

FRDM33772BSPIEVB image

FRDM33772BSPIEVB

6-channel BCC for Li-Ion battery applications with SPI interface using MC33772B BCC

KIT9Z1J638EVM image

KIT9Z1J638EVM

Battery sensor for current, voltage and temperature with CAN/LIN interface using MM9Z1_638 sensor


Tools


BATT-6EMULATOR image

BATT-6EMULATOR

6-cell battery pack emulator made to be connected to MC33772B BCC EVB’s

BATT-14CEMULATOR image

BATT-14CEMULATOR

14-cell battery pack emulator made to supply MC33771C BCC EVBs

BATT-14EMULATOR image

BATT-14EMULATOR

14-cell battery pack emulator made to supply MC33771B BCC EVBs

BATT-14EXTENDER image

BATT-14EXTENDER New

Allows for the connection up to four evaluation boards using only one single battery emulator
