FRDM-MC36XSD-EVB: Freedom analog board Multi-Platform based on MC06XSD200 eXtreme Switch

Overview

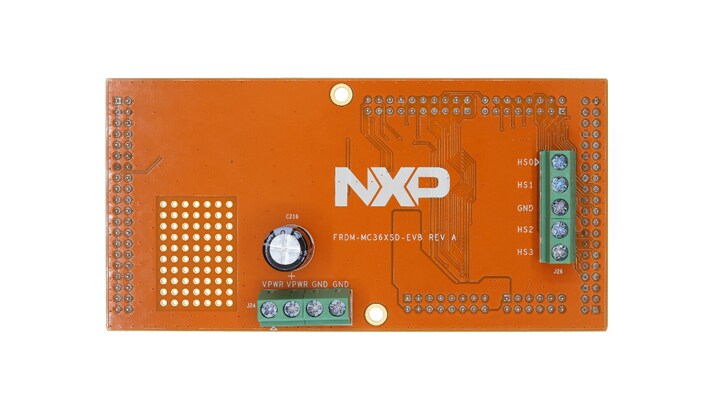

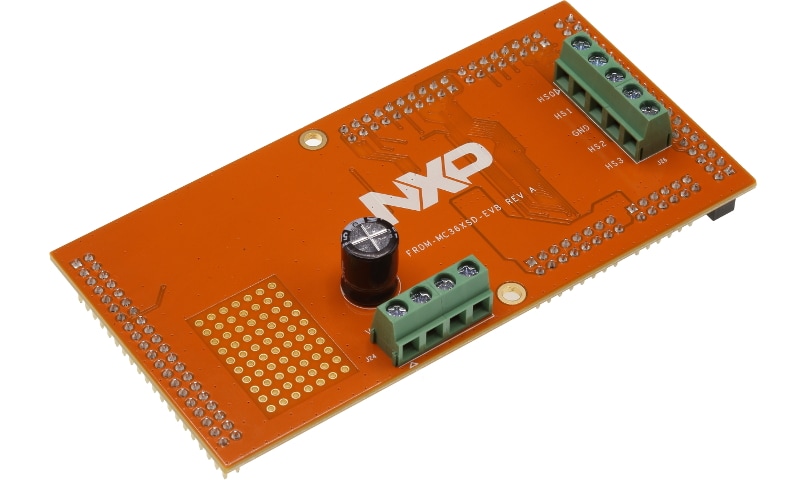

NXP's Freedom board FRDM-MC36XSD-EVB is an hardware for evaluation and development for many industrial application. It features 4 power outputs 6mOhm that can drive up to 12A under 36V max operating voltage.
Power outputs are configurable, protected and give some key diagnostics to the user.

This board is compatible with multiple hardware type such as Arduino^®, NXP's Freedom MCUs, RIotBoard or Raspberry Pi. Basic Software bricks are provided to ease your development for these different environments.

MoreLess

FRDM-MC36XSD-EVB - Freedom analog board Multi-Platform

Specifications

Supported Devices

Power Management

MC36XSD : 36 V Industrial Low R_DSON eXtreme Switch

MoreLess

Technical and Functional Specifications

Connectivity	Arduino^®, Raspberry Pi, and RIotBoard connectors
Power Management	4 power channels with up to 12 A steady-state current per channel Separate bulb and DC motor latched over-current handling Sleep mode with minimal supply current (< 20 µA @ 24 V) Normal operating range: 8.0 - 36 V, extended range: 6.0 - 58 V
	Individually programmable internal/external PWM clock signals Overcurrent, short-circuit, and overtemperature protection with programmable auto-retry functions Accurate temperature and current sensing Open-load detection (channel in OFF and ON state), also for LED applications 3.3 V 16-bit SPI port for device control, configuration, and diagnostics

Buy

FRDM-MC36XSD-EVB ^Active
FRDM Exp bd - 36 V Multipurpose Industrial Low Rdson Lighting
- Freedom board
- Warranty card
- Quick start guide

FRDM-MC36XSD-EVB
1 @ US
$17.20

Use Coupon

Availability?

Distributor

Distributor Name	Region	Inventory	Inventory Date

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Don't have an NXP coupon? You can purchase this product from one of our authorized distributors.

Design Resources

Get Started

Getting Started with the FRDM-MC36XSD-EVB

User Guide

Everything you need to get started with the FRDM-MC36XSD-EVB Freedom analog board

KTFRDMMC36XSDEVBUG, FRDM-MC36XSD-EVB evaluation board - User's guide^{(REV
1.0
)}
- 13.7 MB
- KTFRDMMC36XSDEVBUG
- [ English ]

Documents

Data Sheet ( 5 )

MC10XSD200, Dual 10 mOhm High Side Switch - Data Sheet^{(REV
3.0
)}

The 10XSD200 device is part of a 36 V dual high side switch product family with integrated control, and a high number of protective and diagnostic functions. It has been designed for industrial applications. The low RDS(ON) channels (<10 mOhm) can control different load types; bulbs, solenoids, or DC motors. Control, device configuration, and diagnostics are performed through a 16-bit serial peripheral interface (SPI), allowing easy integration into existing applications.
- PDF
- 3.3 MB
- 17 Dec 2013
- MC10XSD200
- [ English ]
- Supported Parts
MC50XSD200, Dual 24 V, 50 mOhm High-side Switch - Data Sheet^{(REV
2.0
)}

The 50XSD200 is part of a 24 V dual high-side switch product family with integrated control, and a high number of protective and diagnostic functions.
- PDF
- 1.8 MB
- 30 Jan 2015
- MC50XSD200
- [ English ]
- Supported Parts
MC06XSD200, Dual 6.0 mOhm High Side Switch - Data Sheet^{(REV
3.0
)}

The 06XS4200 device is part of a 36 V dual high side switch product family with integrated control and a high number of protective and diagnostic functions. It has been designed for industrial applications. The low RDS(ON) channels (<6 mOhm) can control different load types; bulb lamps, solenoids, or DC motors. Control, device configuration, and diagnostics are performed through a 16-bit SPI interface, allowing easy integration into existing applications.
- PDF
- 3.4 MB
- 17 Dec 2013
- MC06XSD200
- [ English ]
- Supported Parts
MC16XSD200, Dual 16 mOhm High Side Switch - Data Sheet^{(REV
4.0
)}

The 16XSD200 device is part of a 36 V dual high side switch product family with integrated control, and a high number of protective and diagnostic functions. It has been designed for industrial applications. The low RDS(ON) channels (<16 mOhm) can control different load types; bulbs, solenoids, or DC motors. Control, device configuration, and diagnostics are performed through a 16-bit serial peripheral interface (SPI), allowing easy integration into existing applications.
- PDF
- 1.1 MB
- 17 May 2018
- MC16XSD200
- [ English ]
- Supported Parts
MC22XSD200, Dual 24 V, 22 mOhm High-side Switch - Data Sheet^{(REV
2.0
)}

The 22XSD200 is part of a 24 V dual high-side switch product family with integrated control, and a high number of protective and diagnostic functions.
- PDF
- 1.8 MB
- 30 Jan 2015
- MC22XSD200
- [ English ]
- Supported Parts

User Guide ( 1 )

KTFRDMMC36XSDEVBUG, FRDM-MC36XSD-EVB evaluation board - User's guide^{(REV
1.0
)}
- PDF
- 13.7 MB
- 30 Aug 2016
- KTFRDMMC36XSDEVBUG
- [ English ]

Design Resources

Design Tools & Files ( 1 )

Printed Circuit Boards and Schematics ( 1 )

FRDM-MC36XSD-EVB - Printed Circuit Board bill of materials and design files ^{(REV
1
)}

Available files and documentation for printed circuit board manufacturing
- ZIP
- 24.1 kB
- 2016-08-29 00:00:00
- FRDM-MC36XSD-EVB_BOM_SCH
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file size downloads.
- View Queue

Software

Development Software ( 3 )

IDE and Build Tools ( 2 )

CodeWarrior^® for MCUs (Eclipse IDE) - ColdFire^®, 56800/E DSC, Qorivva^® 56xx, RS08/S08, S12Z - 11.1

Our CodeWarrior for MCU's v11 integrates the development tools for the ColdFire. ColdFire+, DSC, Kinetis. Qorivva, RS08, S08 and S12Z architectures into a single product based on the Eclipse open development platform. Eclipse offers an excellent framework for building software development environments and is a standard framework used by many embedded software vendors.

Buy Options
Design Studio Integrated Development Environment (IDE)

The Kinetis Design Studio is a complimentary, integrated development environment for Kinetis MCUs that enables robust editing, compiling and debugging.

Download Options

Code Generation Tools ( 1 )

Processor eXpert Software example with CodeWarrior 10.6 and KL25Z^{(REV
1.0
)}
- ZIP
- 1.7 MB
- 2016-07-29 00:00:00
- FRDM-MC36XSDEVB-DEMO
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file size downloads.
- View Queue

Embedded Application Software ( 2 )

Embedded Application Software - miscellaneous ( 2 )

RIotBoard SW example with Python^{(REV
1.0
)}
- ZIP
- 1600000 KB
- 2016-02-01 00:00:00
- RIOT-BOARD-EXP
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file size downloads.
- View Queue
Raspberry Pi Operating System with SW example using Python^{(REV
1.0
)}
- ZIP
- 1600000 KB
- 2016-02-01 00:00:00
- RAPI-OS-EXP
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file size downloads.
- View Queue
