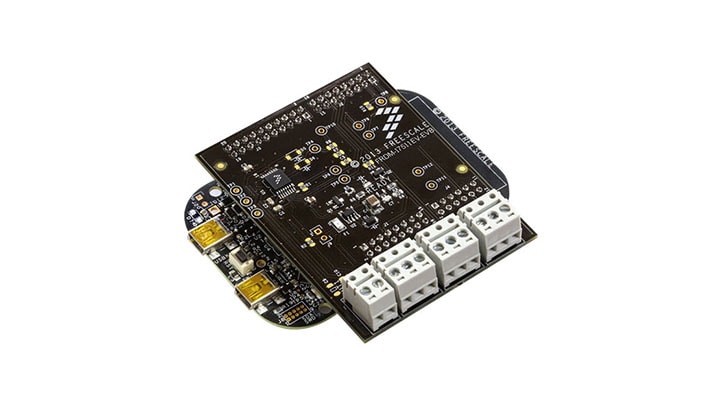

Freedom Expansion Board for MPC17511, H-Bridge, Brushed DC Motor Driver

FRDM-17511EV-EVB

Roll over image to zoom in

This Freedom evaluation board supports the MPC17511 monolithic H-Bridge driver for small Brushed DC-motors. It provides a small, low-power, cost-effective evaluation and development system for quick application prototyping and demonstration of Kinetis® MCU families.

  • Offers an easy-to-use mass-storage device mode flash programmer, virtual serial port and classic programming and run-control capabilities.
  • Includes built-in shoot-through current protection and undervoltage detector to avoid malfunction
  • Saves cost and space that would otherwise be used implementing a charge pump
  • Efficiently drives many types of micromotors with low power dissipation
  • Processor Expert® component for low voltage H-Bridge products enables rapid embedded application development.

Product Details

Select a section:

Supported Devices

Processors and Microcontrollers

KL Series Arm Cortex-M0+

  • KL1x: Kinetis® KL1x-48 MHz, Mainstream Small Ultra-Low Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core
  • KL2x: Kinetis® KL2x-72/96 MHz, USB Ultra-Low-Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core

Power Management

BLDC, H-Bridge, Stepper

  • MPC17511: H-Bridge, Brushed DC Motor Driver, 2-6.8 V, 3.0 A, 200 kHz

Features

Connectivity

  • Screw terminals for motor leads and power connections

Power Management

  • Built in regulator for logic power supply
  • General-purpose Auxiliary output to drive additional load
  • Board power is separate from host CPU power
  • Fuse protected

User Components

  • General-purpose LED driven from FRDM-KL25Z

Key Specifications

  • Designed for use with FRDM-KL25Z (can be used with FRDM and Arduino®)

Buy Options

FRDM-17511EV-EVB-Image

Click to expand

  • FRDM-17511EV-EVB

  • Freedom Evaluation board -MPC17511, H-B, Low Voltage, DC Brushed Motor Driver.

    • FRDM-17511EV-EVB hardware
    • Connectors for FRDM attach boards
    • Quick Reference Guide
  • $113.99 USD
  • For a quantity of 1
    • Availability: Pending stock
Buy from NXPBuy From Distributor

Documentation

Quick reference to our documentation types.

Filters

2 documents

Design Resources

Select a section:

Design Files

Filters

1 design file

  • Printed Circuit Boards and Schematics

    Gerber files for the FRDM-17511EV-EVB-GRBR Evaluation board

    ZIPRev 1.0Aug 20, 2014 00:00:00333.6 KBFRDM-17511EV-EVB-GRBR
    Download
