FRDM-17529EVB
-
FRDM-17529EVB.

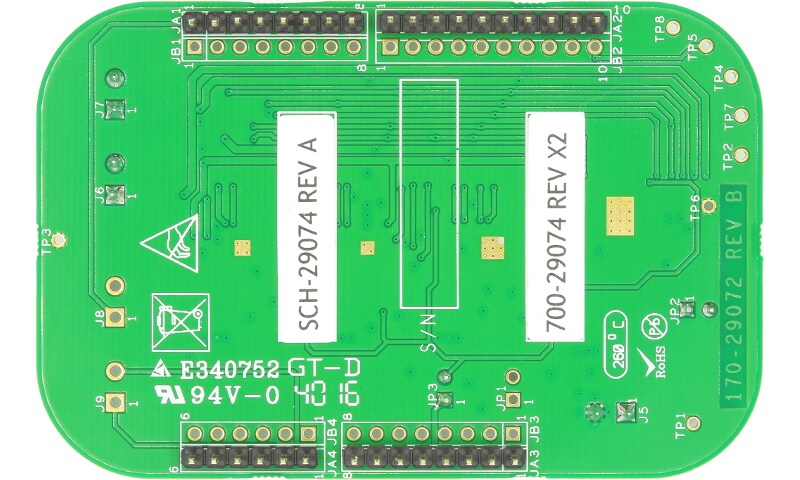

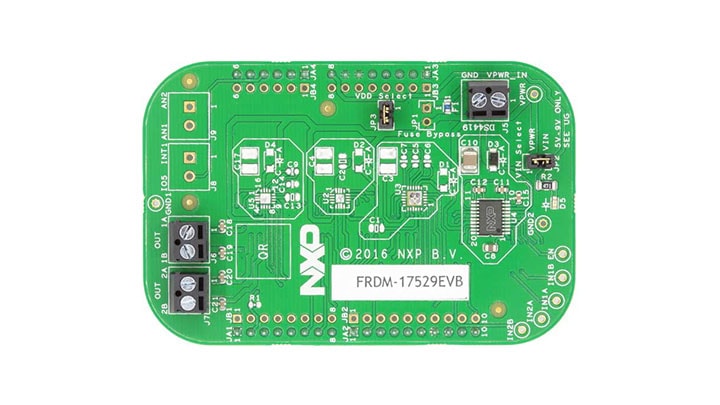

- FRDM-17529EVB board
- Quick start Guide
- Connectors for FRDM attach boards
Design Files
1 design file
-
Printed Circuit Boards and Schematics
Gerber files for the FRDM-17529EVB
Freedom Expansion Board for the MPC17529
FRDM-17529EVB Receive alerts

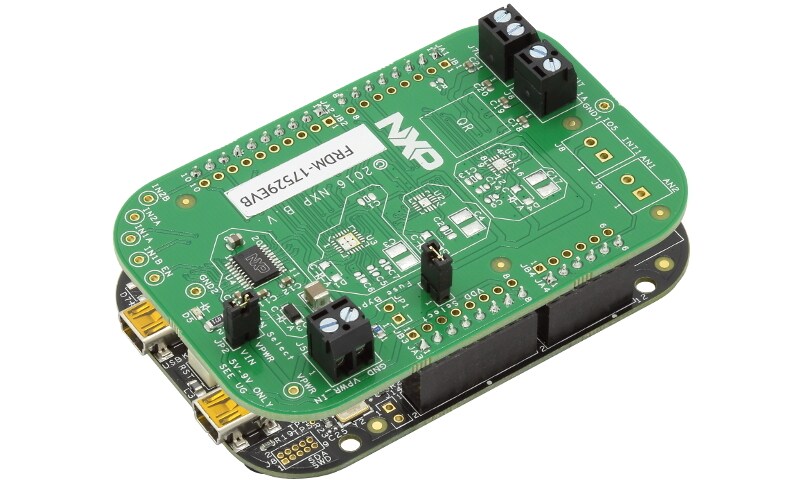

This Freedom evaluation board features the MPC17529 two-channel H-Bridge driver which can drive single-stepper motor or two-brushed DC motors.
- Offers independent control of each H-Bridge via MCU interface
- Features built-in shoot-through current protection and an undervoltage shutdown function
- Efficiently drives many types of micromotors with low power dissipation
- Saves design time
- Reduces system costs
- Reduces board space - enables compact, small designs
- Reduces parts count
- Processor Expert® component for low voltage H-Bridge products enables rapid embedded application development.
Product Details
Supported Devices
Power Management
BLDC, H-Bridge, Stepper
- MPC17529: Dual H-Bridge, Motor Driver, 2-6.8 V, 1.4 A, 200 kHz
Features
Connectivity
- Screw terminals for motor leads and power connections
Power Management
- Fuse protected
- Built in regulator for logic power supply
- Board power is separate from host CPU power
User Components
- General-purpose LED driven from FRDM-KL25Z
General Specifications
- Designed for use with FRDM-KL25Z (can be used with FRDM and Arduino®)
Buy Options
Documentation
Quick reference to our documentation types.
Design Resources
Software
3 software files
-
Components and Modules
Embedded SW: Low-Voltage H-Bridge Software Driver Built on SDK
-
Components and Modules
Embedded Component: Low Voltage H-Bridge
-
Embedded Application Software - miscellaneous
LVMC-Steppermotor-setup.exe
