Freedom Expansion Board for the MPC17531A

FRDM-17531EP-EVB

Roll over image to zoom in

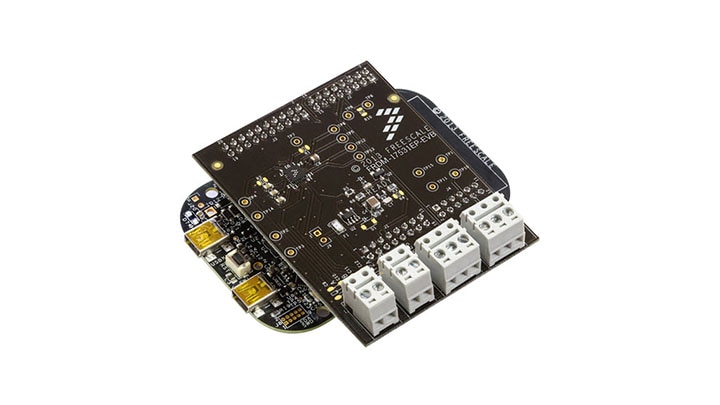

The Freedom evaluation board supports the MPC17531A two-channel H-Bridge driver for single-stepper or two brushed DC motors. It provides a small, low-power, cost-effective evaluation and development system for quick application prototyping and demonstration of Kinetis® MCU families.

  • Offers an easy-to-use mass-storage device mode flash programmer, virtual serial port and classic programming and run-control capabilities.
  • Includes built-in shoot-through current protection and an undervoltage shutdown function
  • Lowers energy consumption and helps extend battery life
  • Efficiently drives many types of micromotors with low power dissipation
  • Processor Expert® component for low voltage H-Bridge products enables rapid embedded application development.

Product Details

Select a section:

Supported Devices

Processors and Microcontrollers

KL Series Arm Cortex-M0+

  • KL1x: Kinetis® KL1x-48 MHz, Mainstream Small Ultra-Low Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core
  • KL2x: Kinetis® KL2x-72/96 MHz, USB Ultra-Low-Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core

Power Management

BLDC, H-Bridge, Stepper

  • MPC17531: Dual H-Bridge, Motor Driver, 2-8.6 V, 1.4 A, 200 kHz

Features

General Specifications

  • Designed for use with FRDM-KL25Z (can be used with FRDM and Arduino®)

Connectivity

  • Screw terminals for motor leads and power connections

Power Management

  • Fuse protected
  • Built in regulator for logic power supply
  • Board power is separate from host CPU power

Components

  • General-purpose LED driven from FRDM-KL25Z

Upgrade your FRDM-17531EP-EVB

NXP<sup>®</sup> Freedom development platform is now mbed enabled

Upgrade your FRDM-17531EP-EVB at no charge
Web-based SDK, online tools and community

Buy Options

FRDM-17531EP-EVB-Image

Click to expand

  • FRDM-17531EP-EVB

  • Freedom Evaluation board -MPC17531, H-B, Dual, Low Voltage, Stepper&DC Brushed Motor Driver.

    • FRDM-17531EP-EVB hardware
    • Connectors for FRDM attach boards
    • Quick Reference Guide
  • $113.99 USD
  • For a quantity of 1
    • Availability: Pending stock
Buy from NXPBuy From Distributor
