Freedom Platform for MC33883 H-Bridge Gate Driver

KIT33883FRDMEVM

Roll over image to zoom in

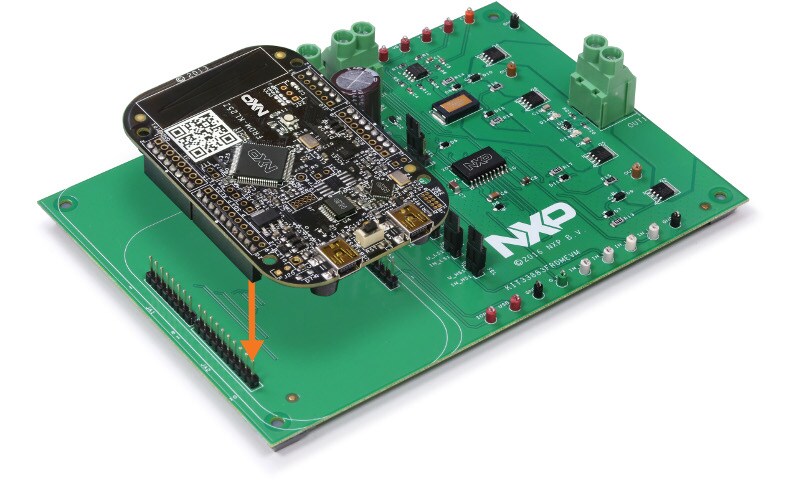

The KIT33883FRDMEVM (EVB) is an easy-to-use circuit board that allows the user to exercise all the functions of the MC33883 device. The EVM parallel inputs can be easily controlled through lab equipments, any MCU with GPIOs and also via the FRDM-KL25Z board connected to a PC’s USB port.

Product Details

Select a section:

Supported Devices

Power Management

Pre-Drivers

Features

Connectivity

  • Test points to allow probing of signals

Power Management

  • Built in reverse battery protection
  • Low ESR capacitor to reduce ripple in the power supply
  • LEDs to indicate the supply status

Support

  • Compatible with Freedom Development Platform for Kinetis KL25Z

Buy Options

  • KIT33883FRDMEVM

  • Freedom Expansion Board - MC33883 H-Bridge, Pre-driver, 5.5-55 V, 1 A, 100 kHz.

    • KIT33883FRDMEVM
    • FRDM-KL25Z
    • Quick reference card
  • $124.20 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 25
    • Shipping: Normally ships 1-2 business days
Buy from NXPBuy From Distributor
