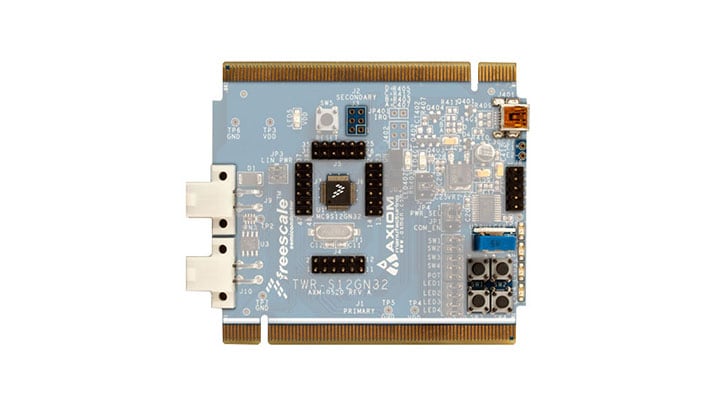

MC9S12GN32 Ultra Reliable 16-bit Tower System Module Demonstration Board

TWR-S12GN32

Roll over image to zoom in

The TWR-S12GN32 is a demonstration board for the NXP® MC9S12GN32 automotive 16-bit MCUs.

  • The integrated open-source BDM, software tools, and examples provided with the development board make application development and debug quick and easy
  • All MCU signals are available on one or both edge connectors
  • An IO ring around the MCU also provides easy access to all signals
  • The TWR-S12GN32 operates as a standalone debug tool and can also be combined and used as part of the modular Tower® System development platform

Product Details

Select a section:

Supported Devices

Processors and Microcontrollers

16-Bit S12 and S12X MCUs

  • S12G: Ultra-Reliable S12G General Purpose Automotive and Industrial Microcontrollers

Features

Microcontroller

    MC9S12GN32

  • 48 LQFP
  • 32 kB flash
  • 1024B EEPROM
  • 2048B RAM
  • 25 MHz Bus Frequency>
  • Internal oscillator>
  • SCI, SPI>

Memory

Connectivity

  • 2x3 BDM_PORT connector for external BDM cable
  • USB mini-AB connector for OSBDM
  • 2x5, 0.1” CTR, RS-232 header

Power input Selection Jumpers

  • Power input from integrated OSBDM
  • Power input from onboard regulator
  • Power input from LIN connectors
  • Power input from Tower® System edge connector

Peripherals

  • 5 push-button switches, 4 user, 1 reset
  • 7 LED indicators, 4 user, 2 OSBDM, 1 Power 5K ohm POT w /LP filter

Buy Options

  • TWR-S12GN32

  • Tower System, 16-bit MCU Module, MC9S12GN32, 32KB Flash, Automotive.

    • TWR-S12GN32 board with a MC9S12GN32 16-bit MCU
    • USB cable
    • DB9 to IDC 2X5 Socket Header
    • NXP Warranty Card
    • Technical Information Center NXP Semiconductors
    • CodeWarriorTM Development Studio for S08/HC08 and HC(S)12 Special Edition w/Service Pack CD
  • $315.00 USD
  • For a quantity of 1
    • Availability: Pending stock
Buy from NXPBuy From Distributor
  • $105.00 USD
  • For a quantity of 1
Buy From Distributor
