Capacitive Touch Plug-In Tower System Starter Kits

TWRPI-TOUCH-STR

Roll over image to zoom in

Human-Machine Interface (HMI) designs are in high demand, especially those requiring cost-effective touch-sensing functionality. Adding capacitive touch to your embedded design is simple with NXP’s TWRPI Plug-In Starter Kits.

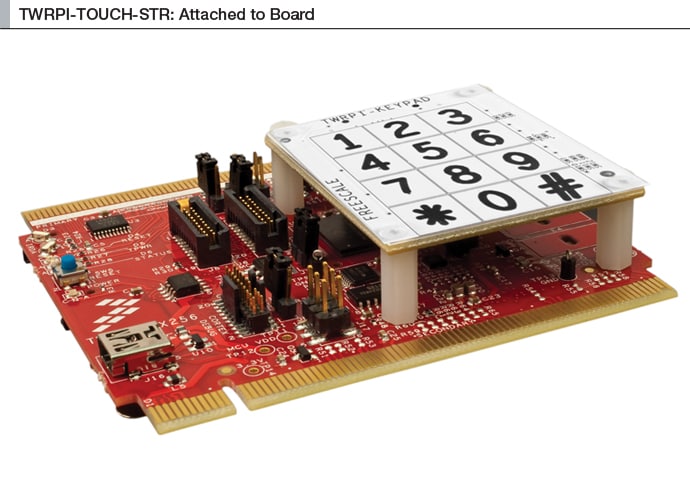

The TWRPI-TOUCH-STR bundles a complete set of four snap-in components, the TWRPITSS Sliders Kit includes a set of slider solutions including a 2D matrix, a Rotary and a vertical slider and the TWRPITSS Shielded Kit features different shielding setups. Place any combination of plug-ins onto a parent controller or peripheral module in the Tower® System, and start prototyping quickly and easily. It's that simple and, quite literally, at your fingertips.

Product Details

Select a section:

Features

User Components

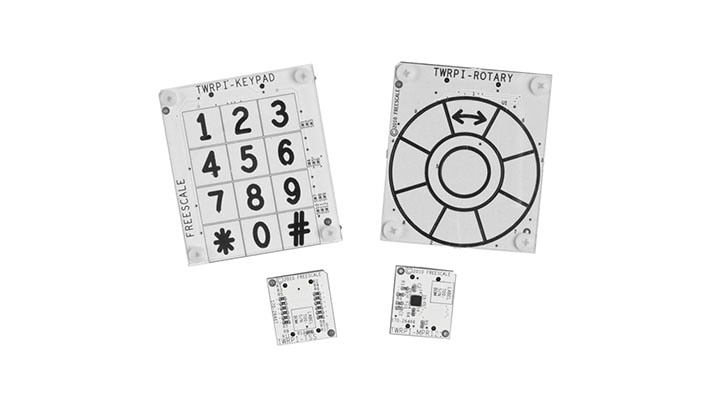

  • The TWRPI-TOUCH-STR, includes a discrete nonmultiplexed rotary touchpad interface, a classic 12 button keypad interface, an MPR121 to manage to touch pad interfaces and communicate back to the host MCU via I2C and the TSS board with pull-up resistors for use with the MCU
  • The TWRPITSS-Sliders offer a linear analog slider made up of 2 electrodes and complemented with single electrodes for additional functions, the second board is a circular analog slider made up of 4 electrodes. A central electrode is provided for extra functionality
  • The TWRITSS-SHIELD contains 2 boards with different shielded layouts
  • Compatible with the Tower® System modules with touch sense andtouch pad tower plug-in (TWRPI) sockets
  • Bundled as 3 different sets of plug-ins: TWRPI-TOUCH-STR, the TWRPITSS-Sliders and the TWRPITSS-SHIELD

Buy Options

  • TWRPI-TOUCH-STR

  • Tower System, Plug-In, Capacitive Touch Starter Kit, use w/Tower System Modules w/TWRPI Sockets.

    • TWRPI-MPR121
    • TWRPI-TSS
    • TWRPI-ROTARY
    • TWRPI-KEYPAD
    • Quick Start Guide document
  • $79.00 USD
  • For a quantity of 1
Buy From Distributor
  • $90.85 USD
  • For a quantity of 1
Buy From Distributor
  • $79.35 USD
  • For a quantity of 1
    • Availability: Pending stock
Buy from NXPBuy From Distributor

Documentation

Quick reference to our documentation types.

Filters

1 documents

Design Resources

Select a section:

Design Files

Filters

1 design file

  • Printed Circuit Boards and Schematics

    TWRPI-TSS Schematics

    PDFRev AAug 11, 2011 00:00:0049.2 KBTWRPITSS_SCH
    Download

Software

Filters

2 software files

  • Libraries

    Touch Sensing Software Suite installer 2.6

    EXERev 2.6Apr 2, 2012 00:00:0034.0 MBFSLTSSLIB_2_6_0
    Download
  • Graphics, UI, and Human Machine Interface

    Touch Sensing Software Suite installer Version 3.0.1

    ZIPRev 3.0.1Sep 24, 2012 00:00:0031.6 MBTSSSW_3_0_1
    Sign in required
    Download
