BRKTSTBAPx7250: Evaluation Breakout Board Series

BRKTSTBAPx7250

Roll over image to zoom in

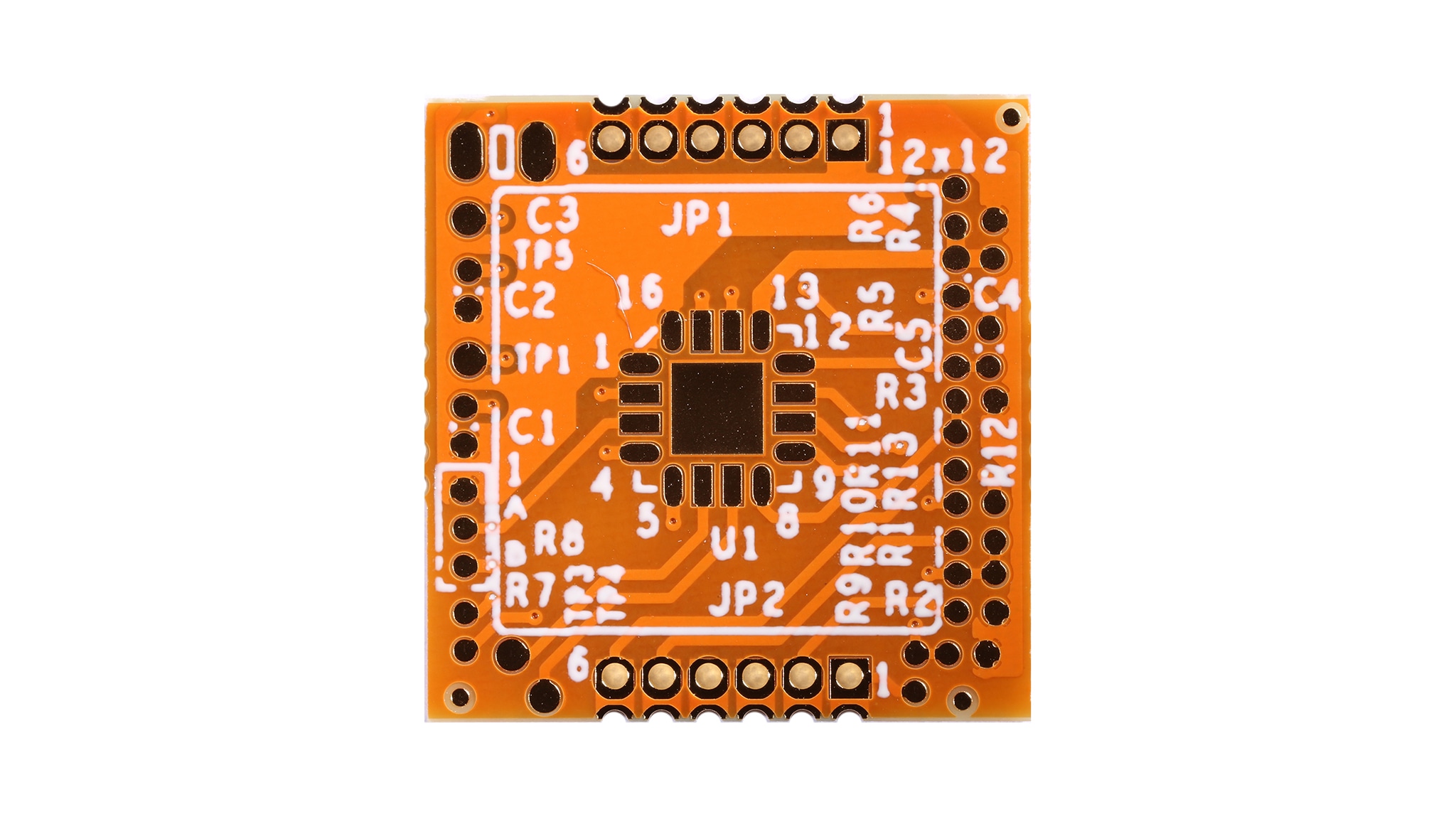

The BRKTSTBAPx7250 series evaluation boards consists of one of the FXPS7250X series pressure sensors depending on the type of pressure output protocol required; analog or digital (I2C/SPI). The FXPS7250X is an automotive grade high-performance, high-precision absolute pressure sensor. The evaluation boards come in the 20 kPa to 250 kPa pressure range and NXP also provides a PCB where many other pressure ranges can be used as required by the application. For example, 40 kPa to 115 kPa or 20 kPa to 550 kPa and many other pressure ranges are available in either an analog or digital output format. This sensor FXPS7 family is ideal for many automotive applications such as manifold air pressure (MAP), comfort seating and other applications requiring operating absolute pressure ranges up to 550 kPa.

Through the combined use of the FRDM7X-INTERFACE board, any of the BRKTSTBAPx7250 breakout boards can be easily connected to a NXP Freedom MCU board via the Arduino headers for evaluation. There are component library projects provided for the FRDM-KE15Z and FRDM-K64F MCU boards for fast evaluation.

Product Details

Select a section:

Supported Devices

Sensors

LPG and CNG Gas 20 to 550 kPa

  • FXPS7xx0D4: Digital Absolute Pressure Sensor (20 to 550 kPa)
  • FXPS7xx0A4: Analog Absolute Pressure Sensor (20 to 550 kPa)

Features

Pressure / Temperature Range and Packaging

  • Absolute pressure range: 20 to 550 kPa
  • Operating temperature range: –40 °C to 130 °C
  • Lead-free, 16-pin HQFN, 4 mm x 4 mm x 1.98 mm package

I2C Compatible Serial Interface

  • Follower mode operation
  • Standard mode, fast mode and fast-mode plus support

32-Bit SPI Compatible Serial Interface

  • Sensor data transmission commands
  • 12-bit data for absolute pressure
  • 8-bit data for temperature
  • 2-bit basic status and 2-bit detailed status fields
  • 3, 4, or 8-bit configurable CRC
  • Digital self-test

Buy Options

BRKTSTBAPA7250S-Image

Click to expand

  • $29.95 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 10
    • Shipping: Normally ships 1-2 business days
Buy from NXPBuy From Distributor
BRKTSTBAPDI7250-Image

Click to expand

  • $29.95 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 10
    • Shipping: Normally ships 1-2 business days
Buy from NXPBuy From Distributor
BRKTSTBAPDS7250-Image

Click to expand

  • $29.95 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 10
    • Shipping: Normally ships 1-2 business days
Buy from NXPBuy From Distributor

Documentation

Quick reference to our documentation types.

Filters

2 documents

Design Resources

Select a section:

Design Files

Filters

1-5 of 8 design files

  • Printed Circuit Boards and Schematics

    BRKTSTBAPA7250S Schematics

    PDFRev ASep 21, 2022 16:07:00216.5 KBSPF-88891
    Sign in required
    Download
  • Printed Circuit Boards and Schematics

    BRKTSTBAPDS7250 Schematics

    PDFRev BAug 15, 2022 16:10:00222.0 KBSPF-46092
    Sign in required
    Download
  • Printed Circuit Boards and Schematics

    BRKTSTBAPDI7250 Schematics

    PDFRev BAug 15, 2022 16:04:00219.5 KBSPF-46091
    Sign in required
    Download
  • Printed Circuit Boards and Schematics

    BRKFXPS7XXX-PCB Schematics

    PDFRev ASep 6, 2022 11:36:00184.4 KBSPF-87708
    Sign in required
    Download
  • Design Files - miscellaneous

    BRKFXPS7XXX-PCB Design Files

    ZIPRev 1Dec 14, 2022 11:39:002.4 MBBRKFXPS7XXX-PCB-DESIGN-FILES
    Sign in required
    Download
Show All
