SOT1852-1: SENSOR6F

Overview

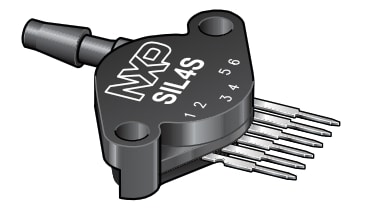

SENSOR6F, sensor package; 6 terminals; 2.54 mm pitch; 17.78 mm x 29.47 mm x 8.01 mm body

Package Version	Package Name	Mount	Terminal Position	Package Style	Dimensions	Termination Count	Material
SOT1852-1	SENSOR6F	through-hole mount	double		17.78 x 29.47 x 8.01	6

Manufacture Code	Reference Codes	Issue Date
98ASB42796B	E-PSXB-F6(JEDEC)	2017-06-11

Products

Part	Description	Quick access
MPX5700AP	Pressure Sensor, 5V, 15/700kPa, Sensor 6, Port	View parametrics
MPX4250AP	Pressure Sensor, 5.1V, 0/250kPa, Sensor 6, Port	View parametrics
MPX5700GP1	Pressure Sensor, 5V, 0/700kPa, Sensor 6, Port	View parametrics
MPX5100AP	Pressure Sensor, 5V, 0/100kPa, Sensor 6, Port	View parametrics
MPX5050GP	Pressure Sensor, 5V, 0/50kPa, Sensor 6, Port	View parametrics
MPX5700GP	Pressure Sensor, 5V, 0/700kPa, Sensor 6, Port	View parametrics
MPX4115AP	Pressure Sensor, 5.1V, 15/115kPa, Sensor 6	View parametrics
MPX5050GP1	Pressure Sensor, 5V, 0/50kPa, Sensor 6, Port	View parametrics
MPX4250GP	PRESS SEN INTEG 250KPA	View parametrics
MPX5100GP	Pressure Sensor, 5V, 0/100kPa, Sensor 6, Port	View parametrics
MPX5010GP	Pressure Sensor, 5V, 0/10kPa, Sensor 6, Port	View parametrics
MPX4100AP	UNIBODY COMPENSATED	View parametrics
