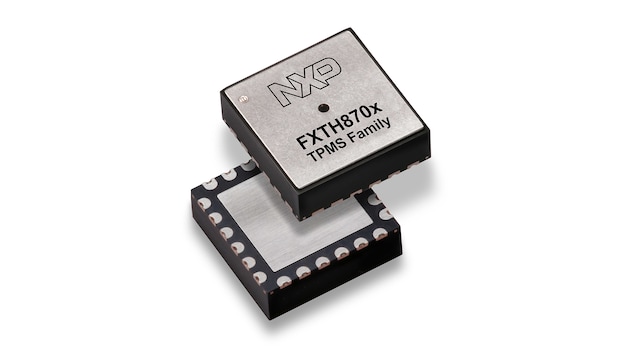

High-Pressure Tire Pressure Monitoring Sensor (TPMS) Family

FXTH8715 End of Life
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

The FXTH8715 high-pressure family of tire pressure monitoring sensors (TPMS) supports ranges of 100-1500 kPa for medium/heavy duty trucks, buses, and construction vehicles.

  • Integrates an 8-bit microcontroller (MCU), pressure sensor, XZ-axis or Z-axis accelerometer and RF transmitter
  • Offers the lowest power consumption and dual-axis accelerometer architecture, enables small module design for lighter weight and space-constrained applications
  • Offers flexibility of software development and accelerated time-to-market

Block Diagram

FXTH8715 TPMS Family

FXTH8715-BD-IMG
Get diagram PDF

Features

Key Features

  • QFN 7 x 7 x 2.2 mm package enables visible solder joint for inspection
  • 100–1500 kPa pressure range
  • Z-axis or dual XZ-axis accelerometers
  • Accelerometer standard or precision tolerances available
  • High precision tolerance available for pressure
  • Low-power wake-up timer and periodic reset is driven by LFO
  • Dedicated state machines for reduced power consumption
  • 8-bit MCU/S08 core with SIM, interrupt and debug/monitor
  • 512 Bytes RAM / 16 k Flash (8 k for NXP® library, 8 k for applications)
  • Internal 315/434 MHz RF transmitter
  • Internal 125 kHz LF receiver
  • Six multipurpose GPIO pins (including two A/D inputs)

Buy/Parametrics

‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
N true 0 PSPFXTH8715en 10 Application Note Application Note t789 4 Data Sheet Data Sheet t520 4 Supporting Information Supporting Information t531 1 User Guide User Guide t792 1 en_US 3 1 FXTH8715026,FXTH8715116,FXTH8718116 2.4 English The FXTH87 family is comprised of the following functions all within the same package. Pressure sensor with the calibrated pressure range 100 - 1500 kPa, temperature sensor, optional XZ- or Z-axis accelerometer with adjustable offset option. 1420835976344719217611 PSP 1.9 MB Registration without Disclaimer None documents Extended 1420835976344719217611 /secured/assets/documents/en/data-sheet/FXTH871x6.pdf 1933327 /secured/assets/documents/en/data-sheet/FXTH871x6.pdf FXTH871X6 Y N 2017-08-03 FXTH871x6 Tire Pressure Monitor Sensor - Data sheet /webapp/Download?colCode=FXTH871X6 /secured/assets/documents/en/data-sheet/FXTH871x6.pdf Data Sheet N Y 980000996212993340 2022-12-07 pdf Y en Apr 29, 2020 Data Sheet t520 Data Sheet Data Sheet Y N FXTH871x6 Tire Pressure Monitor Sensor - Data sheet 2 FXTH8715027,FXTH8715117 0.6 English The FXTH871x7 family is comprised of the following functions all within the same package. Pressure sensor with the calibrated pressure range 100 - 1500 kPa, temperature sensor, optional XZ- or Z-axis accelerometer with adjustable offset option. 1420836289281711800122 PSP 2.0 MB Registration without Disclaimer None documents Extended 1420836289281711800122 /secured/assets/documents/en/data-sheet/FXTH871x7.pdf 1992708 /secured/assets/documents/en/data-sheet/FXTH871x7.pdf FXTH871X7 Y N 2017-08-03 FXTH871x7 Tire Pressure Monitor Sensor - Data Sheet /webapp/Download?colCode=FXTH871X7 /secured/assets/documents/en/data-sheet/FXTH871x7.pdf Data Sheet N Y 980000996212993340 2022-12-07 pdf Y en Apr 29, 2020 Data Sheet t520 Data Sheet Data Sheet Y N FXTH871x7 Tire Pressure Monitor Sensor - Data Sheet 3 FXTH871502D,FXTH871511D 1.8 English The FXTH871xD family is comprised of the following functions all within the same package. Pressure sensor with the calibrated pressure range 100 - 1500 kPa, temperature sensor, and optional XZ- or Z-axis accelerometer with adjustable offset option. 1420837369737722724880 PSP 2.0 MB Registration without Disclaimer None documents Extended 1420837369737722724880 /secured/assets/documents/en/data-sheet/FXTH871xD.pdf 1989926 /secured/assets/documents/en/data-sheet/FXTH871xD.pdf FXTH871XD Y N 2017-08-03 FXTH871xD Tire Pressure Monitor Sensor - Data sheet /webapp/Download?colCode=FXTH871XD /secured/assets/documents/en/data-sheet/FXTH871xD.pdf Data Sheet N Y 980000996212993340 2023-06-18 pdf Y en Apr 29, 2020 Data Sheet t520 Data Sheet Data Sheet Y N FXTH871xD Tire Pressure Monitor Sensor - Data sheet true en_US en Data Sheet Data Sheet 1 4 1.0 English FXTH8715118, Tire Pressure Monitor Sensor 1574378417969704079940 PSP 1.9 MB Registration without Disclaimer None documents Extended 1574378417969704079940 /secured/assets/documents/en/data-sheet/FXTH8715118.pdf 1916022 /secured/assets/documents/en/data-sheet/FXTH8715118.pdf FXTH8715118 documents Y N 2019-11-21 FXTH8715118, Tire Pressure Monitor Sensor - Datasheet /webapp/Download?colCode=FXTH8715118 /secured/assets/documents/en/data-sheet/FXTH8715118.pdf Data Sheet N 980000996212993340 2023-06-18 pdf Y en Nov 21, 2019 980000996212993340 Data Sheet Y N FXTH8715118, Tire Pressure Monitor Sensor - Datasheet Application Note Application Note 4 5 4 English This application note describes a procedure to perform over-the-air (OTA), customer applied, software updates for the FXTH87(E) family of tire pressure monitor sensors (TPMS). These updates are performed in the field using the low frequency receiver (LFR) and radio frequency (RF) transmitter as the communication interface. 1440612929938685901345 PSP 3.5 MB Registration without Disclaimer None documents Extended 1440612929938685901345 /secured/assets/documents/en/application-note/AN5149.pdf 3457638 /secured/assets/documents/en/application-note/AN5149.pdf AN5149 documents Y N 2016-10-31 AN5149: Field Software Updates Using TPMS LF Application Note /webapp/Download?colCode=AN5149 /secured/assets/documents/en/application-note/AN5149.pdf Application Note N 645036621402383989 2023-06-08 pdf Y en May 24, 2023 645036621402383989 Application Note Y N AN5149: Field Software Updates Using TPMS LF Application Note 6 1 English FXTH and NTM88 devices include three internal oscillators, a low frequency, medium frequency, and high frequency oscillator. This application note documents how to compensate for the drift. 1633108562848697992479 PSP 316.9 KB None None documents None 1633108562848697992479 /docs/en/application-note/AN13371.pdf 316937 /docs/en/application-note/AN13371.pdf AN13371 documents N N 2021-10-01 AN13371: TPMS Clocks Calibration Application Note /docs/en/application-note/AN13371.pdf /docs/en/application-note/AN13371.pdf Application Note N 645036621402383989 2023-06-08 pdf N en Oct 1, 2021 645036621402383989 Application Note Y N AN13371: TPMS Clocks Calibration Application Note 7 3 English This document explains the difference between Firmware Model Applications and Library Model Applications and how to migrate from the firmware model to the library model. 1564421717218702133904 PSP 386.5 KB Registration without Disclaimer None documents Extended 1564421717218702133904 /secured/assets/documents/en/application-note/AN12523.pdf 386518 /secured/assets/documents/en/application-note/AN12523.pdf AN12523 documents Y N 2019-07-29 AN12523: Firmware Versus Library Model Applications Application Note /webapp/Download?colCode=AN12523 /secured/assets/documents/en/application-note/AN12523.pdf Application Note N 645036621402383989 2023-06-08 pdf Y en Mar 24, 2021 645036621402383989 Application Note Y N AN12523: Firmware Versus Library Model Applications Application Note 8 1 English Sensor calibration can be performed when the sensor tolerance is too large compared to the project's requirements. Calibration minimizes the sensor deviation in a certain portion of the sensor's operating range. 1562012117692719978335 PSP 190.7 KB Registration without Disclaimer None documents Extended 1562012117692719978335 /secured/assets/documents/en/application-note/AN12519.pdf 190724 /secured/assets/documents/en/application-note/AN12519.pdf AN12519 documents Y N 2019-07-01 AN12519: Implementing Post-Assembly TPMS Sensor Calibration Application Note /webapp/Download?colCode=AN12519 /secured/assets/documents/en/application-note/AN12519.pdf Application Note N 645036621402383989 2023-06-08 pdf Y en Jul 1, 2019 645036621402383989 Application Note Y N AN12519: Implementing Post-Assembly TPMS Sensor Calibration Application Note User Guide User Guide 1 9 1 English Installing and using CodeWarrior IDE for TPMS for FXTH87, FXTH87E and NTM88 1578595597505719348262 PSP 9.1 MB Registration without Disclaimer None documents Extended 1578595597505719348262 /secured/assets/documents/en/user-guide/UM11325.pdf 9096818 /secured/assets/documents/en/user-guide/UM11325.pdf UM11325 documents Y N 2020-01-09 UM11325: Installing and Using CodeWarrior IDE for TPMS for FXTH87, FXTH87E and NTM88 User Manual /webapp/Download?colCode=UM11325 /secured/assets/documents/en/user-guide/UM11325.pdf User Guide N 132339537837198660 2023-06-08 pdf Y en Jan 9, 2020 132339537837198660 User Guide Y N UM11325: Installing and Using CodeWarrior IDE for TPMS for FXTH87, FXTH87E and NTM88 User Manual Supporting Information Supporting Information 1 10 4 English This document will guide you through the process of installing and using CodeWarrior 10.6 for Tire Pressure Monitor Sensor applications. 1431583116426735340027 PSP 2.6 MB None documents None 1431583116426735340027 /docs/en/supporting-information/FXTH87-CW10.6-SETUP.pdf 2552672 /docs/en/supporting-information/FXTH87-CW10.6-SETUP.pdf FXTH87-CW10.6-SETUP documents N N 2015-05-13 Installing and using CW 10.6 for TPMS applications /docs/en/supporting-information/FXTH87-CW10.6-SETUP.pdf /docs/en/supporting-information/FXTH87-CW10.6-SETUP.pdf Supporting Information N 371282830530968666 2023-06-18 pdf N en May 13, 2015 371282830530968666 Supporting Information N Installing and using CW 10.6 for TPMS applications false 0 FXTH8715 downloads en true 1 Y PSP Application Note 4 /secured/assets/documents/en/application-note/AN5149.pdf 2016-10-31 1440612929938685901345 PSP 5 May 24, 2023 Application Note This application note describes a procedure to perform over-the-air (OTA), customer applied, software updates for the FXTH87(E) family of tire pressure monitor sensors (TPMS). These updates are performed in the field using the low frequency receiver (LFR) and radio frequency (RF) transmitter as the communication interface. Registration without Disclaimer /secured/assets/documents/en/application-note/AN5149.pdf English documents 3457638 None 645036621402383989 2023-06-08 Y /webapp/Download?colCode=AN5149 AN5149: Field Software Updates Using TPMS LF Application Note /secured/assets/documents/en/application-note/AN5149.pdf documents 645036621402383989 Application Note N en Extended Y pdf 4 Y N AN5149: Field Software Updates Using TPMS LF Application Note 3.5 MB AN5149 N 1440612929938685901345 /docs/en/application-note/AN13371.pdf 2021-10-01 1633108562848697992479 PSP 6 Oct 1, 2021 Application Note FXTH and NTM88 devices include three internal oscillators, a low frequency, medium frequency, and high frequency oscillator. This application note documents how to compensate for the drift. None /docs/en/application-note/AN13371.pdf English documents 316937 None 645036621402383989 2023-06-08 N /docs/en/application-note/AN13371.pdf AN13371: TPMS Clocks Calibration Application Note /docs/en/application-note/AN13371.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N N AN13371: TPMS Clocks Calibration Application Note 316.9 KB AN13371 N 1633108562848697992479 /secured/assets/documents/en/application-note/AN12523.pdf 2019-07-29 1564421717218702133904 PSP 7 Mar 24, 2021 Application Note This document explains the difference between Firmware Model Applications and Library Model Applications and how to migrate from the firmware model to the library model. Registration without Disclaimer /secured/assets/documents/en/application-note/AN12523.pdf English documents 386518 None 645036621402383989 2023-06-08 Y /webapp/Download?colCode=AN12523 AN12523: Firmware Versus Library Model Applications Application Note /secured/assets/documents/en/application-note/AN12523.pdf documents 645036621402383989 Application Note N en Extended Y pdf 3 Y N AN12523: Firmware Versus Library Model Applications Application Note 386.5 KB AN12523 N 1564421717218702133904 /secured/assets/documents/en/application-note/AN12519.pdf 2019-07-01 1562012117692719978335 PSP 8 Jul 1, 2019 Application Note Sensor calibration can be performed when the sensor tolerance is too large compared to the project's requirements. Calibration minimizes the sensor deviation in a certain portion of the sensor's operating range. Registration without Disclaimer /secured/assets/documents/en/application-note/AN12519.pdf English documents 190724 None 645036621402383989 2023-06-08 Y /webapp/Download?colCode=AN12519 AN12519: Implementing Post-Assembly TPMS Sensor Calibration Application Note /secured/assets/documents/en/application-note/AN12519.pdf documents 645036621402383989 Application Note N en Extended Y pdf 1 Y N AN12519: Implementing Post-Assembly TPMS Sensor Calibration Application Note 190.7 KB AN12519 N 1562012117692719978335 Data Sheet 4 /secured/assets/documents/en/data-sheet/FXTH8715118.pdf 2019-11-21 1574378417969704079940 PSP 4 Nov 21, 2019 Data Sheet FXTH8715118, Tire Pressure Monitor Sensor Registration without Disclaimer /secured/assets/documents/en/data-sheet/FXTH8715118.pdf English documents 1916022 None 980000996212993340 2023-06-18 Y /webapp/Download?colCode=FXTH8715118 FXTH8715118, Tire Pressure Monitor Sensor - Datasheet /secured/assets/documents/en/data-sheet/FXTH8715118.pdf documents 980000996212993340 Data Sheet N en Extended Y pdf 1.0 Y N FXTH8715118, Tire Pressure Monitor Sensor - Datasheet 1.9 MB FXTH8715118 N 1574378417969704079940 /secured/assets/documents/en/data-sheet/FXTH871x6.pdf 2017-08-03 1420835976344719217611 PSP 1 Apr 29, 2020 Data Sheet Data Sheet The FXTH87 family is comprised of the following functions all within the same package. Pressure sensor with the calibrated pressure range 100 - 1500 kPa, temperature sensor, optional XZ- or Z-axis accelerometer with adjustable offset option. Registration without Disclaimer /secured/assets/documents/en/data-sheet/FXTH871x6.pdf English 1933327 None Data Sheet 2022-12-07 Y /webapp/Download?colCode=FXTH871X6 FXTH871x6 Tire Pressure Monitor Sensor - Data sheet /secured/assets/documents/en/data-sheet/FXTH871x6.pdf documents 980000996212993340 Data Sheet N Y en Extended Y t520 pdf 2.4 Y N FXTH871x6 Tire Pressure Monitor Sensor - Data sheet FXTH8715026,FXTH8715116,FXTH8718116 1.9 MB FXTH871X6 N 1420835976344719217611 /secured/assets/documents/en/data-sheet/FXTH871x7.pdf 2017-08-03 1420836289281711800122 PSP 2 Apr 29, 2020 Data Sheet Data Sheet The FXTH871x7 family is comprised of the following functions all within the same package. Pressure sensor with the calibrated pressure range 100 - 1500 kPa, temperature sensor, optional XZ- or Z-axis accelerometer with adjustable offset option. Registration without Disclaimer /secured/assets/documents/en/data-sheet/FXTH871x7.pdf English 1992708 None Data Sheet 2022-12-07 Y /webapp/Download?colCode=FXTH871X7 FXTH871x7 Tire Pressure Monitor Sensor - Data Sheet /secured/assets/documents/en/data-sheet/FXTH871x7.pdf documents 980000996212993340 Data Sheet N Y en Extended Y t520 pdf 0.6 Y N FXTH871x7 Tire Pressure Monitor Sensor - Data Sheet FXTH8715027,FXTH8715117 2.0 MB FXTH871X7 N 1420836289281711800122 /secured/assets/documents/en/data-sheet/FXTH871xD.pdf 2017-08-03 1420837369737722724880 PSP 3 Apr 29, 2020 Data Sheet Data Sheet The FXTH871xD family is comprised of the following functions all within the same package. Pressure sensor with the calibrated pressure range 100 - 1500 kPa, temperature sensor, and optional XZ- or Z-axis accelerometer with adjustable offset option. Registration without Disclaimer /secured/assets/documents/en/data-sheet/FXTH871xD.pdf English 1989926 None Data Sheet 2023-06-18 Y /webapp/Download?colCode=FXTH871XD FXTH871xD Tire Pressure Monitor Sensor - Data sheet /secured/assets/documents/en/data-sheet/FXTH871xD.pdf documents 980000996212993340 Data Sheet N Y en Extended Y t520 pdf 1.8 Y N FXTH871xD Tire Pressure Monitor Sensor - Data sheet FXTH871502D,FXTH871511D 2.0 MB FXTH871XD N 1420837369737722724880 Supporting Information 1 /docs/en/supporting-information/FXTH87-CW10.6-SETUP.pdf 2015-05-13 1431583116426735340027 PSP 10 May 13, 2015 Supporting Information This document will guide you through the process of installing and using CodeWarrior 10.6 for Tire Pressure Monitor Sensor applications. None /docs/en/supporting-information/FXTH87-CW10.6-SETUP.pdf English documents 2552672 371282830530968666 2023-06-18 N /docs/en/supporting-information/FXTH87-CW10.6-SETUP.pdf Installing and using CW 10.6 for TPMS applications /docs/en/supporting-information/FXTH87-CW10.6-SETUP.pdf documents 371282830530968666 Supporting Information N en None pdf 4 N N Installing and using CW 10.6 for TPMS applications 2.6 MB FXTH87-CW10.6-SETUP N 1431583116426735340027 User Guide 1 /secured/assets/documents/en/user-guide/UM11325.pdf 2020-01-09 1578595597505719348262 PSP 9 Jan 9, 2020 User Guide Installing and using CodeWarrior IDE for TPMS for FXTH87, FXTH87E and NTM88 Registration without Disclaimer /secured/assets/documents/en/user-guide/UM11325.pdf English documents 9096818 None 132339537837198660 2023-06-08 Y /webapp/Download?colCode=UM11325 UM11325: Installing and Using CodeWarrior IDE for TPMS for FXTH87, FXTH87E and NTM88 User Manual /secured/assets/documents/en/user-guide/UM11325.pdf documents 132339537837198660 User Guide N en Extended Y pdf 1 Y N UM11325: Installing and Using CodeWarrior IDE for TPMS for FXTH87, FXTH87E and NTM88 User Manual 9.1 MB UM11325 N 1578595597505719348262 true Y Products

Documentation

Quick reference to our documentation types.

Filters

10 documents

Compact List

Application Note (4)
Data Sheet (4)
Supporting Information (1)
User Guide (1)
