- No Longer Manufactured
- SA58671UK
1.2 W/channel stereo class-D audio amplifier
- This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

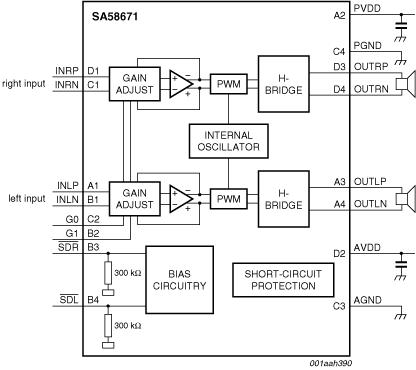

The SA58671 is a stereo, filter-free class-D audio amplifier which is available in a 16 bump WLCSP (Wafer Level Chip-Size Package).
The SA58671 features independent shutdown controls for each channel. The gain can be set at 6 dB, 12 dB, 18 dB or 24 dB using G0 and G1 gain select pins. Improved immunity to noise and RF rectification is increased by high PSRR and differential circuit topology. Fast start-up time and very small WLCSP package makes it an ideal choice for both cellular handsets and PDAs.
The SA58671 delivers 1.3 W/channel at 5 V and 720 mW/channel at 3.6 V into 8 Ω. It delivers 1.2 W/channel at 5 V into 4 Ω. The maximum power efficiency is excellent at 70 pct to 74 pct into 4 Ω and 84 pct to 88 pct into 8 Ω. The SA58671 provides thermal and short-circuit shutdown protection.
