A2T21H450W19S: 2110-2200 MHz, 89 W Avg., 30 V Airfast® RF Power LDMOS Transistor ARCHIVED

Overview

Features

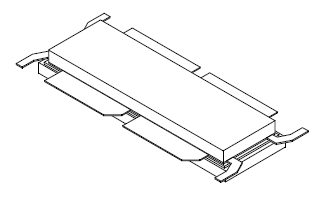

NI-1230S-4S4S Package Image

NI-1230S-4S4S Package Image
.

RF Performance Table

2100 MHz

Typical Doherty Single-Carrier W-CDMA Performance: VDD = 30 Vdc, IDQA = 800 mA, VGSB = 0.7 Vdc, Pout = 89 W Avg., Input Signal PAR = 9.9 dB @ 0.01% Probability on CCDF.
Frequency Gps
(dB)
ηD
(%)
Output PAR
(dB)
ACPR
(dBc)
2110 MHz15.746.18.0–31.4
2145 MHz15.746.28.0–33.9
2180 MHz15.745.97.8–36.1
2200 MHz15.645.47.8–35.6
