MHT1000H|2450 MHz, 140 W CW, 28 V

Overview

Archived content is no longer updated and is made available for historical reference only.

The MHT1000HR5 is an RF power transistor suitable for industrial heating applications operating at 2450 MHz. Device is capable of both CW and pulse operation.

MoreLess

Features

Typical CW Performance at 2450 MHz: V_DD = 28 Vdc, I_DQ = 1200 mA, Pout = 140 W

Power Gain: 13.2 dB

Drain Efficiency: 45%
Capable of Handling 10:1 VSWR, @ 28 Vdc, 2390 MHz, 140 W CW Output Power
Characterized with Series Equivalent Large-Signal Impedance Parameters
Internally Matched for Ease of Use
Qualified Up to a Maximum of 32 V_DD Operation
Integrated ESD Protection
RoHS Compliant
In Tape and Reel. R5 Suffix = 50 Units, 56 mm Tape Width, 13-inch Reel.

MoreLess

Features

Typical CW Performance at 2450 MHz: V_DD = 28 Vdc, I_DQ = 1200 mA, Pout = 140 W

Power Gain: 13.2 dB

Drain Efficiency: 45%
Capable of Handling 10:1 VSWR, @ 28 Vdc, 2390 MHz, 140 W CW Output Power
Characterized with Series Equivalent Large-Signal Impedance Parameters
Internally Matched for Ease of Use
Qualified Up to a Maximum of 32 V_DD Operation
Integrated ESD Protection
RoHS Compliant
In Tape and Reel. R5 Suffix = 50 Units, 56 mm Tape Width, 13-inch Reel.

Data Sheets

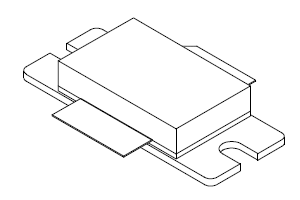

NI-880H-2L Package Image
