3-Axis Digital Output Accelerometer Evaluation Board

Roll over image to zoom in

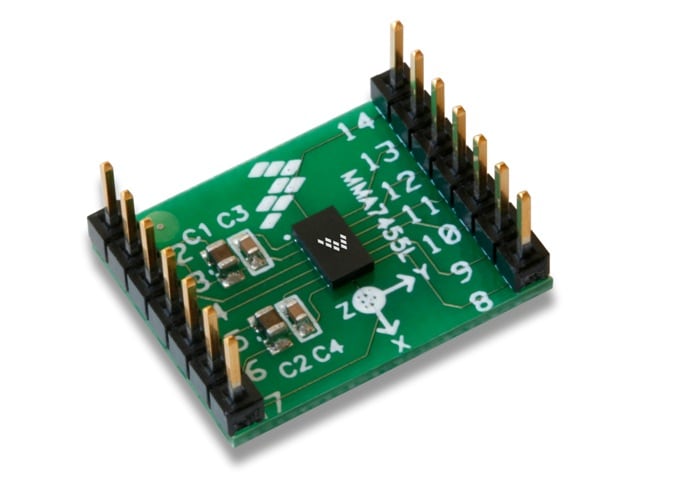

The MMA745XL 3-axis digital output accelerometer has been placed on a Printed Circuit Board (PCB) with access to all the pins to allow evaluation of the product by integrating it into a specific design application. This allows the flexibility to evaluate a device in its own hardware and software environment.

Archived content is no longer updated and is made available for historical reference only.
