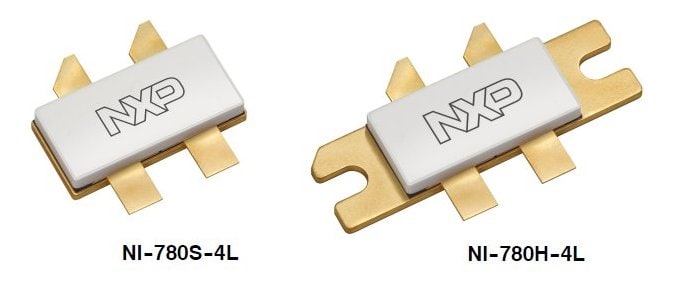

300 W CW over 2400-2500 MHz, 50 V RF Power GaN Transistor

MRF24G300HS
Active
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

These 300 W CW GaN transistors, MRF24G300HS and MRF24G300H, are designed for industrial, scientific and medical (ISM) applications at 2450 MHz. These devices are suitable for use in CW, pulse, cycling and linear applications. These high gain, high efficiency devices are easy to use and will provide long life in even the most demanding environments.

These parts are characterized and performance is guaranteed for applications operating in the 2400 to 2500 MHz band. There is no guarantee of performance when these parts are used in applications designed outside of these frequencies.

Features

  • Advanced GaN on SiC, for optimal thermal performance
  • Characterized for CW, long pulse (up to several seconds) and short pulse operations
  • Device can be used in a single-ended or push-pull configuration
  • Input matched for simplified input circuitry
  • Qualified up to 55 V
  • Suitable for linear application
  • RoHS Compliant
  • Industrial heating
  • Welding and heat sealing
  • Plasma generation
  • Lighting
  • Scientific instrumentation
  • Medical
    • Microwave ablation
    • Diathermy

RF Performance Tables

Typical Performance

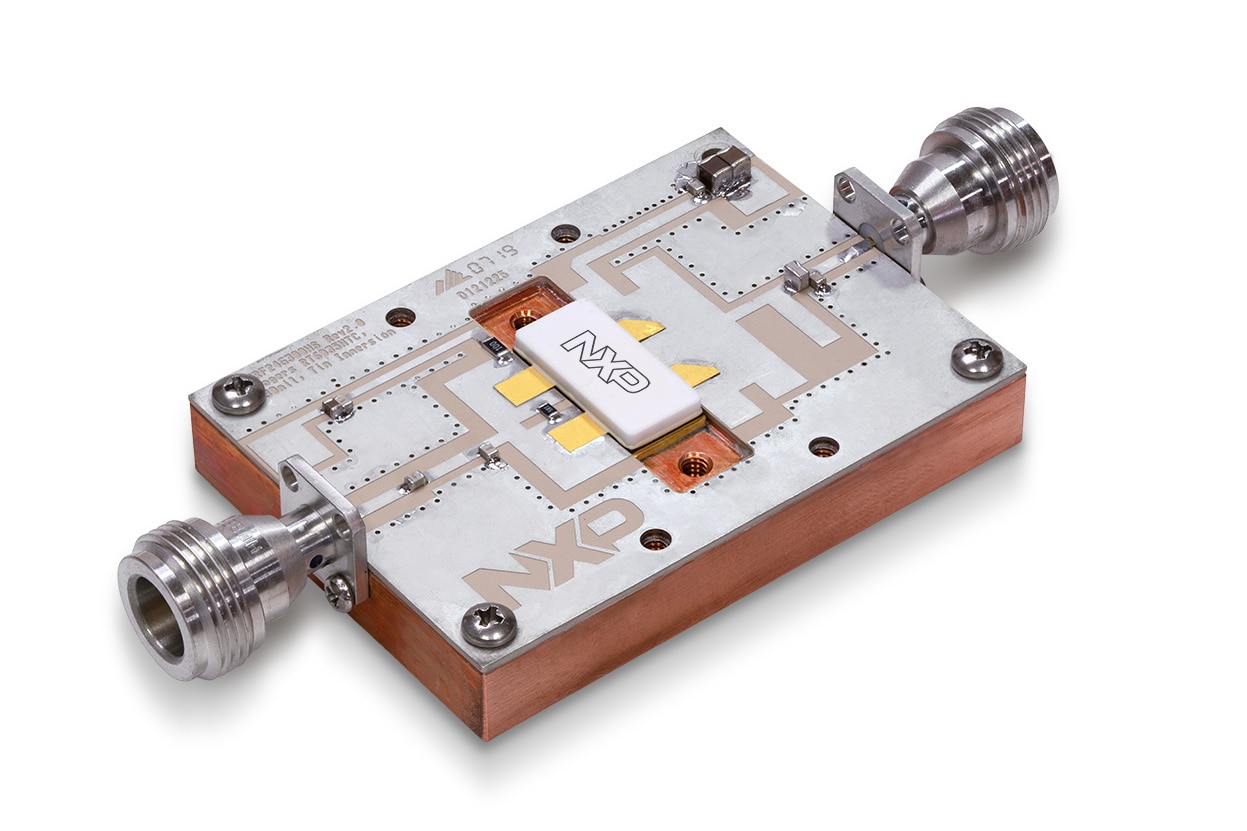

In 2400-2500 MHz MRF24G300HS reference circuit, VDD = 48 Vdc, VGS(A+B) = –5 Vdc (1)
Frequency
(MHz)		 Signal Type Pin
(W)		 Pout
(W)		 Gps
(dB)		 ηD
(%)
2400CW10.033615.370.4
245010.033215.273.0
250010.030714.974.4
1. All data measured in fixture with device soldered to heatsink.

Load Mismatch/Ruggedness

Frequency
(MHz)		 Signal Type VSWR Pin
(W)		 Test
Voltage		 Result
2450Pulse
(100 µsec, 20% Duty Cycle)		> 20:1
at All Phase Angles		12.6 Peak55No Device Degradation
