802.11n Wi-Fi® Tower System Module (Redpine Signals)

TWR-WIFI-RS2101: 802.11n Wi-Fi® Tower System Module (Redpine Signals) ARCHIVED

Overview

This development board is no longer in production and not recommended for future designs. Please visit Tower^® System Modular Development Board Platform for other options.

The TWR-WIFI-RS2101 peripheral module enables easy-to-use 802.11n Wi-Fi connectivity for your application development using the Tower System. This FCC-certified module comes with complimentary MQX™ software and enables you to quickly go from the lab to production with the same Wi-Fi hardware.

The on-board RS9110-N-11-21 Connect-io-n™ Wi-Fi module from Redpine Signals features embedded firmware to provide a self-contained 802.11n WLAN solution for a variety of applications. This peripheral module is designed to be combined and used with other MCU and peripheral modules in the Tower System.

Archived content is no longer updated and is made available for historical reference only.

MoreLess

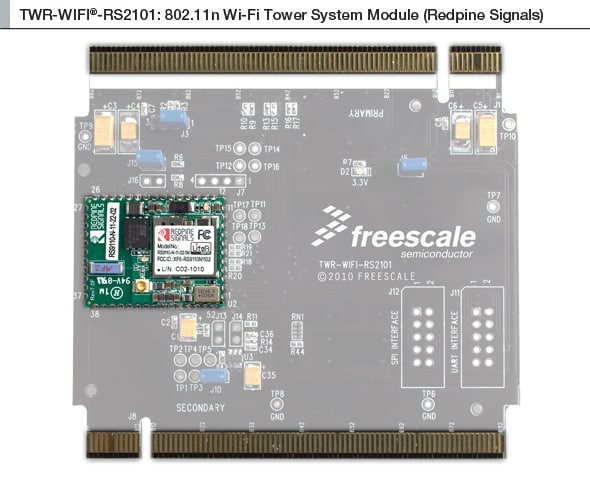

NXP<sup>®</sup> Tower<sup>®</sup> TWR-WIFI-RS2101 Evaluation Board

Specifications

Technical and Functional Specifications

RS9110-N-11-21 Wi-Fi module from Redpine Signals
Compliant to 802.11b/g and single stream 802.11n
Supports all Wi-Fi client security protocols (WEP, WPA and WPA2)
Reference design certified for FCC/IC/CE
RoHS compliant
Does not require any WLAN driver on the host processor
Interfaces to MCU via SPI, UART
Terminates SLIP connections and offers transparent serialmodem functionality
Integrated antenna, frequency reference and low-frequency clock
Ultra-low-power operation with power save modes
Ad-hoc and infrastructure modes for maximum deployment flexibility
Single supply 3.1 to 3.6V operation

Documents and Software

Design Resources ( 1 )

Design Tools & Files ( 1 )
- Printed Circuit Boards and Schematics ( 1 )

Documents

User Guide ( 1 )

User Manual for TWR-WIFI-RS2101^{(REV
1.0
)}

Tower^® System 802.11n Wi-Fi Module - User Manual
- PDF
- 223.4 kB
- 15 Jul 2010
- TWRWIFIRS2101_UM
- [ English ]

Quick Reference Guide ( 1 )

Quick Start Guide for TWR-WIFI-RS2101^{(REV
0
)}

Tower^® System 802.11n Wi-Fi Module - Quick Start Guide
- PDF
- 317.6 kB
- 12 Aug 2010
- TWRWIFIRS2101_QSG
- [ English ]

Supporting Information ( 3 )

FSL RedPine release notes^{(REV
1
)}
- PDF
- 305.4 kB
- 12 Oct 2010
- FSL_REDPINE_RELEASE_NOTES
- [ English ]
Tower Mechanical Drawing^{(REV
E
)}

Tower^® Mechanical Drawing
- PDF
- 228.4 kB
- 21 May 2012
- 900-76126_TWR-MECHDRW
- [ English ]
TWR-WIFI-RS2101 Lab Guide^{(REV
1.1
)}

Lab Guide for TWR-WIFI-RS2101 for use with TWR-MCF5225X and MQX
- PDF
- 898.1 kB
- 29 Nov 2010
- TWRWIFIRS2101LAB
- [ English ]

Design Resources

Design Tools & Files ( 1 )

Printed Circuit Boards and Schematics ( 1 )

TWR-WIFI-RS2101 Schematics^{(REV
2.0
)}

TWR-WIFI-RS2101 Schematics
- PDF
- 95.4 kB
- 2010-10-22 00:00:00
- TWR-WIFI-RS2101-SCHEMATICS
