945 MHz, 60 W, 26 V Lateral N-Channel Broadband RF Power MOSFETs

Overview

Archived content is no longer updated and is made available for historical reference only.

MRF9060LR1 Not Recommended for New Design. Possible Replacement Part: MRFE6S9045NR1, MRFE6S9060NR1.

MRF9060LSR1 in Lifetime Buy. Last Order Date: 03 OCT 08. Last Ship Date: 14 MAY 09. Possible Replacement Part: MRFE6S9060NR1.

The MRF9060LR1 and MRF9060LSR1 are designed for broadband commercial and industrial applications with frequencies up to 1000 MHz. The high gain and broadband performance of these devices make them ideal for large–signal, common–source amplifier applications in 26 volt base station equipment.

MoreLess

Features

Typical Two–Tone Performance at 945 MHz, 26 Volts
Output Power: 60 Watts PEP

Power Gain: 17 dB

Efficiency: 40%

IMD: –31 dBc
Capable of Handling 10:1 VSWR, @ 26 Vdc, 945 MHz, 60 Watts CW Output Power
Integrated ESD Protection
Designed for Maximum Gain and Insertion Phase Flatness
Excellent Thermal Stability
Characterized with Series Equivalent Large–Signal Impedance Parameters
Low Gold Plating Thickness on Leads. L Suffix Indicates 40µ″ Nominal.
RoHS Compliant
In Tape and Reel. R1 Suffix = 500 Units per 32 mm, 13 inch Reel.

MoreLess

Features

Typical Two–Tone Performance at 945 MHz, 26 Volts
Output Power: 60 Watts PEP

Power Gain: 17 dB

Efficiency: 40%

IMD: –31 dBc
Capable of Handling 10:1 VSWR, @ 26 Vdc, 945 MHz, 60 Watts CW Output Power
Integrated ESD Protection
Designed for Maximum Gain and Insertion Phase Flatness
Excellent Thermal Stability
Characterized with Series Equivalent Large–Signal Impedance Parameters
Low Gold Plating Thickness on Leads. L Suffix Indicates 40µ″ Nominal.
RoHS Compliant
In Tape and Reel. R1 Suffix = 500 Units per 32 mm, 13 inch Reel.

Data Sheets

Application Notes

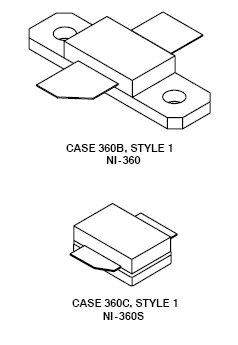

NI-360, NI-360S Package Image
