DSP56004: Audio DSP ARCHIVED

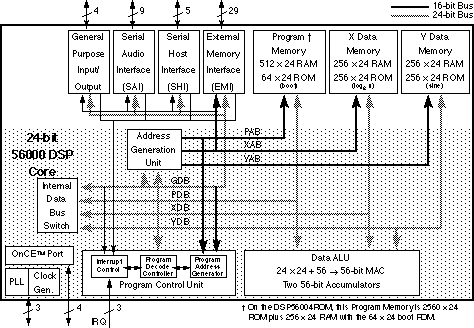

• Efficient, object code compatible, 24-bit 56000 family DSP engine
• Up to 33 Million Instructions Per Second (MIPS) - 30.3 ns instruction cycle at 66 MHz
• Up to 180 Million Operations Per Second (MOPS) at 66 MHz
• Highly parallel instruction set with unique DSP addressing modes
• Two 56-bit accumulators including extension byte
• Parallel 24 x 24-bit multiply-accumulate in 1 instruction cycle (2 clock cycles)
• Double precision 48 x 48-bit multiply with 96-bit result in 6 instruction cycles
• 56-bit addition/subtraction in 1 instruction cycle
• Fractional and integer arithmetic with support for multiprecision arithmetic
• Hardware support for block-floating point Fast Fourier Transforms (FFT)
• Hardware nested DO loops
• Zero-overhead fast interrupts (2 instruction cycles)
• Four 24-bit internal data buses and three 16-bit internal address buses for simultaneous accesses to one program and two data memories


Memory

Table 1 lists the memory configurations of the DSP56004.

• On-chip Harvard architecture permitting simultaneous accesses to program and two data memories
• 512 x 24-bit on-chip Program RAM and 64 x 24-bit bootstrap ROM

  • On the DSP56004ROM this program memory is replaced with 2560 x 24-bit on-chip Program ROM*, 256 x 24-bit on-chip Program RAM, and the 64 x 24-bit bootstrap ROM
• Two 256 x 24-bit on-chip data RAMs
• Two 256 x 24-bit on-chip data ROMs containing sine and logarithm tables

  • On the DSP56004ROM these data ROMs contain developer-provided data
• Bootstrap loading from Serial Host Interface or External Memory Interface
• Proprietary bootstrap for securing Program ROM contents



  DSP56004 Memory Configurations

  Part Type	Program		X Data		Y Data
  	ROM	RAM	ROM	RAM	ROM	RAM
  DSP56004	none	512	256 log2X	256	256 sine	256
  DSP56004ROM	2560*	256	256*	256	256*	256

Word width is 24-bits.

Peripheral and Support Circuits

• Serial Audio Interface (SAI) includes two receivers and three transmitters, master or slave capability, and implementation of I2S, Sony, and Matshushita audio protocols; two sets of SAI interrupt vectors
• Serial Host Interface (SHI) features single master capability, 10-word receive FIFO, and support for 8-, 16- and 24-bit words
• External Memory Interface (EMI), implemented as a peripheral supporting:
• Page-mode DRAMs (one or two chips): 64 k x 4, 256 k x 4, and 4 M x 4 bits
• SRAMs (one to four): 256 k x 8 bits
• Data bus may be 4 or 8 bits wide
• Data words may be 8, 12, 16, 20, or 24-bits wide
• Four dedicated, independent, programmable General Purpose I/O (GPIO) lines
• On-chip peripheral registers memory mapped in data memory space
• Three external interrupt request pins
• On-Chip Emulation (OnCE^TM) port for unobtrusive, processor speed-independent debugging
• Software-programmable, Phase Lock Loop-based (PLL) frequency synthesizer for the core clock
• Power-saving Wait and Stop modes
• Fully static, HCMOS design for operating frequencies from 40, 50, and 66 MHz down to DC
• 80-pin plastic Quad Flat Pack surface-mount package; 14 x 14 x 2.45 mm; 0.65 mm lead pitch
• Completely pin-compatible with the DSP56007 for easy upgrades
• 5 V power supply

The DSP56004ROM is a ROM-based version of the RAM-based DSP56004. The DSP56007 is a pin-compatible version of the DSP56004 with a different memory configuration.
