PCK2021DL: CK00 (100/133 MHz) spread spectrum differential system clock generator ARCHIVED

Overview

Archived content is no longer updated and is made available for historical reference only.

The PCK2021 is a clock synthesizer/driver for a Pentium III^TMand other similar processors.

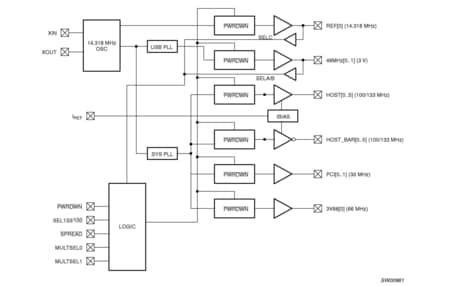

The PCK2021 has six differential pair CPU current source outputs, two 33 MHz outputs, one 3V66 output, and two 48 MHz clocks which can be disabled on power-up, and one 3.3 V reference clock at 14.318 MHz which can also be disabled on power-up.

The part possesses a dedicated power-down input pin for power management control. This input is synchronized on chip, and ensures glitch-free output transitions. In addition, the part can be configured to disable the 48 MHz outputs for lower power operation and an increase in the performance of the functioning outputs. The REF and PCI outputs can also be disabled for the highest performance of the Host outputs.

MoreLess

Features

3.3 V operation
Six differential CPU clock pairs
Two PCI clocks at 33 MHz and one 3V66 clock
Two 48 MHz clocks at 3.3 V
One 14.318 MHz reference clock
Power management control pins
Host clock jitter less than 200 ps cycle-to-cycle
Host clock skew less than 150 ps pin-to-pin
Spread Spectrum capability
Optimized frequency and spread spectrum performance

MoreLess

Features

3.3 V operation
Six differential CPU clock pairs
Two PCI clocks at 33 MHz and one 3V66 clock
Two 48 MHz clocks at 3.3 V
One 14.318 MHz reference clock
Power management control pins
Host clock jitter less than 200 ps cycle-to-cycle
Host clock skew less than 150 ps pin-to-pin
Spread Spectrum capability
Optimized frequency and spread spectrum performance
