IEEE1588DEMOSW: ColdFire IEEE1588 PTP Demo SW ARCHIVED

Overview

Archived content is no longer updated and is made available for historical reference only.

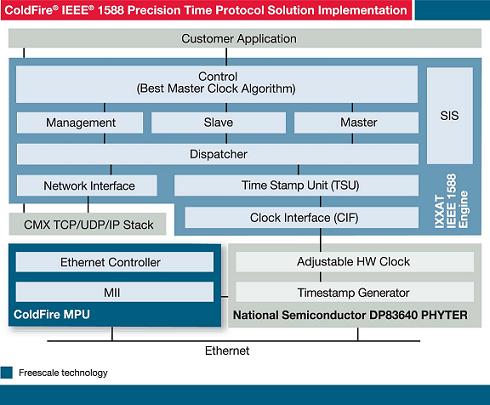

NXP^® Semiconductors has aligned with National Semiconductor, IXXAT Automation and CMX Systems to provide a comprehensive hardware and software solution to support the IEEE^® 1588 Precision Time Protocol (PTP). The hardware components comprise a ColdFire^® microprocessor unit (MPU) and the new National Semiconductor DP83640 PHYTER&^®—an Ethernet PHY transceiver with PTP support. The software components include the IEEE 1588 software stack, supplied by IXXAT and ported to the ColdFire MPU supporting the Precision Phyter, and the TCP/IP stack, supplied by CMX Systems. This solution can be combined with any ColdFire processor, but NXP is currently offering the M5234BCCKIT, a cost-effective ColdFire MCF5234 evaluation system, which incorporates the DP83640 PHYTER allowing early development of an IEEE 1588 solution.

MoreLess

Specifications

Technical and Functional Specifications

A demonstration of the IEEE1588 Precision Time Protocol (PTP) implemented on a ColdFire^® Ethernet enabled device
Highly accurate time stamping occurring with tens of nanoseconds precision
Integration of the CMX TCP/IP Stack
Integration of IXAAT’s IEEE 1588 PTP Protocol Software Stack
Integration of National Semiconductors DP83640 PHYTER hardware

Documents and Software

Documents ( 1 )

Application Note Software ( 1 )

Documents

Application Note Software ( 1 )

IEEE 1588 Implementation on a ColdFire^® Processor^{(REV
0
)}

This application note describes implementation of the IEEE® 1588 Precision Time Protocol (PTP) on the ColdFire® processor. The solution uses a hardware platform comprising NXPs's ColdFire family MCF5234 microprocessor and the National Semiconductor DP83640 PHYTER® High Precision - IEEE 1588 Single Port Fast Ethernet Transceiver that supports hardware time-stamping of Ethernet packets. The demo application uses the new M5234BCC low cost evaluation board. The demo software uses the IEEE 1
- PDF
- 511.3 kB
- 06 Jun 2008
- AN3625
- [ English ]
