Demonstration Board for 8-bit SF family

DEMO9S08SF4
Archived
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

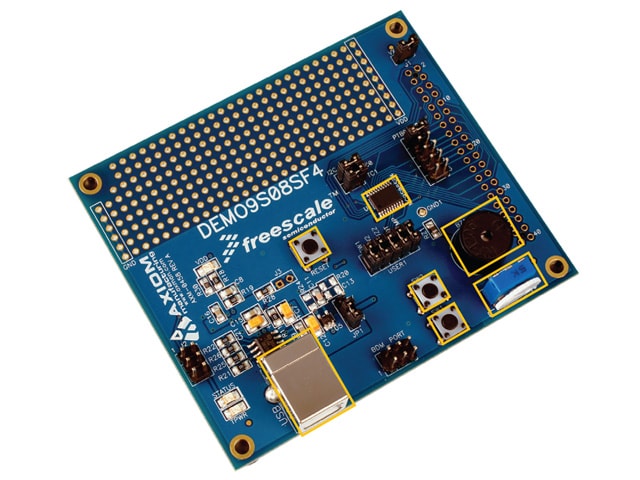

Roll over image to zoom in

The DEMO9S08SF4 demonstration board supports the MC9S08SF4 microcontroller. It provides quick and easy application development with integrated open-source sample software tools and examples.

Product Details

Supported Devices

Processors and Microcontrollers

8-Bit S08 MCUs

  • S08SF: 8-bit Motor Control SF MCUs

Features

Microcontroller

    MC9S08SF4, 20 TSSOP

  • 4K Bytes Flash; 128 Bytes RAM

Connectivity

  • Integrated Open-Source, USB-BDM
  • BDM_PORT header for external BDM cable support
  • MCU_PORT pin header for access to MCU IO signals

Power Management

  • Power from USB-BDM or MCU_PORT connector

User Components Provided

  • 3 Push Switches; 2 User, 1 Reset
  • 5 LED Indicators; 2 User, VDD, STATUS, TPWR
  • 5K ohm POT w /LP Filter
  • 2300 Hz Piezo Buzzer w/ External Drive Circuit
